AP GRE Tunnel Options
General Options for Zones, AP Groups, and Individual APs
| AP Configuration / Configuration Level | Zone | AP Groups | Individual AP | |
|---|---|---|---|---|
| AP GRE Tunnel Options | Ruckus GRE Profile | √ | x | x |
| Ruckus GRE Forwarding Broadcast | √ | √ | √ | |
| SoftGRE Profiles | √ | x | x | |
| IPsec Tunnel Mode | √ | x | x |
Ruckus GRE Profile:
Select the RUCKUS GRE profile to be used. You can use the drop-down menu to select
the
default profile or any existing profile, or you can click %20Access%20Points%20and%20Switch%20Management%20Guide,%207.1.0_v3_GUID-27662C2D-2A18-49E9-B6DA-1E1B1F29F636/icon-SZ_plus_black_25px=GUID-34D67AFF-CABA-40BC-A487-A9DCEE1E502C=1=en-US=Low.png){kind=icon}
to create
a newly customized profile. Click %20Access%20Points%20and%20Switch%20Management%20Guide,%207.1.0_v3_GUID-27662C2D-2A18-49E9-B6DA-1E1B1F29F636/icon-SZ_edit_black_25px=GUID-5B440AAF-8D56-4BE6-BCEA-6B773FFE3037=1=en-US=Low.png){kind=icon}
to edit
any existing profile without leaving the configuration context.
RUCKUS GRE Forwarding Broadcast: Toggle the switch to ON to allow broadcast traffic forwarding within the tunnel. Note that ARP and DHCP packets are always forwarded regardless of this selection.
SoftGRE Profiles: Optionally, click Select to add one or more preconfigured SoftGRE profiles to be used by the APs. Optionally, enable AAA Affinity for each of the selected SoftGRE profiles.
IPsec Tunnel Mode: Optionally, enable IPsec either for RUCKUS GRE or SoftGRE tunnels.

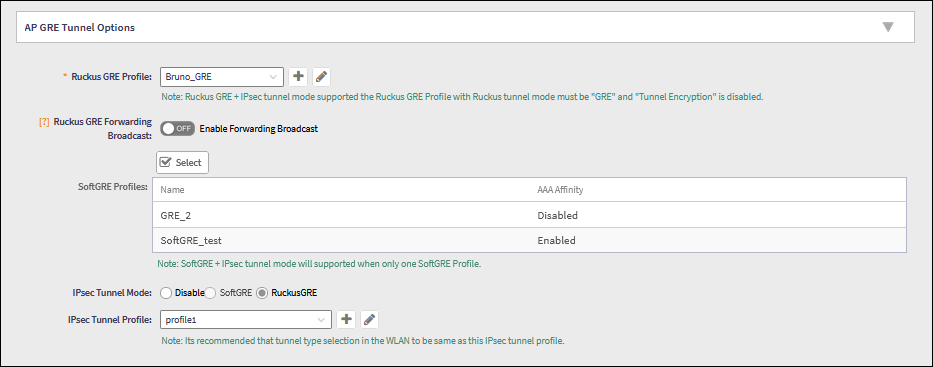

%20Access%20Points%20and%20Switch%20Management%20Guide,%207.1.0_v3_GUID-27662C2D-2A18-49E9-B6DA-1E1B1F29F636/AP%20GRE%20Tunnel%20Options=GUID-8A82366C-47AA-436F-9900-D91286067E01=1=en-US=Low.png "AP GRE Tunneling Options")
