Creating an AP Group

To create an AP Group, perform the following:

1. Click Network > Wireless > Access Points.

   This displays Access Points page.

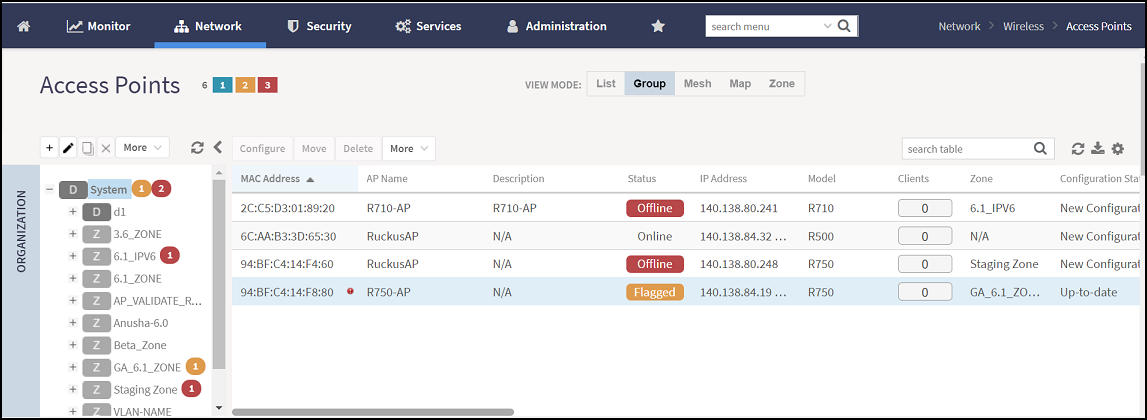

   Access Point Page


2. From the System tree hierarchy, select the zone and click . The Create AP Group page is displayed.
3. Enter the details as explained in Configuring Access Points.
   Note: You can also edit the configuration of the default AP Group by selecting the AP Group and clicking the icon.
4. Click OK.

Note: You can also edit, clone or delete an AP Group by selecting the options Edit , Clone or Delete respectively, from the Access Points page.
