Parts List

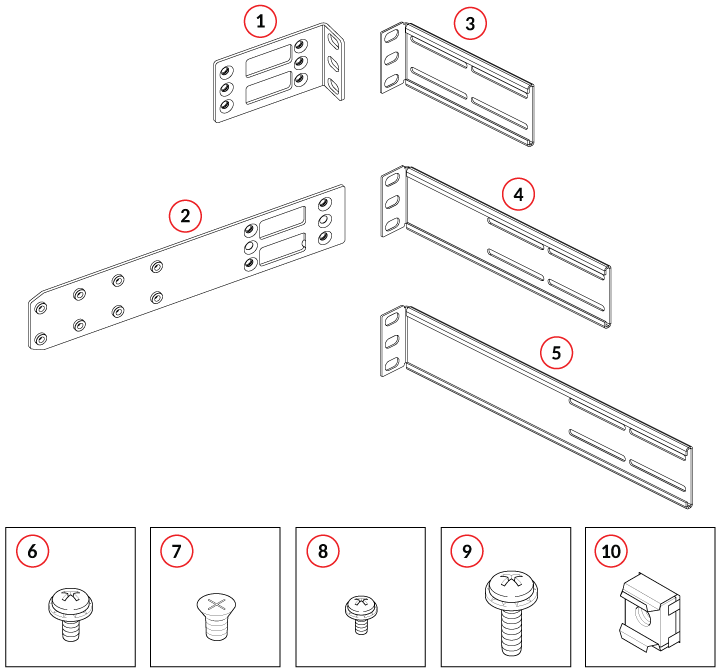

The parts provided in the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks (XBR-R000295) are illustrated in the following figure.

Items in the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks (XBR-R000295)

  1. Front brackets (2)
  2. Bracket extensions (2)
  3. Rear brackets, short (2)
  4. Rear brackets, medium (2)
  5. Rear brackets, long (2)
  6. Screw, 8-32 x 5/16-in., panhead Phillips (8)
  7. Screw, 8-32 x 5/16-in., flathead Phillips (16)
  8. Screw, 6-32 x 1/4-in., panhead Phillips (8)
  9. Screw, 10-32 x 5/8-in., panhead Phillips (8)
  10. Retainer nut, 10-32 (8)

Ensure that the items listed and illustrated are included in the kit. Note that not all parts may be used with certain installations depending on the device type.

Caution: Use the screws specified in the procedure. Using longer screws can damage the device.
