Mounting on a Two-Post Rack

The devices use stationary mounting when mounted in a rack.

Danger: Make sure the rack housing the device is adequately secured to prevent it from becoming unstable or falling over.
Caution: Ensure that adequate ventilation and airflow is provided for the system. A 4.5 cm (1.77 in) clearance is recommended above and below the device and 8 cm (3.15 in) clearance is recommended on each side.
Note: You need a #2 Phillips screwdriver for rack mount installation.
Note: The ICX 7150-C12P, ICX 7150-C08P, and ICX 7150-C08PT compact device require the ICX7000-C12-RMK rack-mount kit which is optionally orderable.
Note: The ICX 7150-C10ZP compact devices require the ICX 7150-C10ZP-RMK rack mount kit, which is optionally orderable.

Complete the following steps to mount devices in a rack.

  1. The kit contains two L-shaped mounting brackets and six sink-head screws.
  2. Using a Phillips screwdriver, attach the mounting brackets to the sides of the device using six sink-head screws.

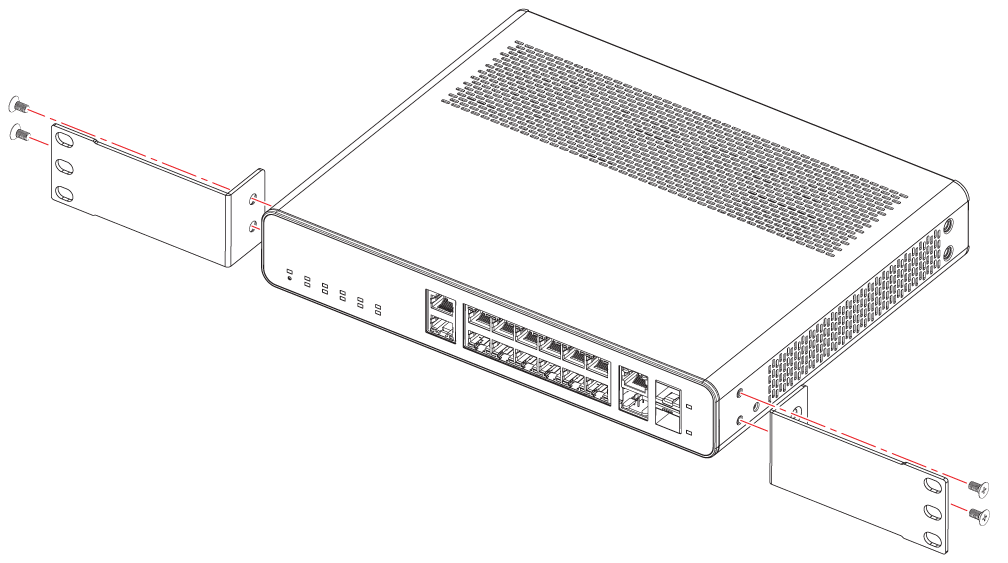

    Attaching the Mounting Brackets for a Compact Device

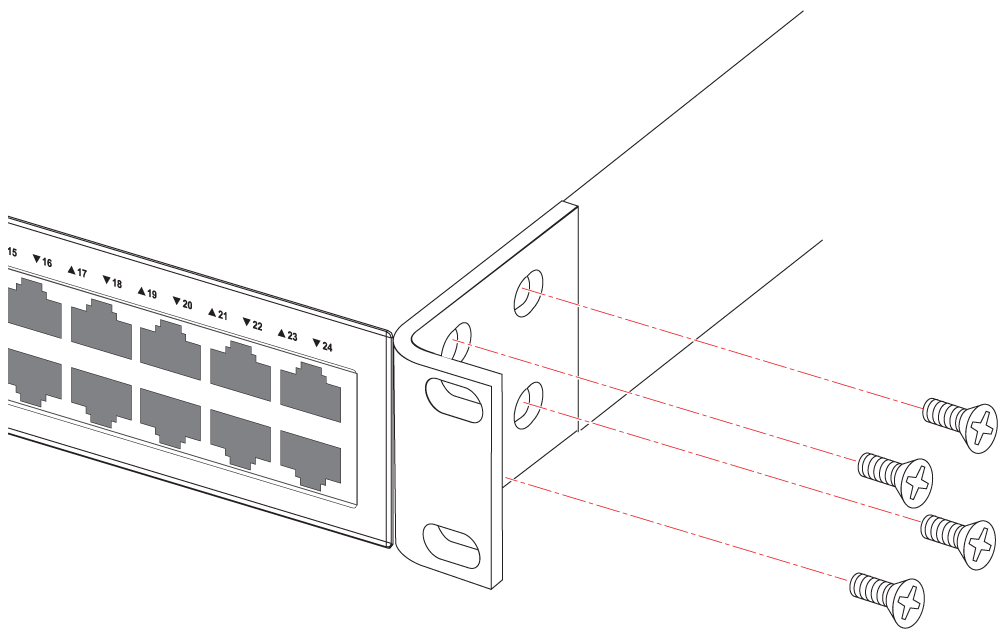

    Attaching the Rack-Mounting Brackets for 24-port and 48-port Devices

  3. The two-post rack kit contains four rack-mounting screws and four cage nuts.
  4. Insert the cage nuts in the two-post rack where you want to mount the device.
  5. Using a Phillips screwdriver, mount the device in a two-post rack using four rack-mounting screws.

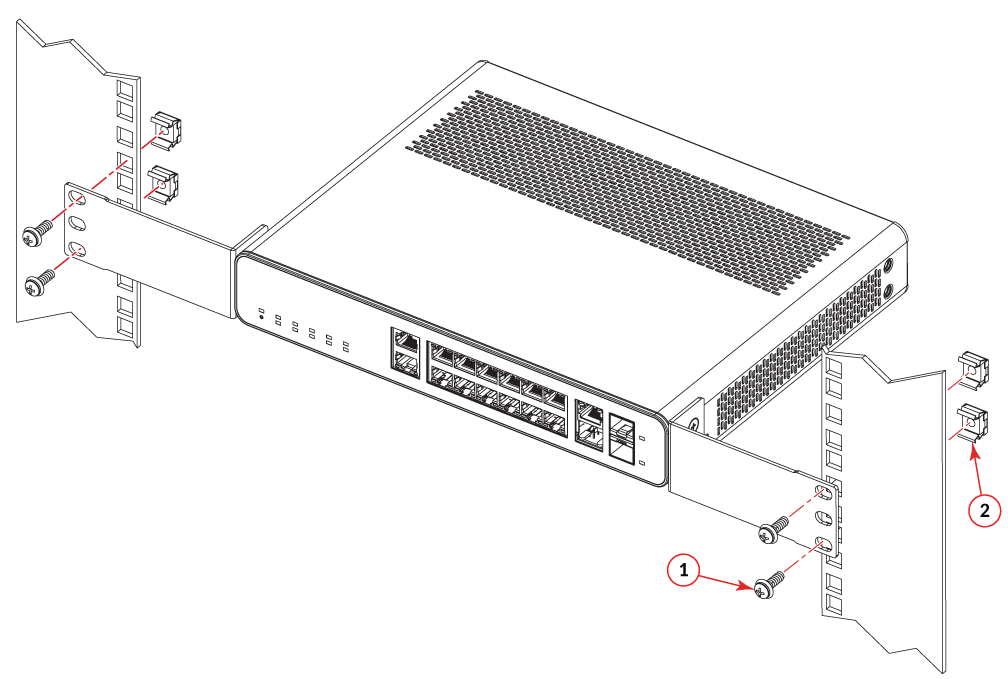

    Installing a Compact Device in a Two-post Rack

    1. Rack-mounting screws 2. Cage nuts

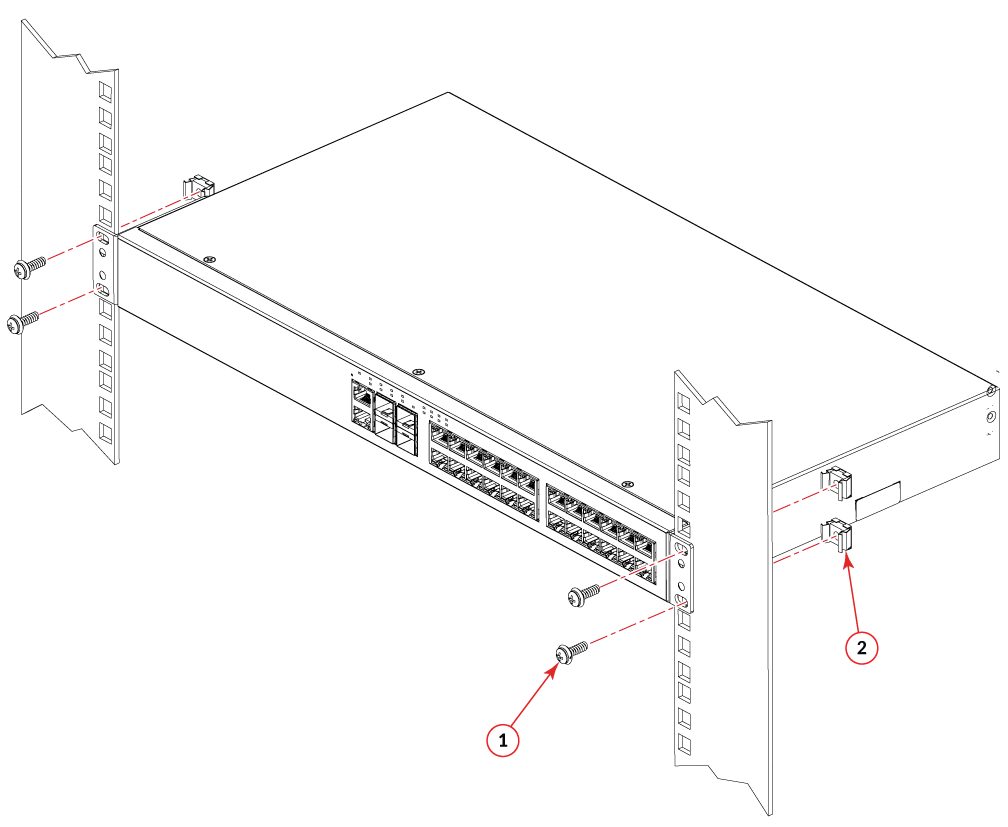

    Installing a 24-port or 48-port device in a two-post rack

    1. Rack-mounting screws 2. Cage nuts
  6. If installing multiple devices, mount them in the rack, one below the other with the heaviest device at the bottom and lightest device on the top.
