Mounting on a Wall Using the Wall-Mount Brackets

Note: You need a #2 Phillips screwdriver, a hammer, and a drill for wall mount installation.
Note: Mount the devices that have fans so that there is enough space for ventilation on the air-intake and air-exhaust sides to maintain the ambient operating temperature.
RUCKUS recommends that you install the 24P, 48P, and 48PF models with the port-side down to maintain the ambient temperature.

Danger: This equipment is suitable for mounting on concrete or other noncombustible surfaces only.

Note: The hardware device illustrated in this procedure is only for reference and may not depict the actual device that you are installing.

Complete the following steps to mount the device to a wall.

  1. Using a Phillips screwdriver, attach the wall mount brackets to the sides of the device using four #6-32 sink-head screws on each side.
    Note: The ICX 7150-C08PT model requires M4L8 pan-head screws for attaching the brackets.

    Attaching the Wall-Mount Brackets to a 24-port Device

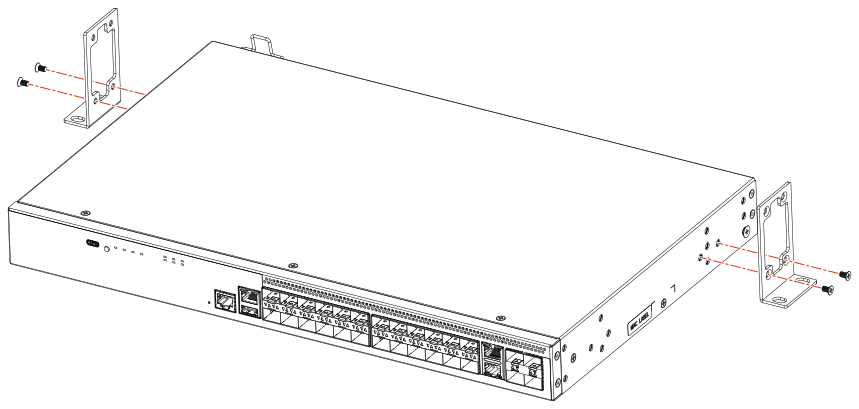

    Attaching the Wall-Mount Brackets to a ICX 7150-24 or ICX 7150-24F

    Attaching the Wall-Mount Brackets to a 48-port Device

  2. Drill two holes on the wall where you want to mount the device.
  3. Hammer two wall-mount anchors into the holes on the wall.
  4. Use the two wall-mount screws to fasten the device to the wall-mount anchors.

    Wall-Mounting a 24-port Device with Port-side Up

    1. Drilled holes 2. Wall-mount anchors
    3. Wall-mount screws

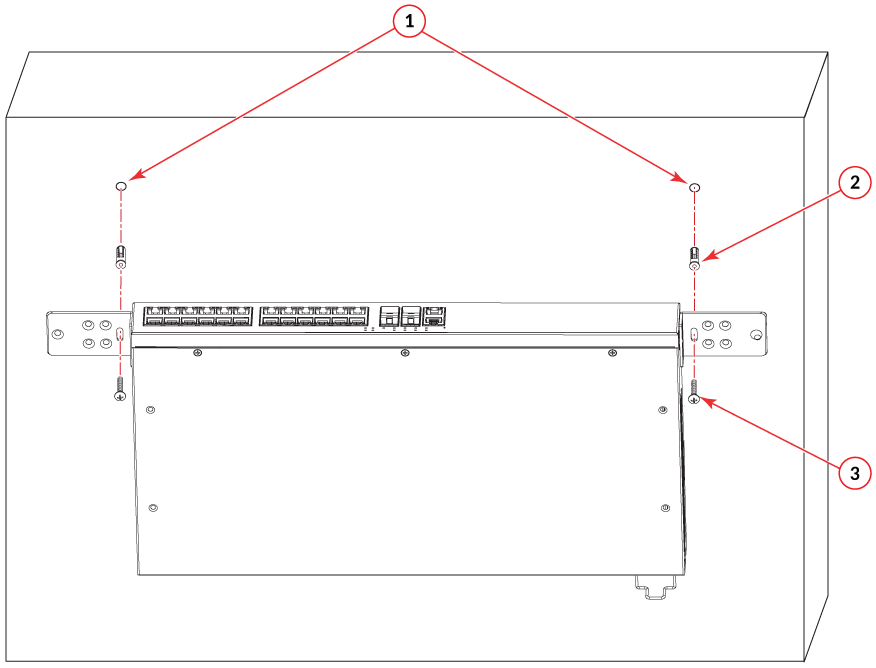

    Wall-Mounting a 48-port Device with Port-side Down

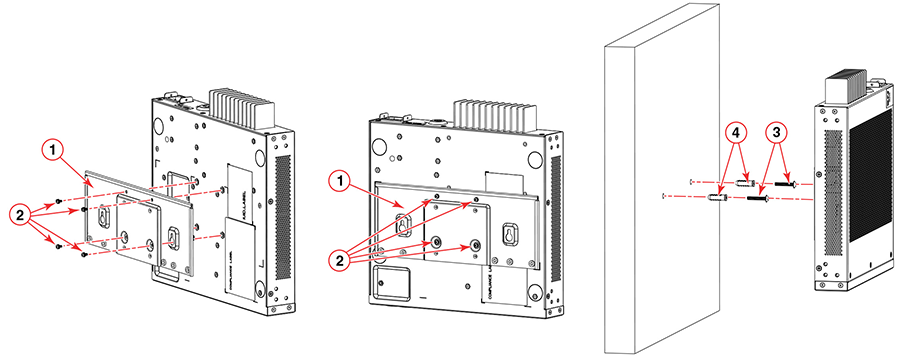

    Wall-Mounting an ICX 7150-C08PT Device Port-side Down

    1. Using a Phillips screwdriver, attach the wall-mount kit to the back of the device using four M3 screws.
    2. Drill two holes on the wall where you want to mount the device.
    3. Hammer two wall-mount anchors into the holes on the wall.

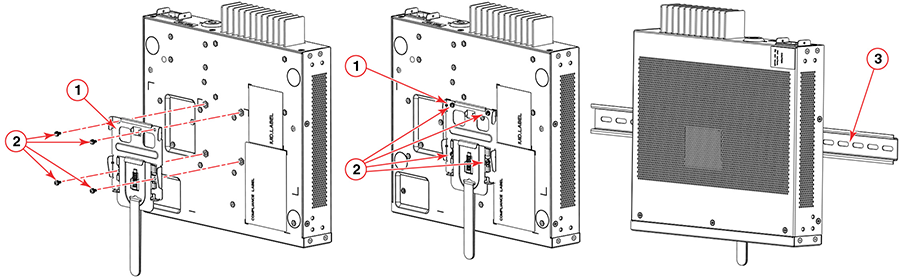

    Wall-Mounting an ICX 7150-C08PT Device in the DIN Rail

    1. Using a Phillips screwdriver, attach the DIN-mount kit to the back of the device using four M3 screws.

    2. To install device on DIN rail, follow the procedure for Mounting the compact device on a wall.

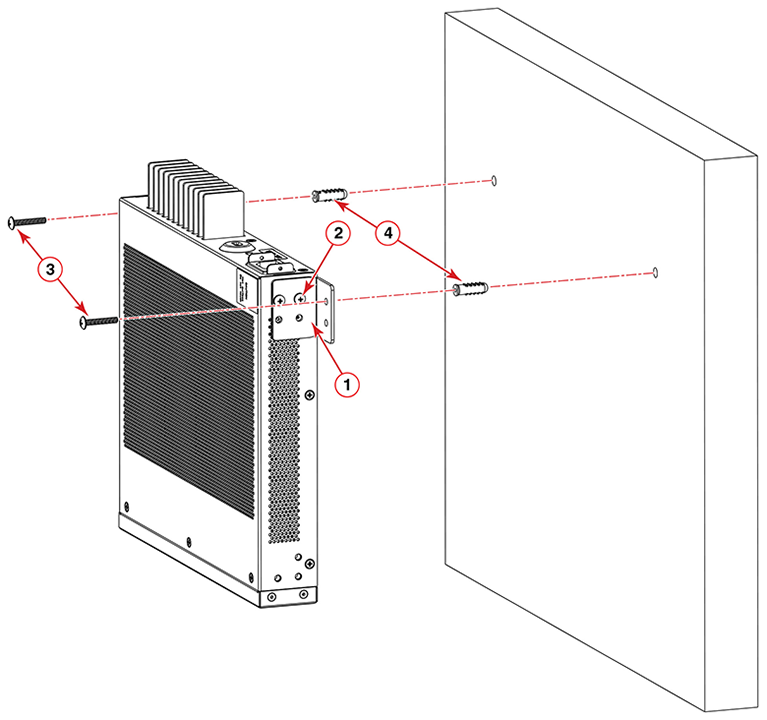

    Wall-Mounting an ICX 7150-C08PT Device Port-side Down

    1. Wall-mount brackets 3. Wall-mount screws
    2. M4L8 Pan-head screws 4. -mount anchors
Parent topic: Mounting the Device
