Interpreting Port-side LEDs

After you install the network cables, you can observe certain LEDs to determine if the network connections are functioning properly. The tables in this section outline the state of each LED, the status of the hardware, and any recommended action.

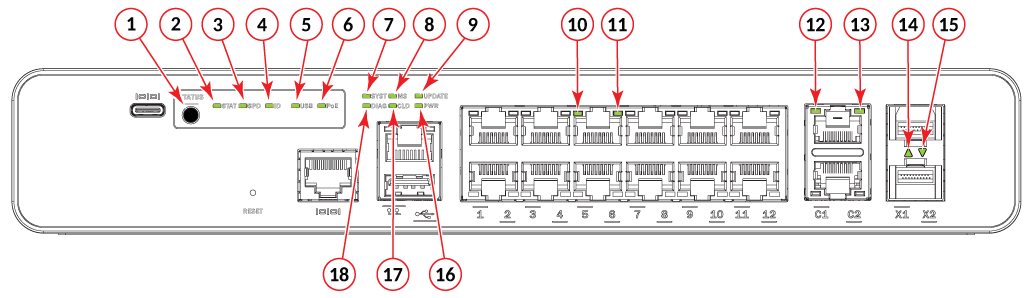

Port-side LEDs of ICX 7150-C12P and ICX 7150-C12P-ES

  1. Port status mode selection button
  2. Port link status mode LED
  3. Port speed status mode LED
  4. Member ID status mode LED
  5. USB status mode LED
  6. PoE status mode LED
  7. System Status LED
  8. Master/Slave status LED
  9. Software update status LED
  10. RJ-45 port 5 RX/TX activity LED (if blinking indicates RX/TX activity)
  11. PoE LED
  12. RJ-45 uplink port C1 status LED
  13. RJ-45 uplink port C1 RX/TX activity LED
  14. SFP+ uplink port X1 status LED (if blinking indicates RX/TX activity)
  15. SFP+ uplink port X2 status LED (if blinking indicates RX/TX activity)
  16. Power status LED
  17. Cloud/On-premises-SmartZone management status LED
    updated naming
  18. Diagnostics status LED

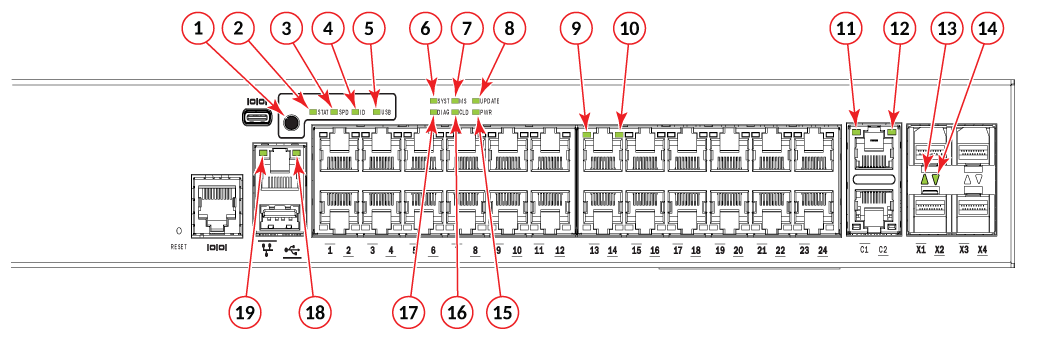

Port-side LEDs of ICX 7150-24, ICX 7150-24P, and ICX 7150-24P-ES

  1. Port status mode selection button
  2. Port link status mode LED
  3. Port speed status mode LED
  4. Member ID status mode LED
  5. USB status mode LED
  6. System status LED
  7. Master/Slave status LED
  8. Software update status LED
  9. RJ-45 port 13 RX/TX activity LED (if blinking indicates RX/TX activity)
  10. PoE LED
  11. RJ-45 uplink port C1 status LED
  12. RJ-45 uplink port C1 RX/TX activity LED
  13. SFP+ uplink port X1 status LED (if blinking indicates RX/TX activity)
  14. SFP+ uplink port X2 status LED (if blinking indicates RX/TX activity)
  15. Power status LED
  16. Cloud/On-premises-SmartZone management status LED
    updated naming
  17. Diagnostics status LED
  18. OOB Link status LED (left)
  19. OOB Speed status LED (right)
Note: The ICX 7150-24P has an additional PoE status mode LED.

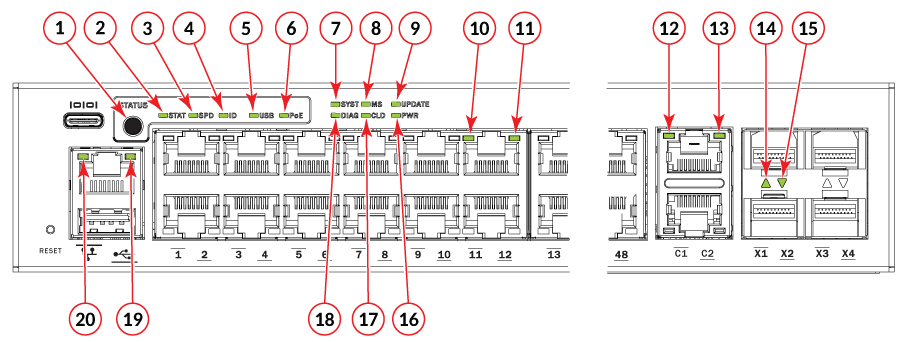

Port-side LEDs of ICX 7150-48, ICX 7150-48PF, ICX 7150-48P, and ICX 7150-48P-ES

  1. Port status mode selection button
  2. Port link status mode LED
  3. Port speed status mode LED
  4. Member ID status mode LED
  5. USB status mode LED
  6. PoE status mode LED
  7. System status LED
  8. Master/Slave status LED
  9. Software update status LED
  10. RJ-45 port 11 RX/TX activity LED (if blinking indicates RX/TX activity)
  11. PoE LED
  12. RJ-45 uplink port C1 status LED
  13. RJ-45 uplink port C1 RX/TX activity LED
  14. SFP+ uplink port X1 status LED (if blinking indicates RX/TX activity)
  15. SFP+ uplink port X2 status LED (if blinking indicates RX/TX activity)
  16. Power status LED
  17. Cloud/On-premises-SmartZone management status LED
    updated naming
  18. Diagnostics status LED
  19. OOB Link status LED (left)
  20. OOB Speed status LED (right)
Note: The ICX 7150-48 does not have the PoE status mode LED.

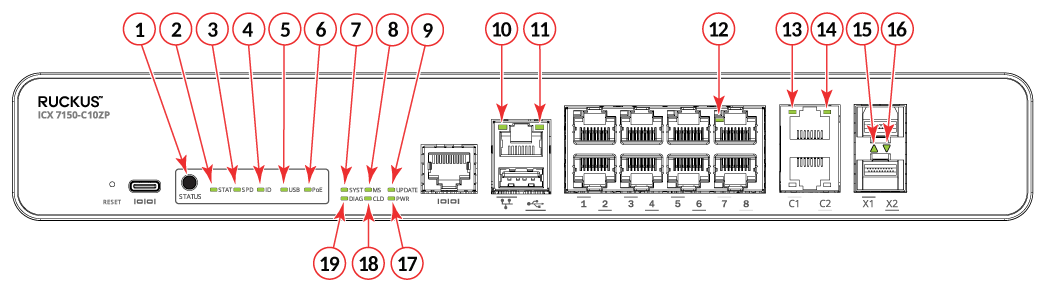

Port-side LEDs of ICX 7150-C10ZP

  1. Port status mode selection button
  2. Port link status mode LED
  3. Port speed status mode LED
  4. Member ID status mode LED
  5. USB status mode LED
  6. PoE status mode LED
  7. System status LED
  8. Master/Slave status LED
  9. Software update status LED
  10. OOB Link status LED (left)
  11. OOB Speed status LED (right)
  12. RJ-45 port 7 RX/TX activity LED (if blinking indicates RX/TX activity)
  13. RJ-45 uplink port C1 status LED
  14. RJ-45 uplink port C1 RX/TX activity LED
  15. SFP+ uplink port X1 status LED (if blinking indicates RX/TX activity)
  16. SFP+ uplink port X2 status LED (if blinking indicates RX/TX activity)
  17. Power status LED
  18. Cloud/On-premises-SmartZone management status LED
    updated naming
  19. Diagnostics status LED

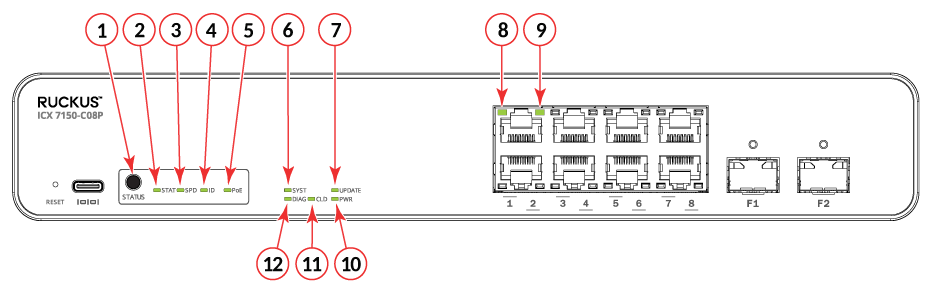

Port-side LEDs of ICX 7150-C08P

  1. Port status mode selection button
  2. Port link status mode LED
  3. Port speed status mode LED
  4. Unit ID status mode LED
  5. PoE status mode LED
  6. System Status LED
  7. Software update status LED
  8. RJ-45 port 2 RX/TX activity LED (if blinking indicates RX/TX activity)
  9. PoE LED
  10. Power status LED
  11. Cloud/On-premises-SmartZone management status LED
    updated naming
  12. Diagnostics status LED

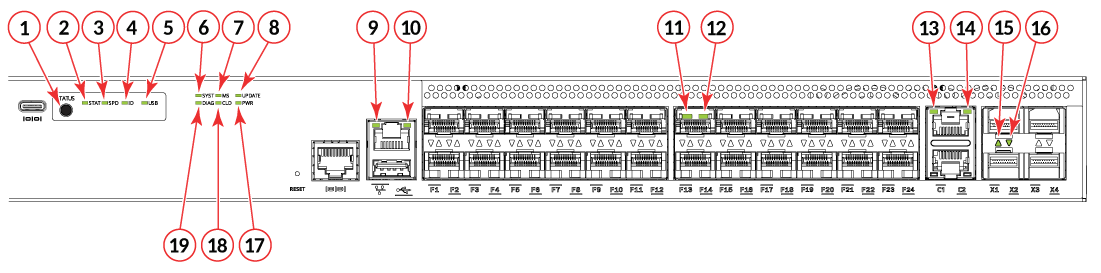

Port-side LEDs of ICX 7150-24F

  1. Port status mode selection button
  2. Port link status mode LED
  3. Port speed status mode LED
  4. Member ID status mode LED
  5. USB status mode LED
  6. System status LED
  7. Master/Slave status LED
  8. Software update status LED
  9. OOB Link status LED (left)
  10. OOB Speed status LED (right)
  11. RJ-45 port 13 RX/TX activity LED (if blinking indicates RX/TX activity)
  12. PoE LED
  13. RJ-45 uplink port C1 status LED
  14. RJ-45 uplink port C1 RX/TX activity LED
  15. SFP+ uplink port X1 status LED (if blinking indicates RX/TX activity)
  16. SFP+ uplink port X2 status LED (if blinking indicates RX/TX activity)
  17. Power status LED
  18. Cloud/On-premises-SmartZone management status LED
  19. Diagnostics status LED

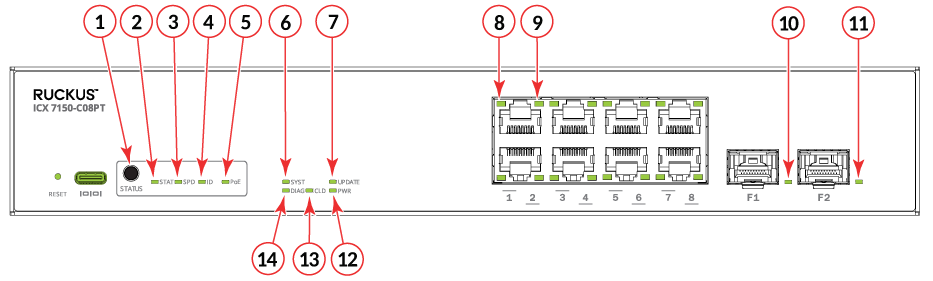

Port-side LEDs of ICX 7150-C08PT

  1. Port status mode selection button
  2. Port link status mode LED
  3. Port speed status mode LED
  4. Unit ID status mode LED
  5. PoE status mode LED
  6. System Status LED
  7. Software update status LED
  8. RJ-45 port 2 RX/TX activity LED (if blinking indicates RX/TX activity)
  9. PoE LED
  10. F1 1G SFP Uplink LED
  11. F2 1G SFP Uplink LED
  12. Power status LED
  13. Cloud/On-premises-SmartZone management status LED
    updated naming
  14. Diagnostics status LED
