Mounting on a Desktop or Flat Surface

Complete the following steps to install the device on a desktop or other flat surface. The device you are installing may look different than the one in the following illustration.

Note: The hardware device illustrated in this procedure is only for reference and may not depict the actual device that you are installing.

Attaching the Adhesive Feet on a Compact Device

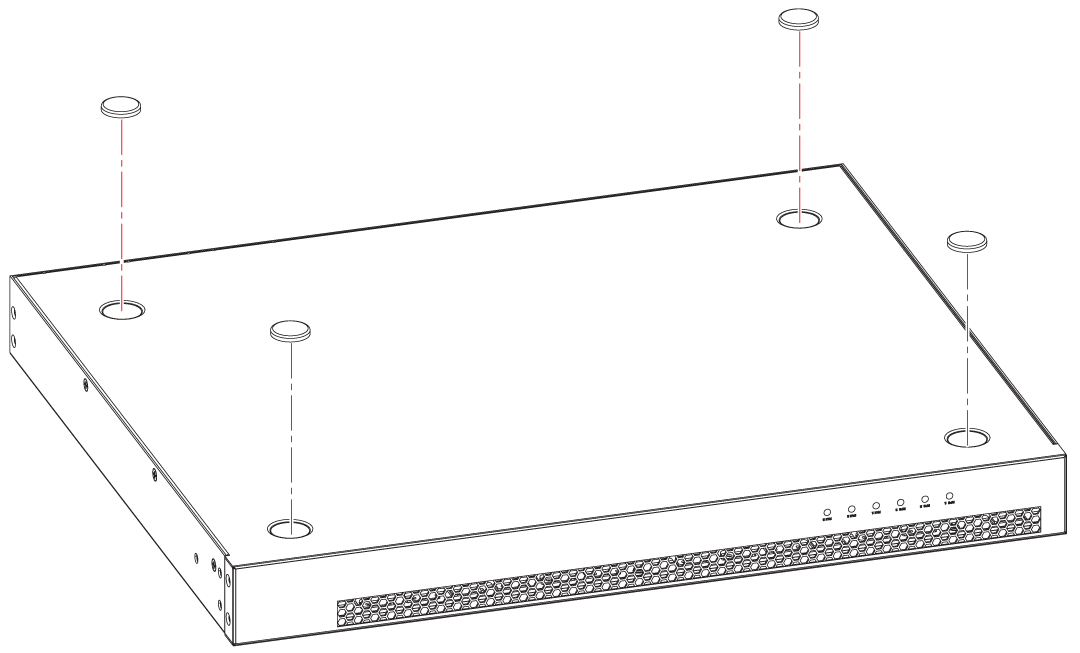

Attaching the Adhesive Feet on a 24-port or 48-port Device

  1. Attach the four adhesive feet to the bottom of the device. If installing multiple devices, attach the adhesive feet to each device.
  2. Set the device on a flat desktop, table, or shelf near an AC power source. Make sure that adequate ventilation is provided for the system. A 7.62 cm (3 in.) clearance is recommended on each side.
  3. If installing multiple devices, place each device squarely on top of the one below. If you have both compact devices and regular devices, place the regular devices at the bottom.
  4. Power on the system.
