MCT Configuration with BGP

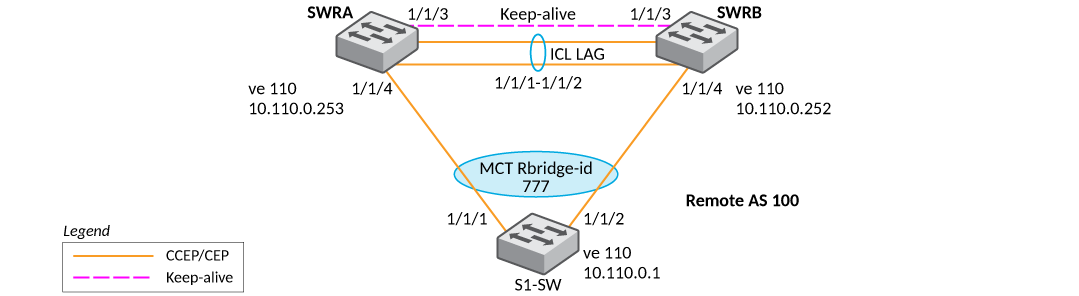

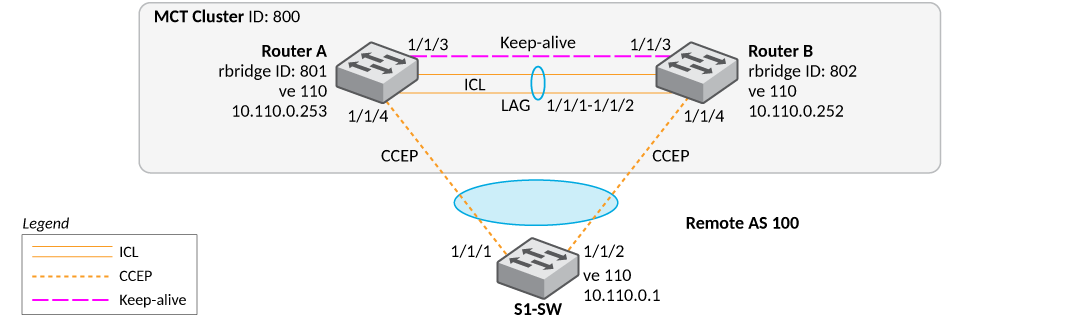

The following examples describe sample MCT configurations with BGP.
BGP Configuration: Router A
This example presents the BGP configuration for the Router A cluster device.
! lag S1-SW dynamic id 1 ports ethe 1/1/4 ! lag ICL static id 8 ports ethe 1/1/1 to 1/1/2 ! vlan 110 tagged lag 1 lag 8 ! interface ve 110 ip address 10.110.0.253 255.255.255.0 ! router bgp local-as 100 neighbor 10.110.0.252 remote-as 100 neighbor 10.110.0.1 remote-as 100 address-family ipv4 unicast !
BGP Configuration: Router B
This example presents the BGP configuration for the Router B cluster device.
! lag S1-SW dynamic id 1 ports ethe 1/1/4 ! lag ICL static id 8 ports ethe 1/1/1 to 1/1/2 ! vlan 110 tagged lag 1 lag 8 ! interface ve 110 ip address 10.110.0.252 255.255.255.0 ! router bgp local-as 100 neighbor 10.110.0.253 remote-as 100 neighbor 10.110.0.1 remote-as 100 address-family ipv4 unicast !
BGP Configuration: S1-SW
This example presents the BGP configuration for the S1-SW device.
! lag lag_s1_sw dynamic id 60 ports ethernet 1/1/1 to 1/1/2 ! vlan 110 by port tagged ethernet lag 60 ! interface ve 110 ip address 10.110.0.1 255.255.255.0 ! router bgp local-as 100 neighbor 10.110.0.253 remote-as 100 neighbor 10.110.0.252 remote-as 100 !
