BGP EVPN Multihoming Configuration Example

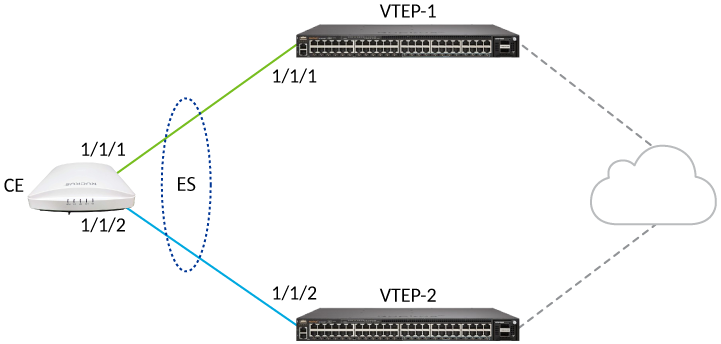

The following illustration shows a typical BGP EVPN multihoming configuration for a Customer Edge (CE) device with the multi-homed nodes VXLAN Tunnel Endpoint (VTEP) 1 and VTEP 2 of an Ethernet Segment (ES).

Both VTEPs are configured identically, sharing the same MAC and port-key combination with the CE. This setup enables the CE to aggregate both connected links. The only configuration required on the CE is the creation of a LAG that connects to both VTEP 1 and VTEP 2.
