Mesh Status

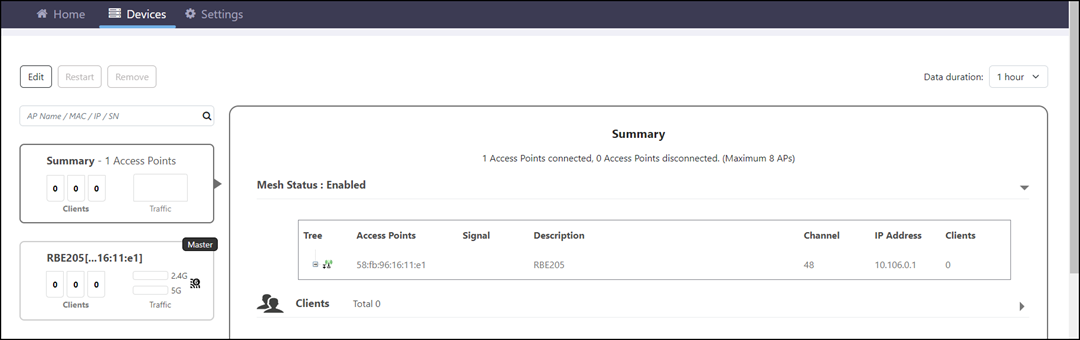

The Mesh Status table displays the relationships between Root APs and Mesh APs in the Mesh. The table includes the following information:
- Tree: Displays other member APs connected to the Mesh Master AP.
- Access Points: Lists the APs in the Mesh by MAC address.
- Signal: Displays the signal quality of the Mesh link to and from the uplink AP.
- Description: The AP description, if configured.
- Channel: Displays the channel used by the Mesh link, as well as the channel width (20/40/80).
- IP Address: The IP address of the Root AP or Mesh AP.
- Clients: The number of clients connected to the AP.
