Summary

The summary tab displays device hardware and software attributes as charts.
To view the device's hardware and software attributes on the Summary tab, perform the following -
  1. From the main menu, navigate to Security > Access Control > Device Policy > Summary.
    This displays the Summary page.
  2. In the Summary page, select the Clients and Hosts details from the drop-down menu.

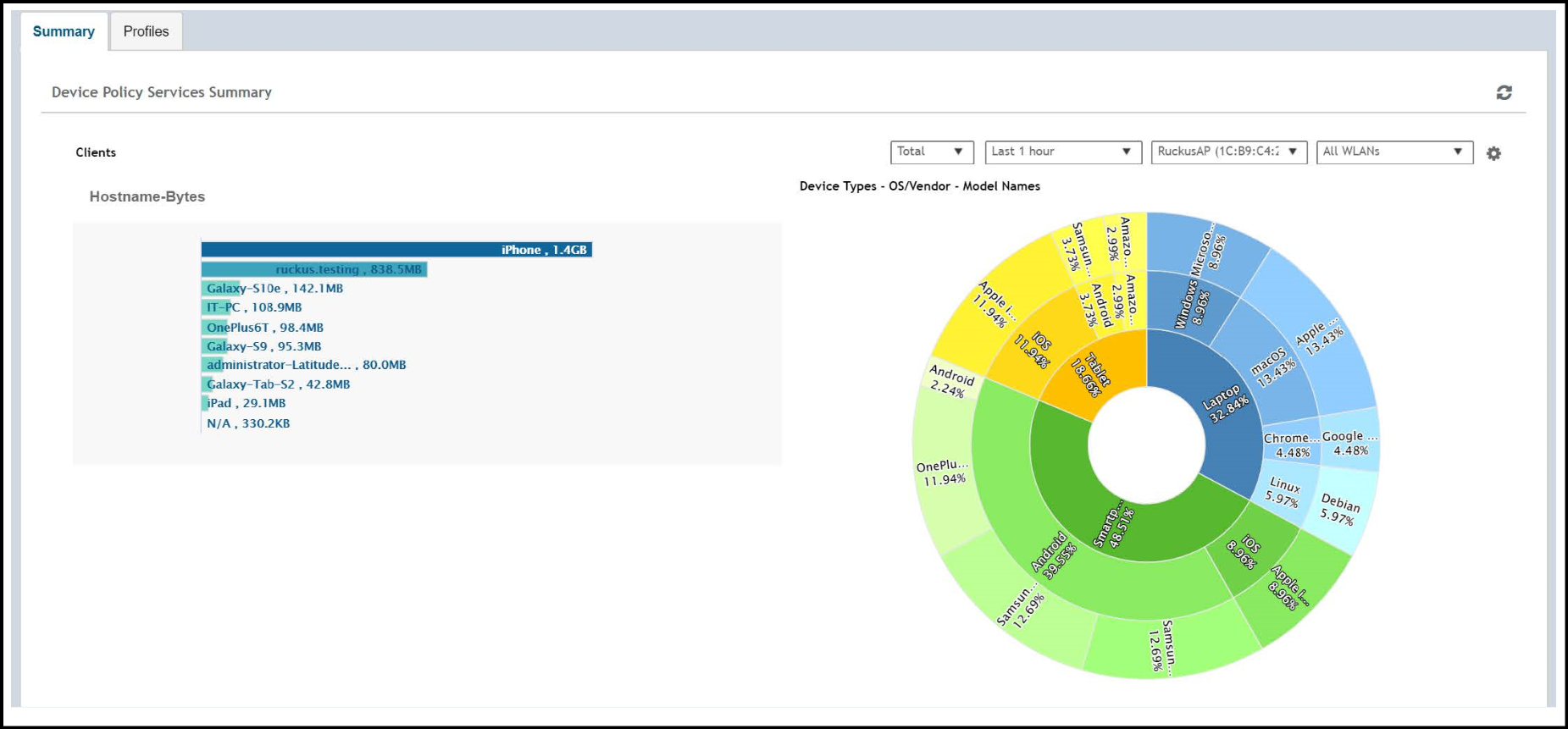

    Summary

  3. The attributes chart has 3 zones and a core -
    • Outer zone - Displays the model names of device types.
    • Central zone - Displays information of the operating system used by the device type or the vendor name.
    • Inner Zone - Displays the device type.
    • Core - Displays the number of clients connected. (Hover the mouse to view the information).
    The below table lists the filters available in the Summary screen.

    Filters

    Filter Name Description
    Total/2.4GHz/5GHz User can select the radio options from the drop down menu to generate the report.
    Last report/Last 1 hour/Last 24 hours User can select the options from the drop down menu generate the report.

    Last report - Accumulates stats of 180 seconds from the Access Point.

    Last 1 hour - Accumulates stats of 60 minutes from the Access Point.

    Last 24 hours - Accumulates stats of 24 hours from the Access Point.
    All APs By default displays details of the Access Point selected from Access Points tab. User can select the option from drop down menu to view a particular AP or all APs.
    All WLANs Displays the WLANs associated with each AP. User can select the option from drop down menu to view a particular WLAN or all WLANs.
    Settings - Clients User can set the preferred display settings.
    Note: The maximum clients displayed is 20.
    Host name - Bytes This displays traffic consumed per client.
