Associating a VSA Profile to a WLAN Configuration

Perform the following procedure to associate a VSA profile to a WLAN configuration.
  1. On the main menu, click Network > Wireless LANs.
    The Wireless LANs page is displayed.
  2. Select the zone where the VSA profiles are created and click Create.
    The Create WLAN Configuration page is displayed.

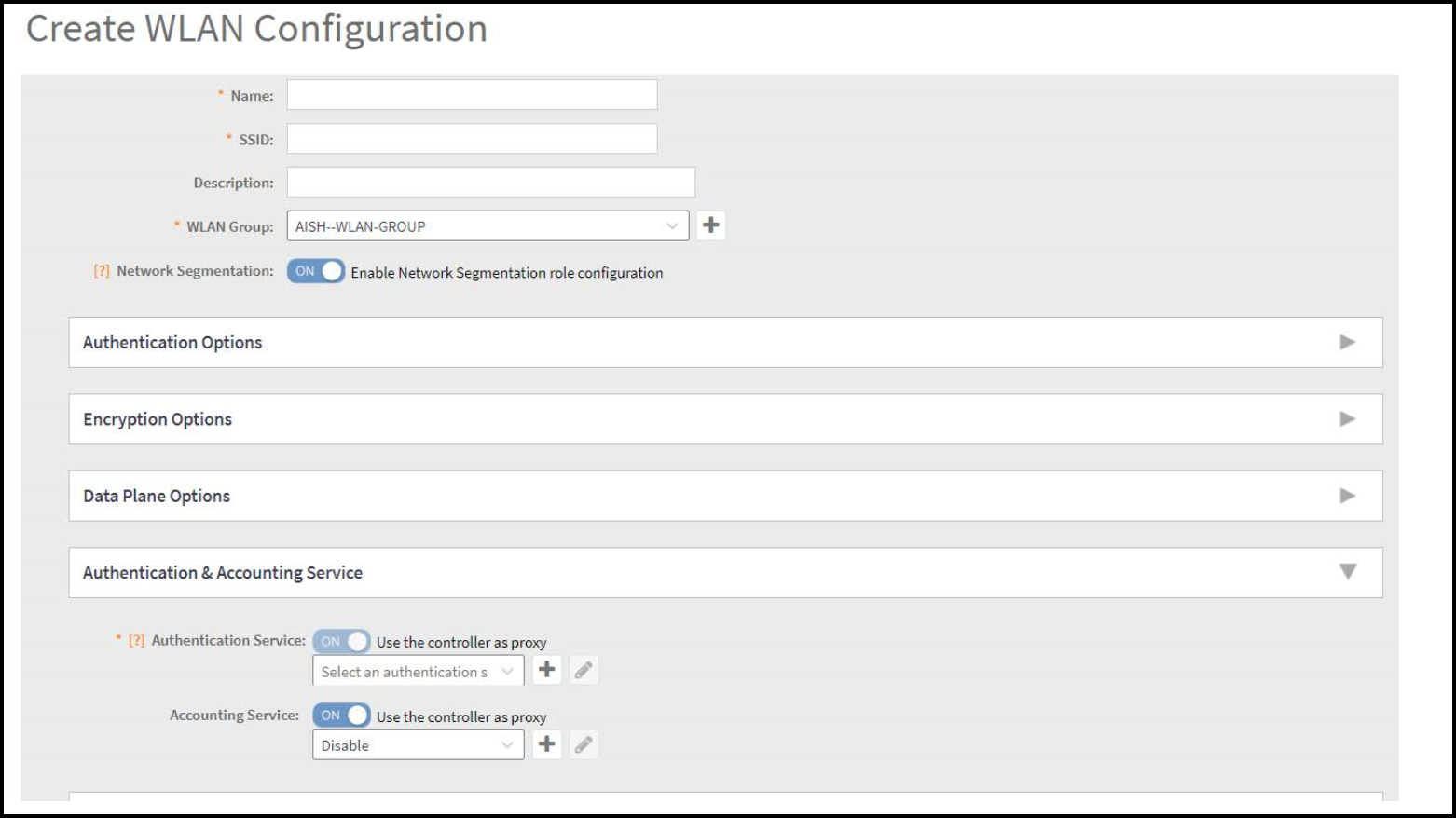

    Creating a WLAN Configuration

  3. Under General Options, enter the WLAN name and SSID.
  4. Under Authentication and Accounting Service, complete the following steps:select the authentication service profile.
    1. Under Authentication Service, click Use the controller as proxy and select the authentication service profile.
    2. Under Accounting Service, click Use the controller as proxy and select the accounting service profile.
  5. Under Radius Options, click Vendor Specific Attribute Profile and select a VSA profile.
    Note: By default, Vendor Specific Attribute Profile is disabled.
    Note: Click to configure the VSA profile.
  6. Under Advanced Options, in Access VLAN, enter the VLAN ID.
    Note: Enter an integer from 2 through 4094 for VLAN ID.
  7. Click OK.

Note: The WLAN configuration is shown in the Access Points page for the zone where VSA profiles are created.
