Creating a Wi-Fi Calling Profile

You can classify the voice packets in a Wi-Fi call based on the carrier by creating a Wi-Fi calling profile.
Follow the below steps to create a Wi-Fi Calling profile.
  1. From the main menu go to Services > Others > Wi-Fi Calling > Profiles.
  2. Click Create.

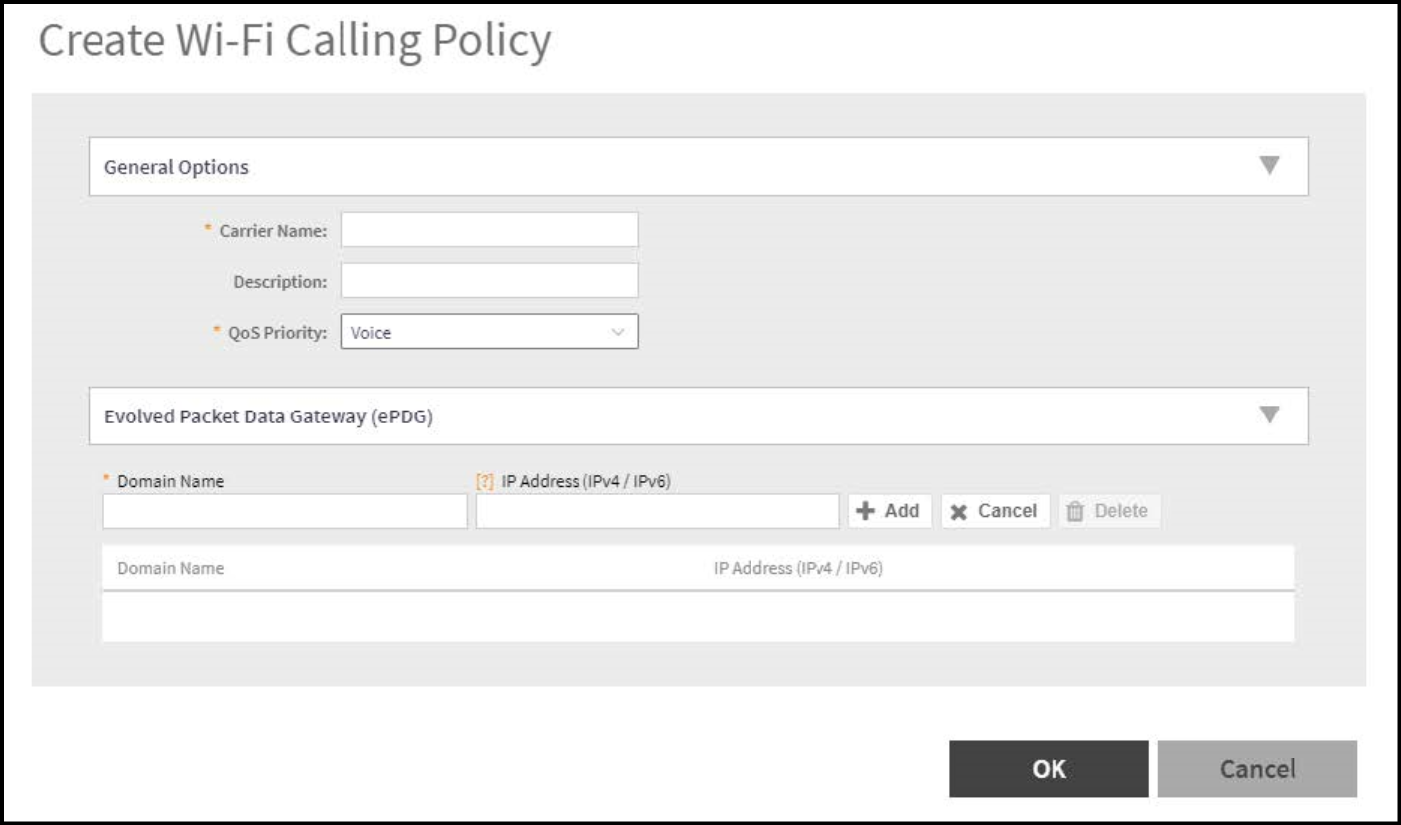

    The Create Wi-Fi Calling Policy dialog box is displayed.

    Creating a Wi-Fi Calling Policy

  3. Under General Options, configure the following options:
    • Carrier Name: Enter the name of the carrier based on which you want to create a rule to prioritize the voice calls.
    • Description: Enter a brief description o the profile.
    • QoS Priority: Select the prioritization for the calls from the list such as Voice, Video, Best Effort and Background.
  4. Under Evolved Packet Data Gateway (ePDG), configure the following options:
    • Domain Name: Enter the domain name, for example, epdg.epc.att.net.
    • (Optional) IP Address (IPv4/IPv6): Enter the IP address for the domain. Providing the IP address enables better Wi-Fi calling QoS during roaming.
  5. Click Add to include the domain.
    The AP verifies the domain IP address before qualifying the Wi-Fi call.
  6. Click OK .
The Wi-Fi calling profile is created and displayed with its name, QoS priority, number of ePDGs associated, and management domain.
Note: You can edit,clone, and delete the profile by selecting Configure, Clone, and Delete options respectively.
Parent topic: Wi-Fi Calling
