Creating a Client Isolation Allowlist

This feature allows the administrator to manually specify a list of approved wired destinations that may be reachable by wireless clients.
  1. Note: The allowlist applies only to destinations that are on the wired network, and it will not work on wireless destinations.
  2. Click Security > Access Control > Client Isolation Allowlist.
    This displays Client Isolation Allowlist page.
  3. Select a zone from the system tree and click Create.
    This displays Create Client Isolation Allowlist page.

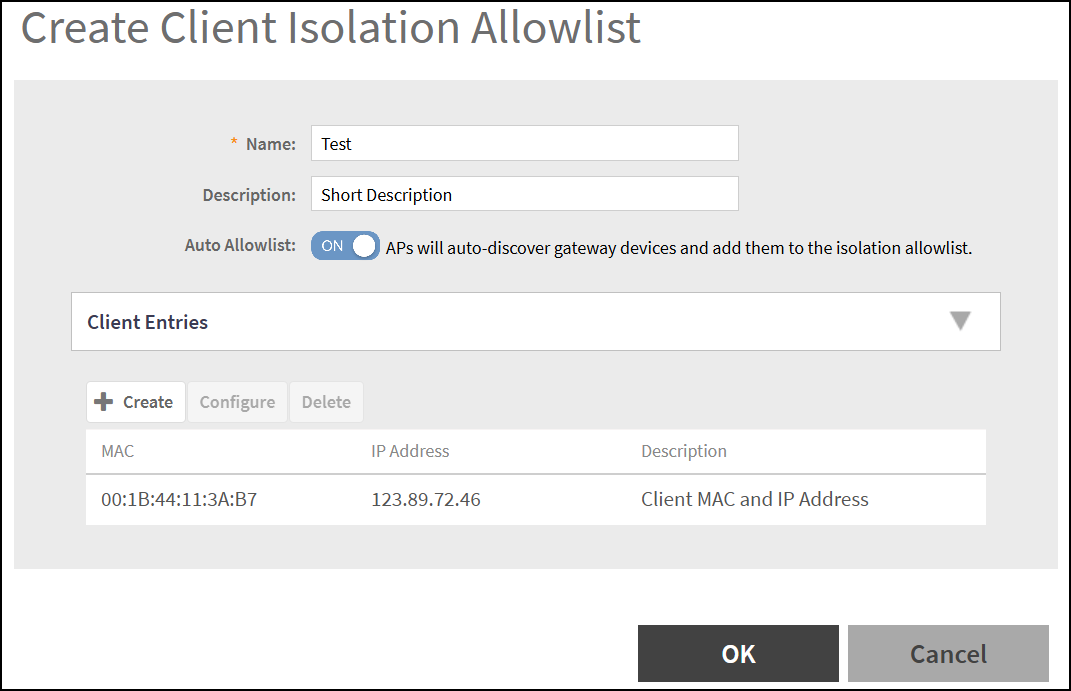

    Create Client Isolation Allowlist

  4. Enter the following:
    1. Name: Enter a name to identify the client.
    2. Description: Enter short description about the client.
    3. Auto Allowlist: Click on the toggle button to enable the AP to scan for devices automatically and include them in the isolation allowlist.
      Note: Each VLAN can have only 16 entries in the allowlist and WLAN can have a maximum of 64 client isolation manual entries.
    4. Client Entries: To manually add the clients to the list, click Create and provide client information such as MAC address (mandatory), IP address and Description.
    5. Click OK.
You have created the list of allowlisted clients that can access the network.
