Ethernet Profiles

  1. On the menu, click Services > Hotspots & Portals > Network Segmentation > Ethernet Profiles to display the Ethernet Profiles window.

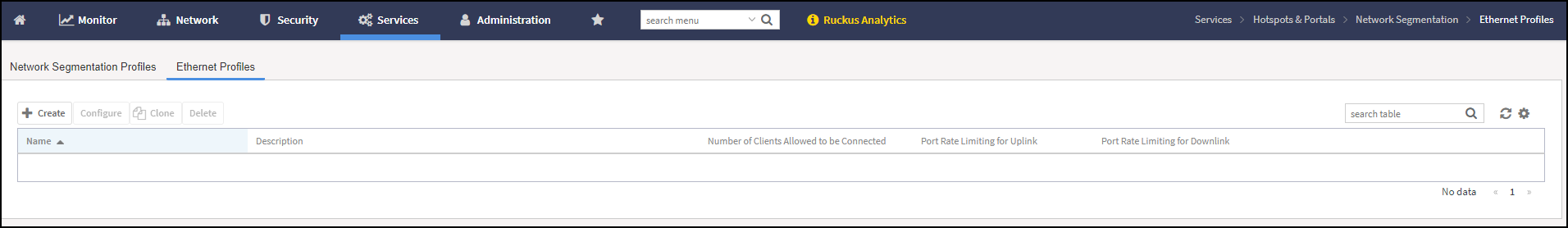

  2. Ethernet Profiles

  3. Select the ethernet profile from the table or create a ethernet profile, click Create to create the Network Segmentation Ethernet Port profile.

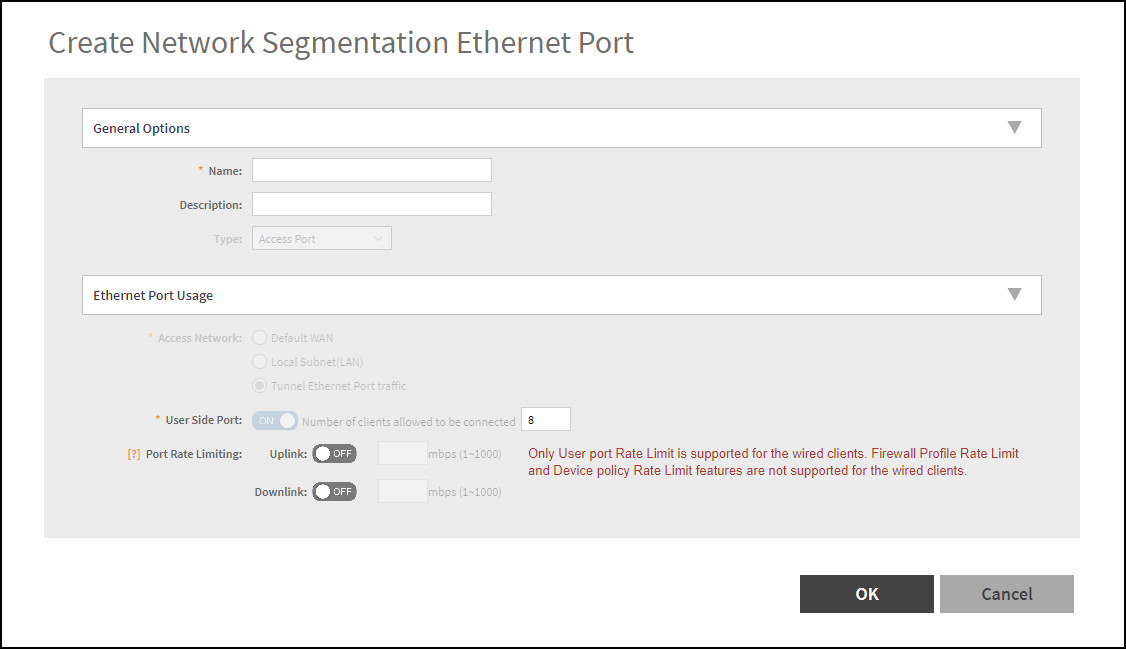

  4. Create Network Segmentation Ethernet Port

  5. Complete the following fields:
    • General Options
      • Name: Enter the ethernet port name.
      • Description: Enter a short description of the ethernet port.
      • Type: Select from the drop down list.
        By default this option is autofilled. Please cofnirm can we update this option.
    • Ethernet Port Usage
      • Access Network: Select from Default WAN, Local Subnet (LAN), or Tunnel Ethernet Port Traffic.
        By default this option is autofilled. Please cofnirm can we update this option.
      • User Side Port: By default, this option is switched ON. Switch OFF to disable this option.
        By default this option is ON. Please cofnirm can we switch OFF this option.
      • Number of clients allow to be connected: Enter the number of clients allowed to be connected.
      • Port Rate Limiting: Only User port Rate Limit is supported for the wired clients. Firewall Profile Rate Limit and Device policy Rate Limit features are not supported for the wired clients.

        Uplink: By default, this option is switched OFF. Switch ON to enable uplink limit. You can enter the limit between 1-1000 mbps.

        Downlink: By default, this option is switched OFF. Switch ON to enable downlink limit. You can enter the limit between 1-1000 mbps.

  6. Click OK.
Note: You can also edit, clone, or delete a Ethernet Profiles by selecting the options Configure, Clone, and Delete, respectively, from the Ethernet Profiles window.
Parent topic: Working with Hotspots and Portals
