Creating Realm Based Proxy

An accounting profile defines the accounting policy when the controller is used as a RADIUS proxy for WLAN services.
  1. Go to Security > Access Control > Accounting > Realm Based Proxy.
  2. Click Create.
    The Create Accounting Profile page appears.

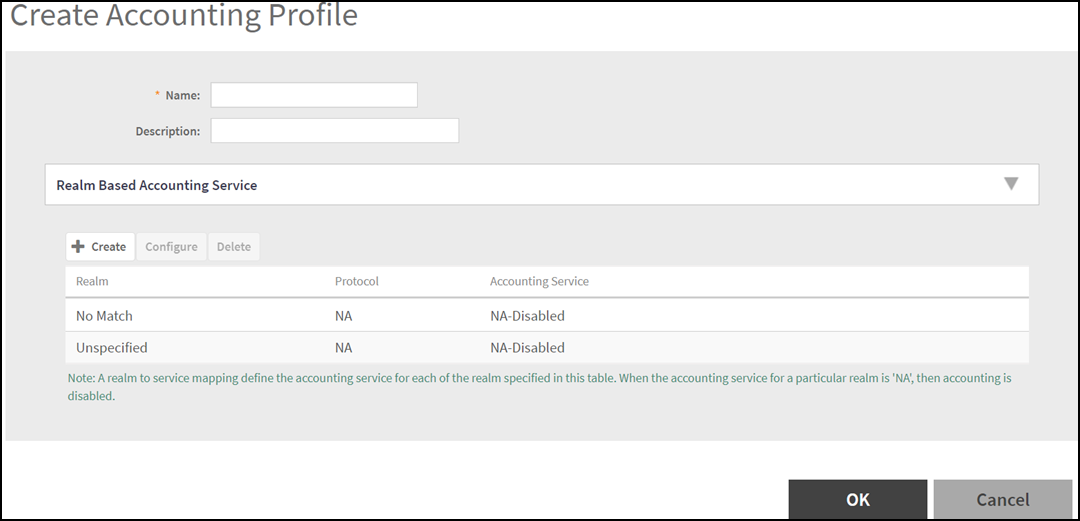

    Creating an Accounting Profile

  3. Configure the following:
    1. Name: Type a name for the authentication service that you are adding.
    2. Description: Type a description for the authentication service.
    3. Accounting Service per Realm: Specify the accounting service for each of the realms specified in this table. If you set the accounting service for a particular realm to NA-Disabled, then the accounting request is rejected. To create a new service click, Create and then configure Realm and Accounting Service.
      Note: RFC-5580 is used to convey access-network ownership and location information based on the civic and geospatial location formats in RADIUS protocol.
  4. Click OK.
You have completed creating a Realm-based proxy Accounting AAA server.
Note: You can also edit, clone and delete an AAA server by selecting the options Configure, Clone and Delete respectively, from the Realm Based Proxy tab.
Parent topic: Authentication, Authorization, and Accounting (AAA)
