Configuration Example: BFD for OSPF Single-Hop Session for an Ethernet Interface

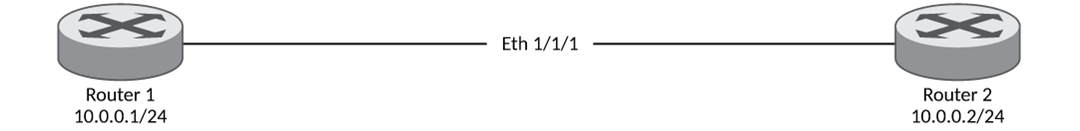

The following figure shows a BFD single-hop session that is configured for OSPFv2
for Ethernet interface 1/1/1 on two devices, Router 1 and Router2.
The following configuration configures a BFD single-hop session for OSPFv2, as illustrated in the preceding figure. BFD for OSPFv2 is configured for Ethernet interface 1/1/1 on both Router 1 and Router 2. The BFD session parameters are also configured.
Router1# configure terminal Router1(config)# router ospf Router1(config-ospf-router)# bfd Router1(config-ospf-router)# bfd min-tx 300 min-rx 290 multiplier 3 Router1(config)# interface ethernet 1/1/1 Router1(config-if-e40000-1/1/1)# ip address 10.0.0.1/24 Router1(config-if-e40000-1/1/1)# ip ospf bfd Router1(config-if-e40000-1/1/1)# ip ospf bfd passive Router1(config-if-e40000-1/1/1)# ip ospf bfd min-tx 290 min-rx 300 multiplier 3 Router2# configure terminal Router2(config)# router ospf Router2(config-ospf-router)# bfd Router2(config-ospf-router)# bfd min-tx 300 min-rx 302 multiplier 3 Router2(config)# interface ethernet 1/1/1 Router2(config-if-e40000-1/1/1)# ip address 10.0.0.2/24 Router2(config-if-e40000-1/1/1)# ip ospf bfd Router2(config-if-e40000-1/1/1)# ip ospf bfd min-tx 300 min-rx 302 multiplier 3
