Multicast Snooping Configuration Example

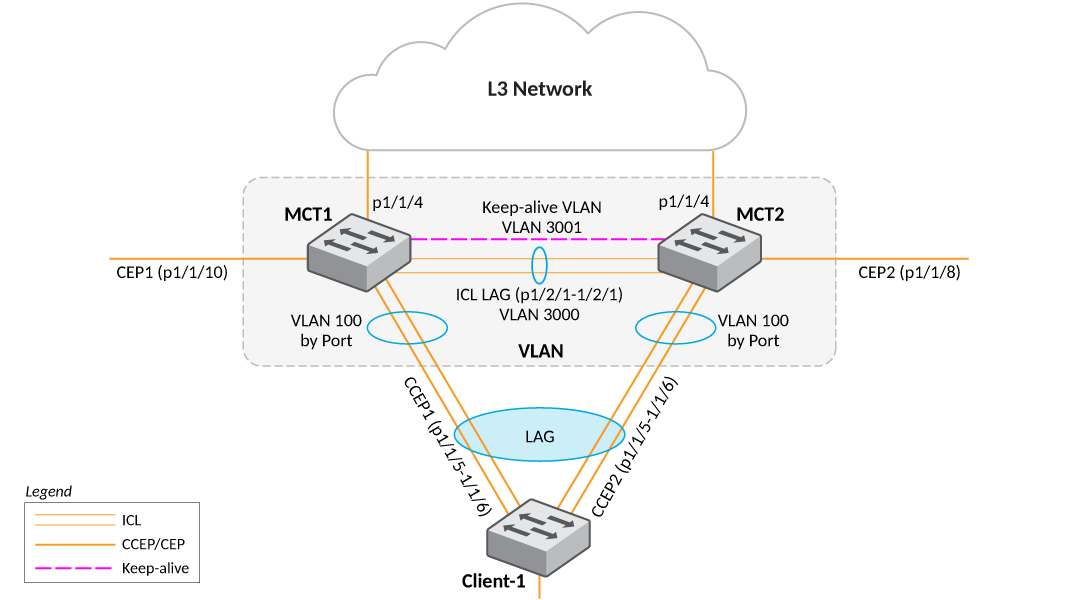

The following figure depicts a multicast snooping configuration. Sample configurations follow.
The following example shows the configuration for multicast snooping for the MCT1 cluster device in Multicast Snooping over MCT.
vlan 100 by port tagged ethe 1/2/1 untagged ethe 1/1/5 ethe 1/1/6 multicast passive multicast pimsm-snooping multicast6 passive multicast6 pimsm-snooping ! vlan 3000 name session by port tagged ethe 1/2/1 router-interface ve 3000 vlan 3001 name keep-alive-vlan tagged eth 1/1/4 interface ve 3000 ip address 10.1.1.2 255.255.255.0 ! cluster ICX7850 3000 rbridge-id 2 session-vlan 3000 keep-alive-vlan 3001 icl ICL ethernet 1/2/1 peer 10.1.1.3 rbridge-id 3 icl ICL deploy client client-1 rbridge-id 100 client-interface ethernet 1/1/5 deploy !
The following example shows the configuration for multicast snooping for the MCT2 cluster device in Multicast Snooping over MCT.
! vlan 100 by port tagged ethe 1/2/1 untagged ethe 1/1/5 ethe 1/1/6 multicast passive multicast pimsm-snooping multicast6 passive multicast6 pimsm-snooping ! vlan 3000 name session by port tagged ethe 1/2/1 router-interface ve 3000 vlan 3001 name keep-alive-vlan tagged eth 1/1/4 interface ve 3000 ip address 10.1.1.3 255.255.255.0 ! cluster ICX7850 3000 rbridge-id 3 session-vlan 3000 keep-alive-vlan 3001 icl ICL ethernet 1/2/1 peer 10.1.1.2 rbridge-id 2 icl ICL deploy client client-1 rbridge-id 100 client-interface ethernet 1/1/5 deploy !
The following example shows the global configuration for multicast snooping for the MCT1 cluster device in Multicast Snooping over MCT.
vlan 100 by port tagged ethe 1/2/1 untagged ethe 1/1/5 ethe 1/1/6 ! vlan 3000 name session by port tagged ethe 1/2/1 router-interface ve 3000 vlan 3001 name keep-alive-vlan tagged eth 1/1/4 ip multicast active interface ve 3000 ip address 10.1.1.2 255.255.255.0 ! cluster ICX7850 3000 rbridge-id 2 session-vlan 3000 keep-alive-vlan 3001 icl ICX ethernet 1/2/1 peer 10.1.1.3 rbridge-id 3 icl ICX deploy client client-1 rbridge-id 100 client-interface ethernet 1/1/5 deploy !
The following example shows the global configuration for multicast snooping for the MCT2 cluster device in Multicast Snooping over MCT.
! vlan 100 by port tagged ethe 1/2/1 untagged ethe 1/1/5 ethe 1/1/6 ! vlan 3000 name session by port tagged ethe 1/2/1 router-interface ve 3000 vlan 3001 name keep-alive-vlan tagged eth 1/2/2 ip multicast passive interface ve 3000 ip address 10.1.1.3 255.255.255.0 ! cluster ICX7850 3000 rbridge-id 3 session-vlan 3000 keep-alive-vlan 3001 icl ICL ethernet 1/2/1 peer 10.1.1.2 rbridge-id 2 icl ICL deploy client client-1 rbridge-id 100 client-interface ethernet 1/1/5 deploy
