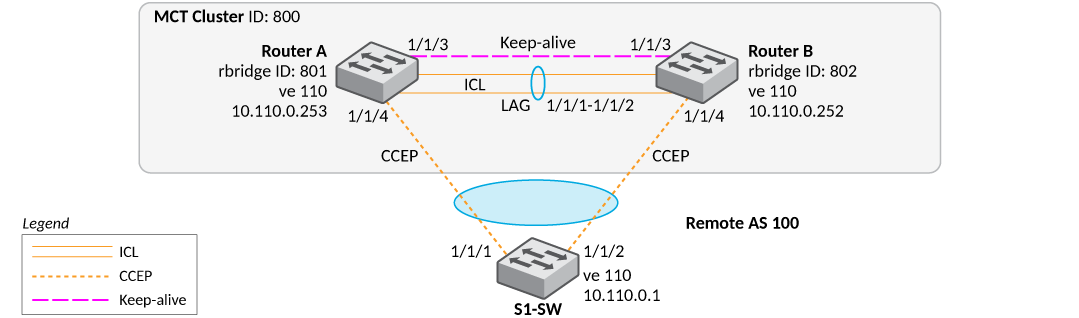

MCT Configuration with BGP
The following examples describe sample MCT configurations with BGP.
BGP Configuration: SWRA
This example presents the BGP configuration for the SWRA cluster device.
! interface ve 110 ip address 10.110.0.253 255.255.255.0 ! router bgp local-as 100 neighbor 10.110.0.252 remote-as 100 neighbor 10.110.0.1 remote-as 100 !
BGP Configuration: SWRB
This example presents the BGP configuration for the SWRB cluster device.
! interface ve 110 ip address 10.110.0.252 255.255.255.0 ! router bgp local-as 100 neighbor 10.110.0.253 remote-as 100 neighbor 10.110.0.1 remote-as 100 !
BGP Configuration: S1-SW
This example presents the BGP configuration for the S1-SW device.
! lag lag_s1_sw static id 60 ports ethernet 1/1/1 to 1/1/2 ! vlan 110 by port tagged ethernet lag 60 router-interface ve 110 ! interface ve 110 ip address 10.110.0.1 255.255.255.0 ! router bgp local-as 100 neighbor 10.110.0.253 remote-as 100 neighbor 10.110.0.252 remote-as 100 !
