Layer 2 Port-based VLANs

On all RUCKUS ICX devices, you can configure port-based VLANs. A port-based VLAN is a subset of ports on a RUCKUS ICX device that constitutes a Layer 2 broadcast domain.

By default, all the ports on a RUCKUS ICX device are members of the default VLAN. Thus, all the ports on the device constitute a single Layer 2 broadcast domain.

You can configure multiple port-based VLANs. You can configure up to 4094 port-based VLANs on a Layer 2 switch or a Layer 3 switch. On both device types, valid VLAN IDs are 1 - 4095. You can configure up to the maximum number of VLANs within that ID range.

Note: VLAN IDs 4087 and 4090 are reserved for RUCKUS internal use only. VLAN 4094 is reserved for use by Single STP. If you want to use VLANs 4091 and 4092 as configurable VLANs, you can assign them to different VLAN IDs. For more information, refer to Assigning a Different VLAN ID to Default and Reserved VLANs.
Note: RUCKUS ICX 7000 series switches can parse up to two VLAN tags.

The following behaviors apply to VLANs:

  • By default, interfaces are untagged members of the default VLAN.
  • When you configure an interface as untagged member of a non-default VLAN, that interface will be moved from the default VLAN to the configured VLAN.
  • When you configure an interface as a tagged member of a non-default VLAN, the untagged VLAN membership of the interface will not be modified, be it default-VLAN or non-default VLAN. You can configure default VLAN port membership.
  • You can remove untagged membership of an interface using the no untagged ethernet command within the default VLAN node.
  • An interface should be a member of at least one VLAN at any given time.
  • An interface will be moved to the default VLAN when the last non-default VLAN is removed on that interface (tagged or untagged).
  • When an untagged membership of an interface is removed from a non-default VLAN, the interface will be added back to the default VLAN as an untagged interface.
    Note: An untagged interface can be configured as tagged in other user VLANs, and a tagged interface can be configured as untagged in a default VLAN or in non-default VLANs.
Note: In FastIron 08.0.90 and later releases, there will no longer be any link flap when a port is being added as a tagged member to a VLAN for the first time or when a port is removed from the last tagged VLAN. External devices that may have relied on this link flap in the past for any kind of renegotiation must be reconfigured appropriately, or the user must manually flap (that is, disable and re-enable) the interface.

Because each port-based VLAN is a separate Layer 2 broadcast domain, each VLAN can be configured to run a separate instance of the Spanning Tree Protocol (STP). Layer 2 traffic is bridged within a port-based VLAN, and Layer 2 broadcasts are sent to all the ports within the VLAN.

Configuring Port-based VLANs

Port-based VLANs allow you to provide separate spanning tree protocol (STP) domains or broadcast domains on a port-by-port basis.

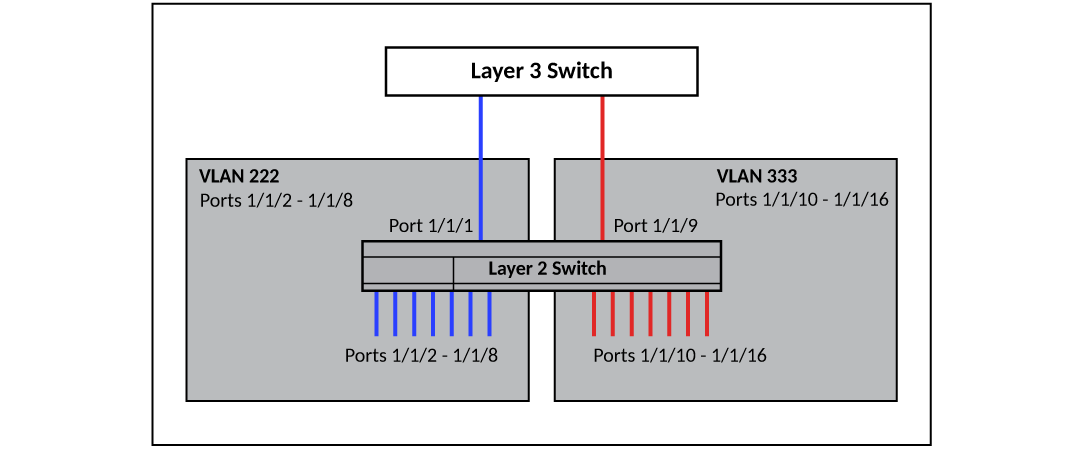

The following figure shows a simple port-based VLAN configuration using a single RUCKUS Layer 2 switch. All ports within each VLAN are untagged. One untagged port within each VLAN is used to connect the Layer 2 switch to a Layer 3 switch for Layer 3 connectivity between the two port-based VLANs.

Port-based VLANs 222 and 333

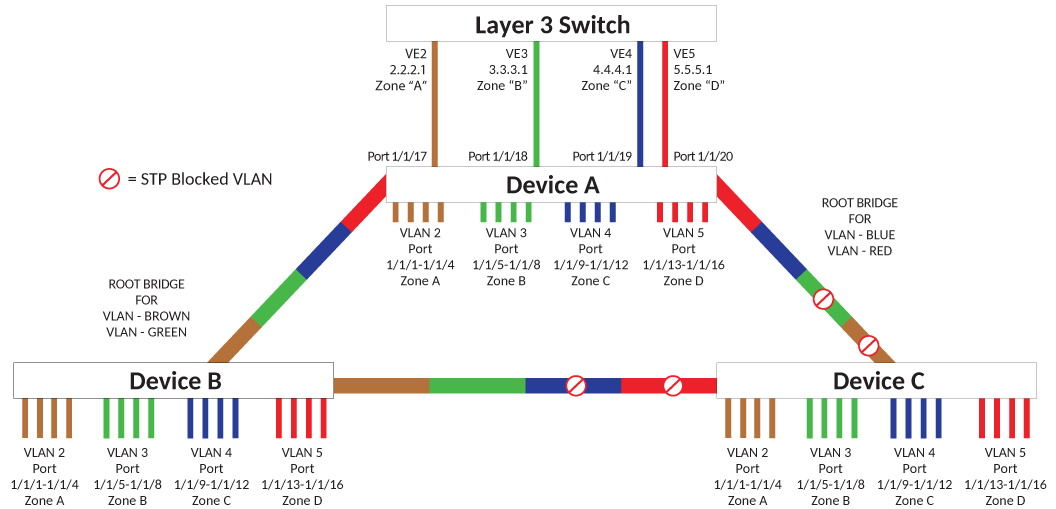

The following figure shows a more complex port-based VLAN configuration using multiple Layer 2 switches and IEEE 802.1Q VLAN tagging. One untagged port within each port-based VLAN on Device-A connects each broadcast domain VLAN to the router for Layer 3 forwarding between broadcast domains (inter-VLAN routing). The STP priority is configured to force Device-A to be the root bridge for VLANs RED and BLUE. The STP priority on Device-B is configured so that Device-B is the root bridge for VLANs GREEN and BROWN.

More Complex Port-based VLAN

To configure the port-based VLANs on the Layer 2 switches shown in More Complex Port-based VLAN, use the procedures found in Configuring Port-Based VLANs on Device-A, , and .

In this section:

  1. Configuring Port-Based VLANs on Device-A
  2. Configuring Port-Based VLANs on Device-B
  3. Configuring Port-Cased VLANs on Device-C
  4. Removing a Port-Based VLAN
