MCT Configuration with OSPF

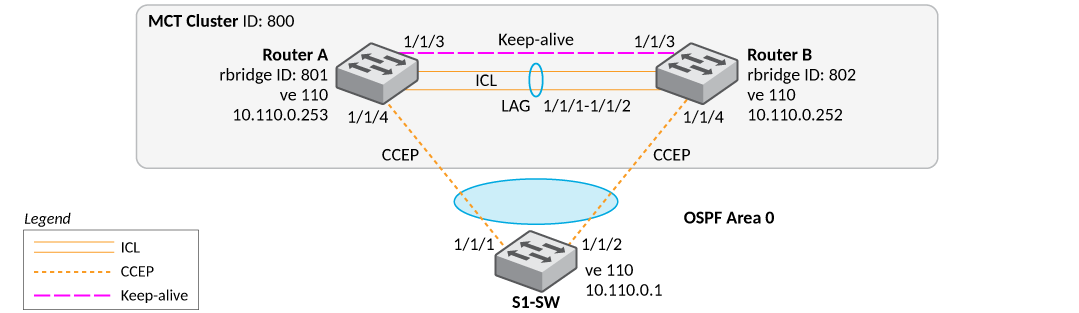

The following examples describe sample MCT configurations with OSPF.
OSPF Configuration: SWRA
This example presents the OSPF configuration for the SWRA cluster device.
! router ospf area 0 ! interface ve 110 ip address 10.110.0.253 255.255.255.0 ip ospf area 0 !
OSPF Configuration: SWRB
This example presents the OSPF configuration for the SWRB cluster device.
! router ospf area 0 ! interface ve 110 ip address 10.110.0.252 255.255.255.0 ip ospf area 0 !
OSPF Configuration: S1-SW
This example presents the configuration for the S1-SW device.
! lag lag_s1_sw static id 60 ports ethernet 1/1/1 to 1/1/2 ! vlan 110 by port tagged lag 60 router-interface ve 110 ! router ospf area 0 ! interface ve 110 ip address 10.110.0.1 255.255.255.0 ip ospf area 0 !
