Creating an L2 Access Control Service

Another method to control access to the network is by defining Layer 2 MAC address access control lists (ACLs), which can then be applied to one or more WLANs or WLAN groups. L2 ACLs are either allow-only or deny-only; that is, an ACL can be set up to allow only specified clients based on the MAC addresses that are configured. Further, L2 ACLs can also be used to allow-only or deny-only clients based on the ether types of the packet where EtherTypes is a field present in the ethernet header of a packet.
Note: If a tagged packet with Tag Protocol Identifier (TPID) value of 0x8100, 0x9100, or 0x88A8 is received, then instead of the TPID, the actual Ether-Type of the packet will be used for making the allow or block decision against the configured Ether-Types. If the mentioned TPID values need to be treated as Ether-Type to make the allow or block decision, configure the required TPID values in the custom Ether-Type list.
  1. Select Security > Access Control > L2 Access Control.
  2. Click Create.
    This displays Create L2 Access Control Service page.

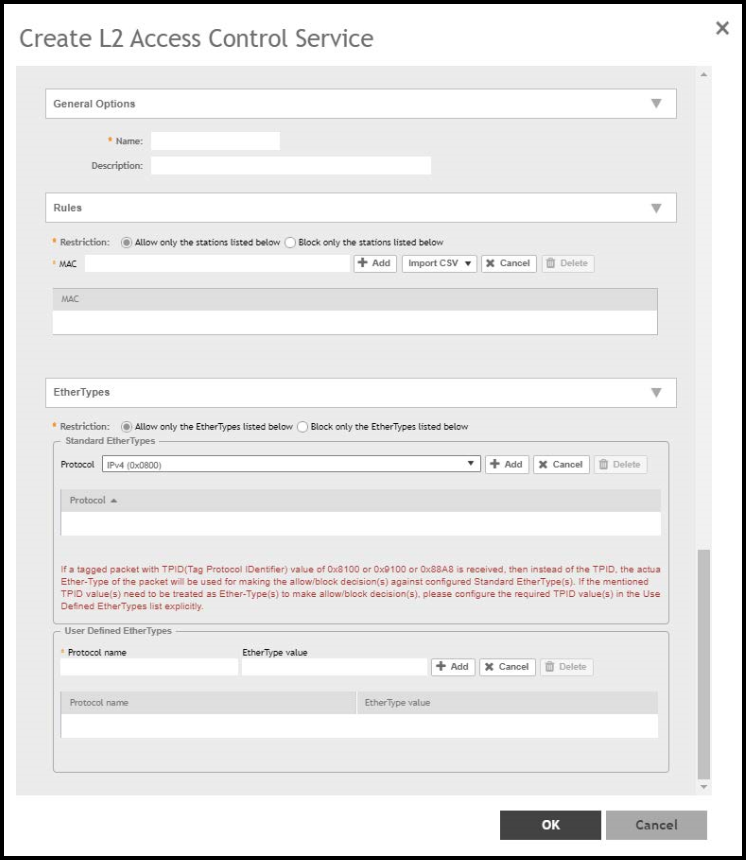

    Creating an L2 Access Control Service

  3. Configure the following options:
    1. General Options
      • Name: Enter a name for this policy.
      • Description: Enter a short description for this policy.
    2. Rules
      • Restriction: Select the default action that the controller will take if no rules are matched. Available options include Allow only the stations listed below or Block only the stations listed below.
      • MAC Address: Enter the MAC address to which this L2 access policy applies and click Add or click Import CSV to import the MAC address.
    3. EtherTypes
      • Restriction: The EtherType in the L2 ACL profile allows or blocks the specified EtherType traffic from the clients toward the network. Available options include Allow only the EtherTypes listed below or Block only the EtherTypes listed below.
      • Standard Ether Types: Select a protocol from the Protocol list to which this L2 access policy applies and click Add.
      • 5.2.1 update
        User Defined Ether Types: Enter a protocol name and EtherType value in hexadecimal format and click Add. A maximum of ten custom EtherTypes can be configured to be allowed or blocked.
  4. Click OK.
Note: Alternatively, in the Wireless LANs configuration under Firewall Options, select the Enable WLAN specific option or map the firewall profile from the firewall list which has the L2 access control policy mapped to it.
Note: You can also edit, clone, or delete a policy by selecting the options Configure, Clone, and Delete respectively, from the L2 Access Control page.
