Creating a Time Based Access Table

You can control client access to the network by providing a time schedule. This security measure restricts the access based on specific time parameters.
  1. Click Security > Access Control > Time Based Access.
    This displays the Time Based Access page.
  2. Select a zone from the system tree and click Create.
    This displays Create Time Based Access Table page.
  3. Select the Time Schedule tab, and then select the zone for which you want to create the schedule.
  4. Click Create.
    The Create Time Schedule Table page appears.

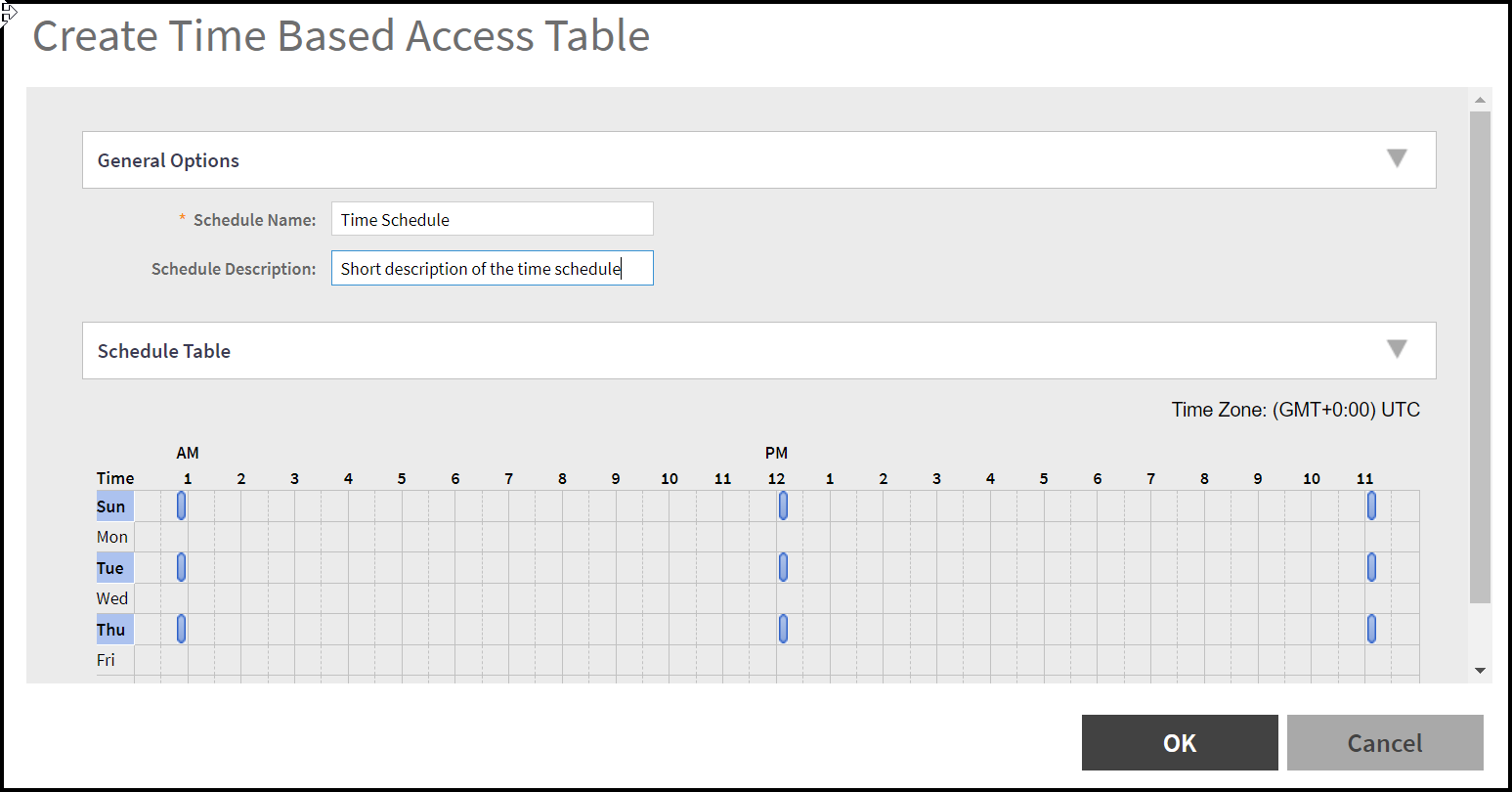

    Create Time Based Access Table

  5. Enter the following:
    1. Schedule Name: Enter a name for the schedule.
    2. Schedule Description: Enter a short description for this schedule.
    3. Draw the schedule table.
    4. Click OK.
You have created the schedule.
Note: You can also edit, clone and delete the schedule by selecting the options Configure, Clone and Delete respectively, from the Time Schedule tab.
