Creating a DNS Server Profile

A DNS server profile allows you to specify the primary and secondary address of the DNS server for devices to identify the host name within the specified zone.
To create a DNS Server Profile, perform the following:
  1. Click Administration > System > DNS Servers.
    This displays the DNS Servers page.
  2. Click Create.
    This displays the Create DNS Server Profile page.

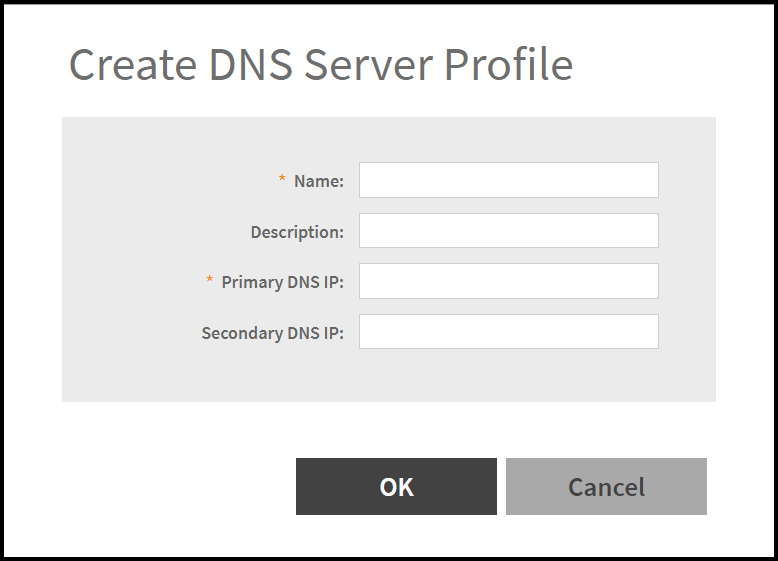

    Create DNS Server Profile

  3. Enter the following:
    1. Name: Type a name to identify the DNS server profile.
    2. Description: Enter a short description for profile.
    3. Primary DNS IP: Enter the primary DNS IP address.
      Note: This feature supports IPv4 address format.
    4. Secondary DNS IP: Enter the secondary DNS IP address.
      Note: This feature supports IPv4 address format.
    5. Click OK.
You have created a DNS Server Profile.
Note: You can also edit, clone and delete the profile by selecting the options Configure, Clone and Delete from the DNS Servers page.
Parent topic: Access Control
