Creating VLAN Name Profile

To create VLAN Name Profile, perform the following:
  1. Click Security > Access Control > VLAN > VLAN Name.
    The VLAN Name page is displayed.
  2. Select a zone from the hierarchy and click Create.
    The Create VLAN Name Profile page is displayed.

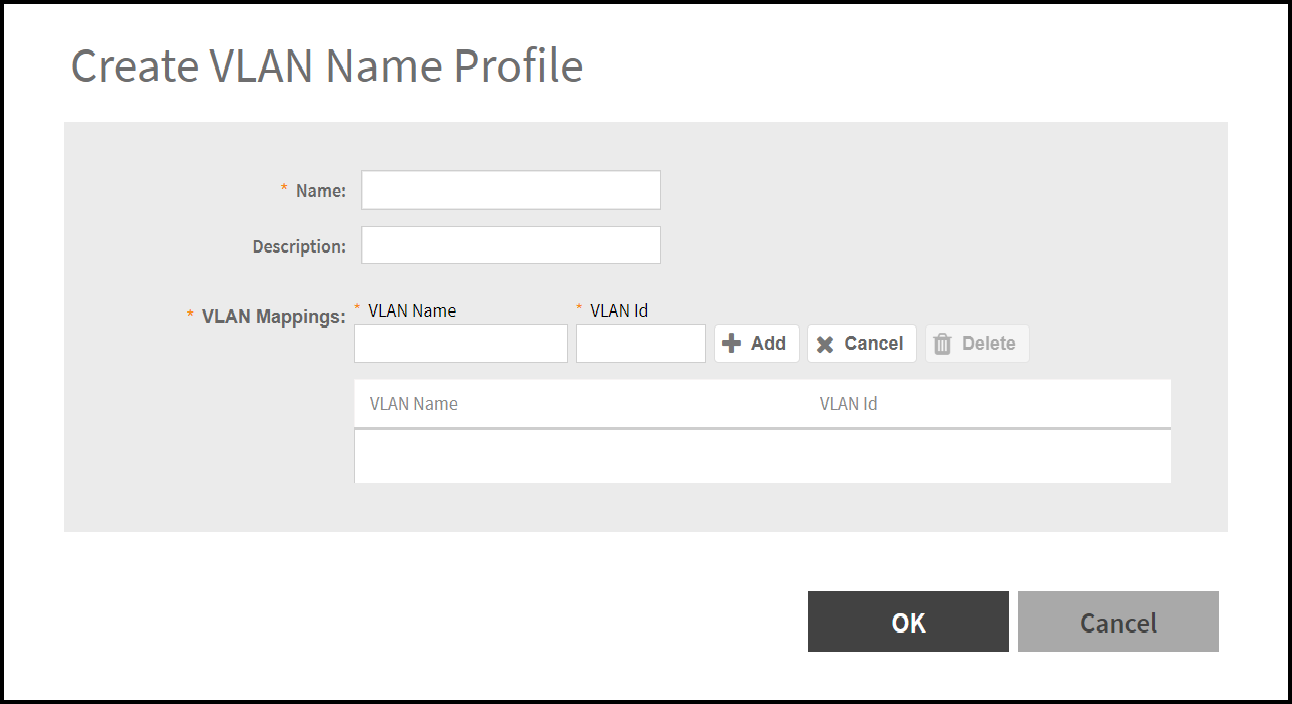

    Create VLAN Name Profile

  3. Enter the following fields:
    1. Name: Enter a name to identify the profile.
    2. Description: Enter a short description for the VLAN name profile.
    3. VLAN Mapping: Enter VLAN Name and VLAN ID and click Add.
The new VLAN name profile is displayed in the below list .
Note: You can also cancel or delete the new VLAN name profile .
Parent topic: VLAN Name
