Creating the Device Policy Rules

Complete the following steps to create a device policy rule.
  1. From the main menu, go to Security > Access Control > Device Policy.
    The Summary and Profiles tabs are displayed on page.
  2. Click the Profiles tab.
  3. Click Create to open the Create Device Policy Service page.
  4. In the Rules section, click Create.
    The Create Device Policy Rule page is displayed.

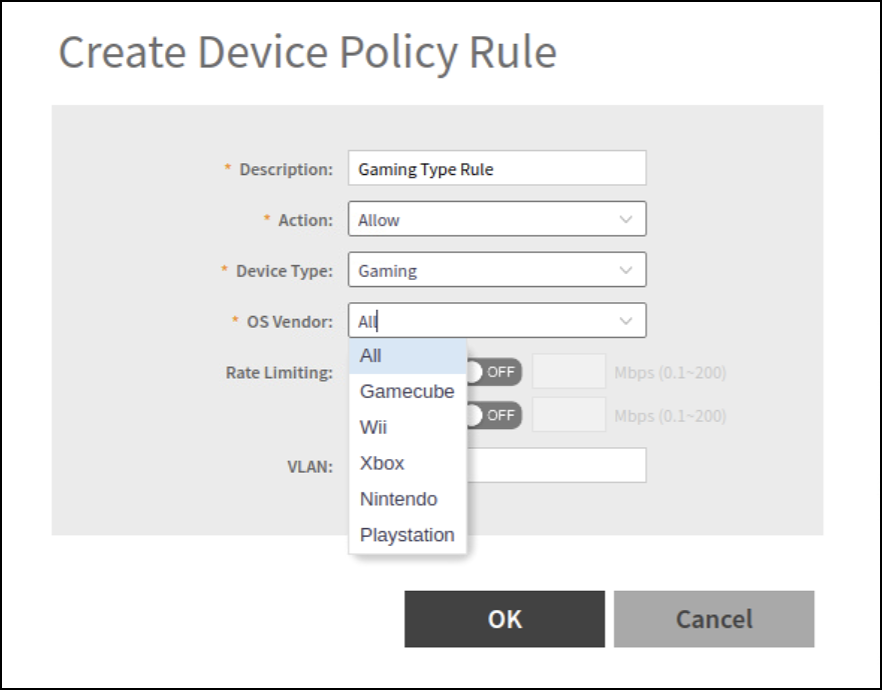

    Creating a Device Policy Rule

    Creating a Device Policy Rule
  5. Configure the following.
    1. Description: Enter a short description for this device policy.
    2. Action: Select Allow or Block. This is the action that the system takes if the client matches any of the attributes in the rule.
    3. Device Type: Select the device type from the list.
      Note: The Device Type feature is also supported on 11 AX APs.
    4. OS Vendor: Select the OS type from the list.
      Note: Starting with the 7.0 release, the original supported Gaming device type OS vendors have been merged. The XBOX 360 is merged with XBOX, PlayStation 2 and PlayStation 3 are merged into PlayStation.
    5. Rate Limiting: Enable the uplink and downlink rate limiting, and enter a rate limit value for each.
      Note: The Rate limit supports a maximum of 100 clients per WLAN per radio. After the threshold, the system displays client failure (203) error.
    6. VLAN : Enter the VLAN number for segmenting the client type. The value ranges from 1 through 4094. If no value is entered, this policy will not affect device VLAN assignment.
    7. Click OK.
Parent topic: Creating a Device Policy
