Configuring SZ Admin AAA Servers

To add and manage AAA servers that the controller can use to authenticate users, complete the following steps.

  1. Select Administration > Administration > Admins and Roles > AAA.
  2. From AP AAA Servers, click Create.
    The Create Administrator AAA Server page is displayed.
    5.1.2 update - reused across platforms

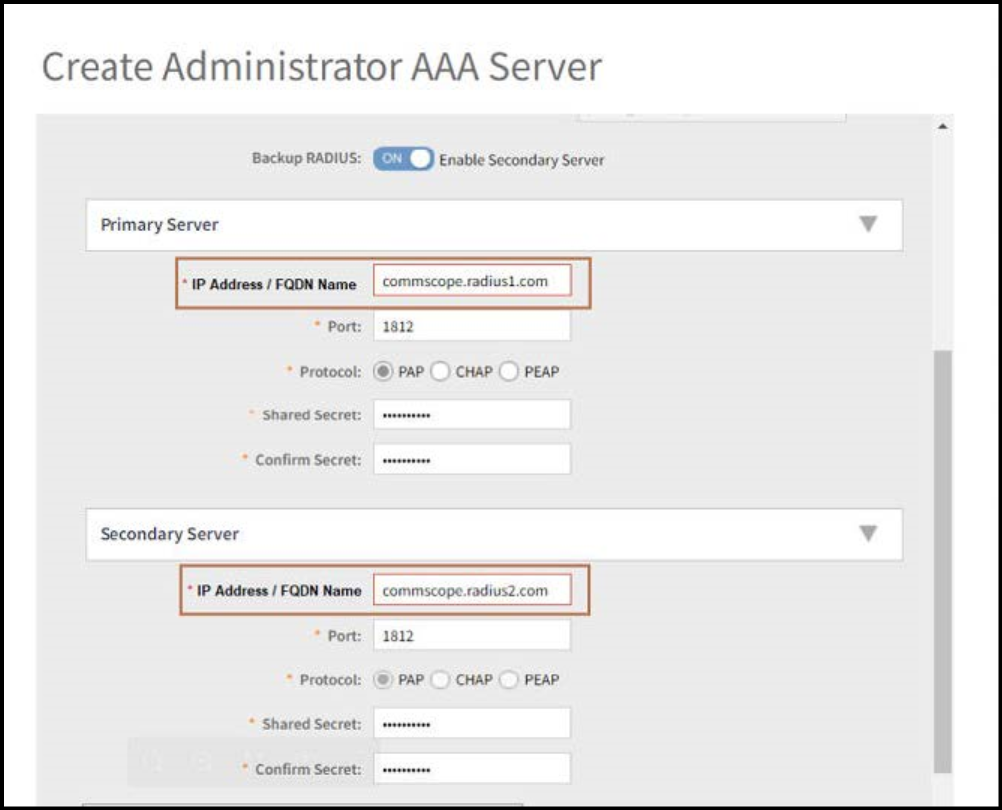

    Creating an Administrator AAA Server

  3. Enter the AAA server name.
  4. For Type, select the type of AAA server to authenticate users:
    • RADIUS
    • TACACS+
    • Active Directory
    • LDAP
  5. 5.1 Update - reused across platforms
    For Realm, enter the realm or service.
    Multiple realms or services are supported. Separate multiple realms or services with a comma.
    Note: Because the user login format (User Account + @ + Realm) includes a special character, the at symbol (@), the user account must not include the at symbol (@) separately on the AAA server.
  6. Enable Default Role Mapping.
    You can select auto-mapping for the system to automatically map between the AAA and SZ accounts.

    If Default Role Mapping is disabled, the AAA administrator must be mapped to a local SZ Admin user with matching AAA attributes for the RADIUS, TACACS+, Active Directory, or LDAP servers.

    5.1.1 update - reused across platforms
    • On a RADIUS server, the user data can use the VSA Ruckus-WSG-User attribute with a value depending on the SZ users or permissions you want the RADIUS user to map.
    • On a TACACS+ server, the user data can use the user-name attribute with the user1, user2, or user3 value depending on the SZ users or permissions you want the TACACS+ user to map.
    • On an Active Directory or LDAP server, the user data can belong to the group cn=Ruckus-WSG-User-SZAdminName (for example, cn=Ruckus-WSG-User-User1, depending on the SZ users or permissions you want the Active Directory or LDAP user to map.
      5.2 Update on the Active Directory bullet above.
    Note: You can use the mapping attributes on AAA and enable Default Role Mapping at the same time, but the mapping attributes override Default Role Mapping.
  7. For Backup RADIUS, select Enable Secondary Server if a secondary RADIUS server exists on the network. Refer to step 9 for configuration settings.
  8. Under Primary Server, configure the settings of the primary AAA server.
    • IP Address or FQDN : Enter the IP address or Fully Qualified Domain Name (FQDN) of the AAA server.
      Note: The FQDN option can be configured only for the RADIUS server.
    • Port: Enter the UDP port that the RADIUS server is using. The default port is 1812.
    • Protocol: Select the PAP or CHAP or PEAP protocol.
      Note: For the PEAP and PAP protocols, you must configure the Trusted CA certificate to support PEAP and EAP connection.
    • Shared Secret: Enter the shared secret.
    • Confirm Secret: Re-enter the shared secret to confirm.
    • Windows Domain name: Enter the domain name for the Windows server.
    • Base Domain Name: Enter the name of the base domain.
    • Admin Domain Name: Enter the domain name for the administrator.
    • Admin Password: Enter the administrator password.
    • Confirm New Password: Re-enter the password to confirm.
    • Key Attribute: Enter the key attribute, such as UID.
    • Search Filter: Enter a filter by which you want to search, such as objectClass=*.

    For Active Directory, configure the settings for the Proxy Agent.

    • User Principal Name: Enter the Windows domain Administrator name
    • Password: Enter the administrator password.
    • Confirm Password: Re-enter the password to confirm.
  9. Under Secondary Server, configure the settings of the secondary RADIUS server.
    • IP Address: Enter the IP address of the AAA server.
    • IP Address or FQDN: Enter the IP address or Fully Qualified Domain Name (FQDN) of the AAA server.
      Note: The FQDN option can be configured only for the RADIUS and Secondary server.
    • Port: Enter the UDP port that the RADIUS server is using. The default port is 1812.
    • Protocol: Select the PAP or CHAP or PEAP protocol.
      Note: For the PEAP and PAP protocols, you must configure the Trusted CA certificate to support PEAP and EAP connection respectively.
    • Shared Secret: Enter the shared secret.
    • Confirm Secret: Re-enter the shared secret to confirm.
  10. 5.1.1 update - reused across platforms
    Under Failover Policy at NAS, configure the settings of the secondary RADIUS server.
    • Request Timeout: Enter the timeout period in seconds. After the timeout period, an expected RADIUS response message is considered to have failed.
    • Max Number of Retries: Enter the number of failed connection attempts. After the maximum number of attempts, the controller tries to connect to the backup RADIUS server.
    • 5.1.2 update - reused across platforms
      Reconnect Primary: Enter the time in minutes, after that the controller connects to the primary server.
  11. Click OK.
Note: You can also edit, clone, or delete the server by selecting the options Configure, Clone, or Delete, from the Administrator tab.

In this section:

  1. Testing SZ Admin AAA Servers
    To ensure that the controller administrators are able to authenticate successfully with the RADIUS server type that you selected, RUCKUS strongly recommends testing the AAA server after you set it up.
