Enabling the Access Control of Management Interface

  1. click Administration > Admins and Roles > Access Control List.
    This displays the Access Control of Management Interface page.
  2. Click Enable.
    This displays the Access Control List.

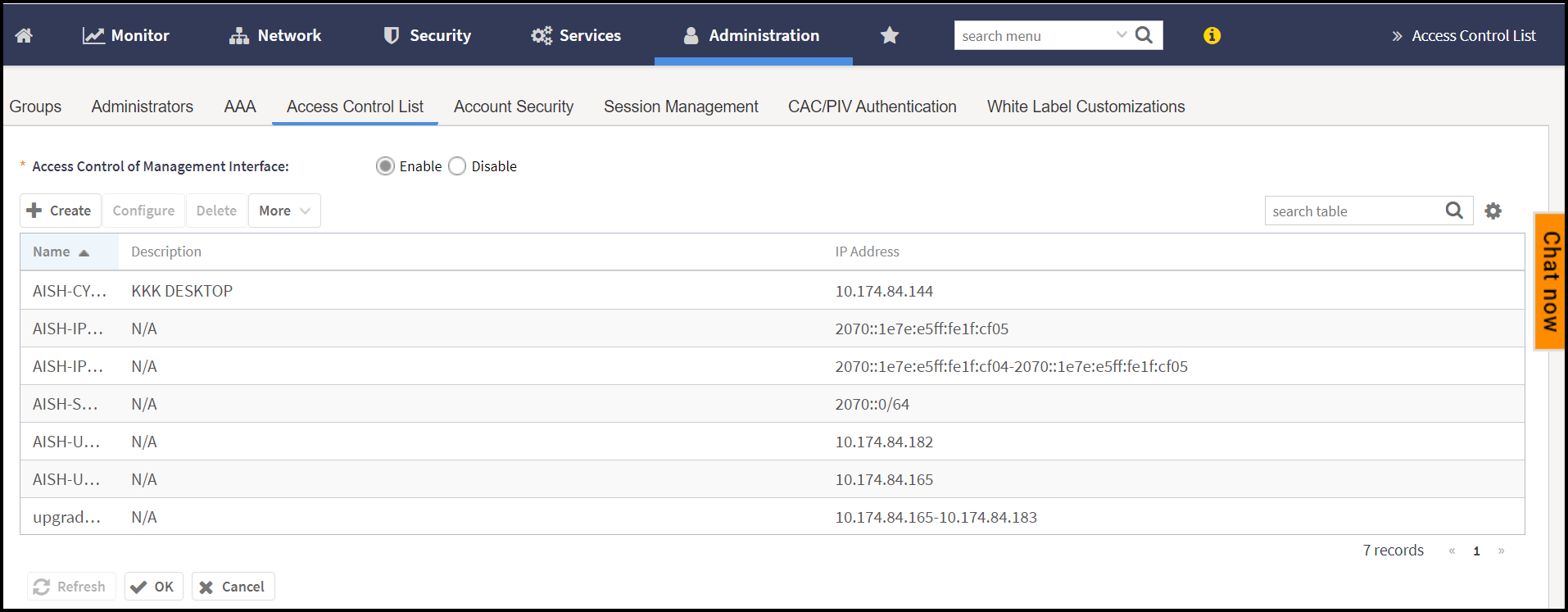

    Access Control of Management Interface

  3. Click Create.
    The Management Interface Access Control Rule page appears.

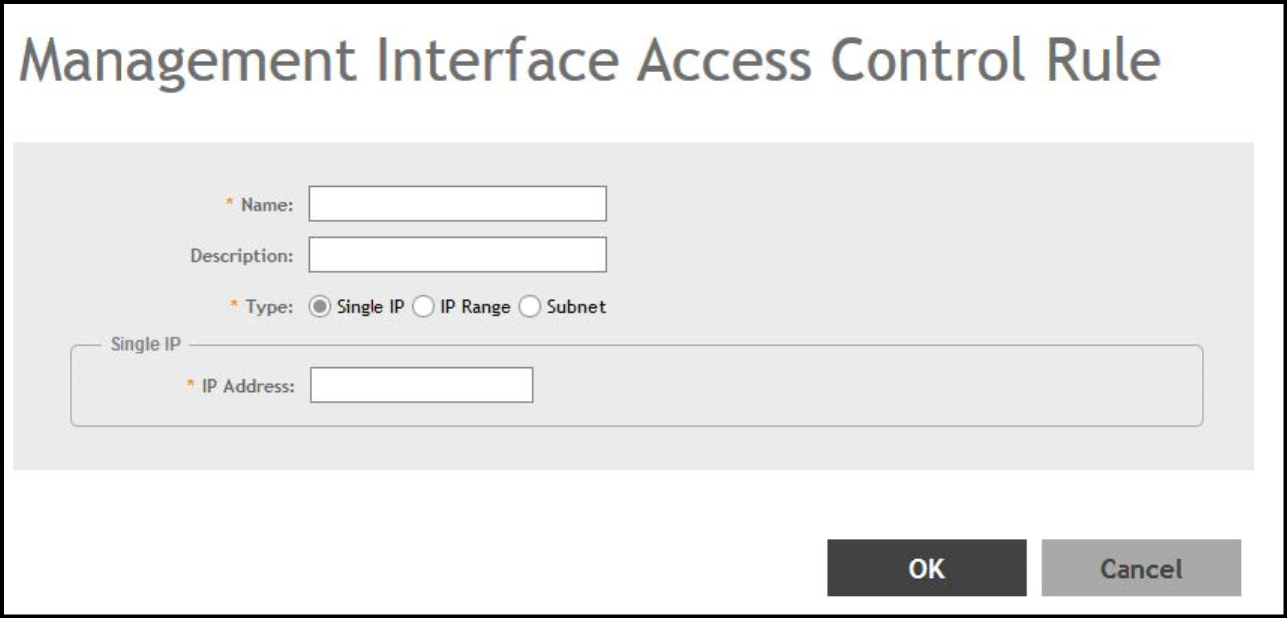

    Management Interface Access Control Rule

  4. Enter the following:
    1. Name: Type a name to identify the rule.
    2. Description: Enter a short description for the rule.
    3. Type: Select one of the following
      • Single IP: Type the IP address of the interface that can be accessed per this rule.
      • IP Range: Type the range of IP address that will be allowed access.
      • Subnet: Type the network address and subnet mask address of the interface that will be allowed access.
    4. Click OK.
    Note: You can also edit and delete the list by selecting the options Configure and Delete respectively, from the Access Control List tab.
Parent topic: Access Control
