Viewing Firmware History of the Switch
You can view the detailed status and result of the firmware update to a switch. You
can also view a history of firmware upgrades that were previously carried out on the
switch.
You must have upgraded the firmware of the switch as described in Scheduling a Firmware Upgrade for Selected Switches
- On the menu, click to display the Switches window.
- In the
Organization tab, select a or Switch Group and select the Switch. In the
Details tab, click Firmware
History tab.

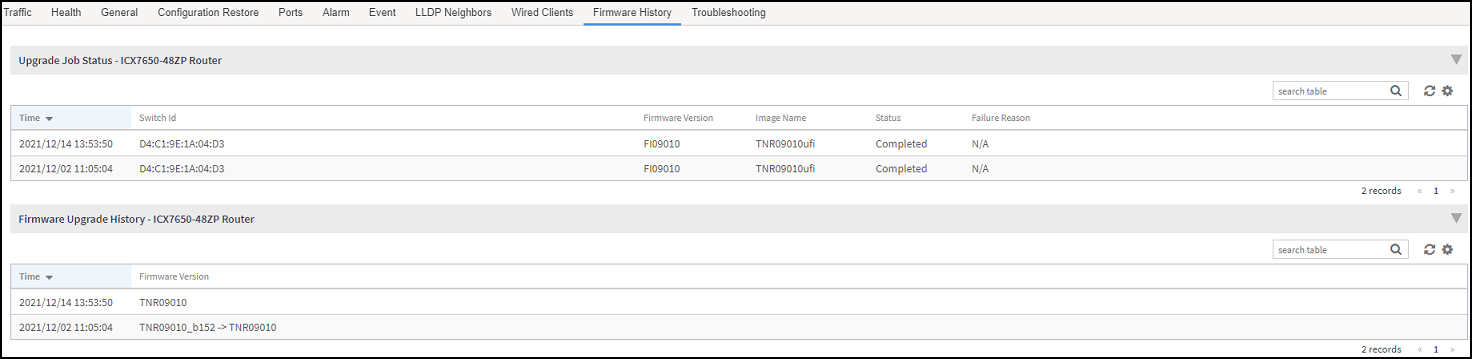

You can verify the status of the upgrade from the Upgrade Job Status section which displays the time, switch ID, firmware version, image name, status and failure reasons (if any) for the upgrade.
The Firmware Upgrade History section displays the time of the pervious upgrade operations, and firmware versions to which the upgrade was done.
%20Switch%20Management%20Guide,%206.1.2_v3_GUID-7CDC3479-EDB7-4841-AB6E-B85587E7C24A/Firmware%20History.PNG=GUID-2B709781-F83D-4E89-A75F-C174C16D65D2=2=en-US=Low.png "Viewing Firmware History")
