Deleting the Firmware Upgrade Schedules
If you schedule a firmaware upgrade, and
if the firmware upgrade is not executed or is in progress then this feature allows
you to
cancel the firmware upgrade. However, it must be noted that if the switch is copying
or
downloading the firmware, the controller will not be able to cancel the process.
- On the menu, click to display the Switches window.
- In the Organization tab, select a or Switch Group and select the Switch. In the Details tab, click .

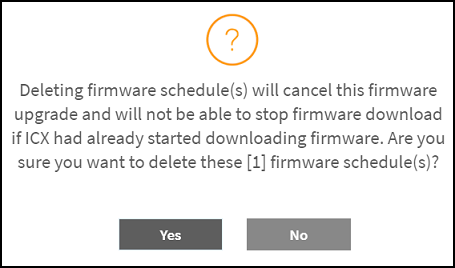

- Click Yes to delete the firmware schedule.
- A Switch firmware schedule(s) deleted successfully message dialog box is displayed, click OK.
- In the Organization tab, select the Switch and in the Details tab, select the Firmware History tab. In the Upgrade Job Status tab confirm that the schedule is canceled.

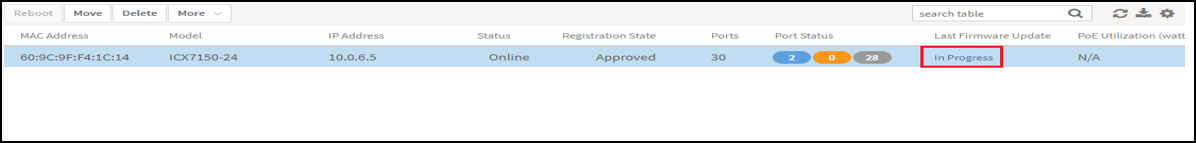

%20Switch%20Management%20Guide,%206.1.2_v3_GUID-7CDC3479-EDB7-4841-AB6E-B85587E7C24A/Upgrade%20in%20process=GUID-9B39CA68-EA08-4A98-967A-03CBA53C2CE5=2=en-US=Low.png "Upgrade in Progress")

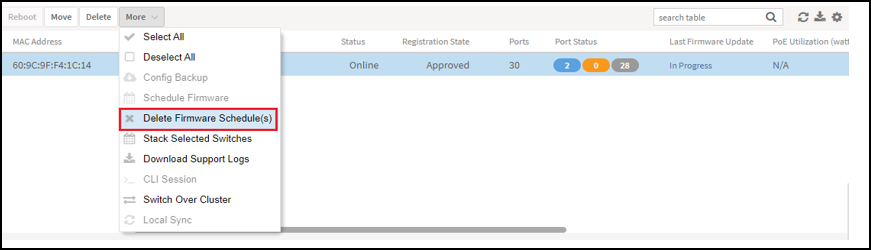

%20Switch%20Management%20Guide,%206.1.2_v3_GUID-7CDC3479-EDB7-4841-AB6E-B85587E7C24A/Deleting%20Firmware%20Schedules=GUID-2CEBCE80-ADC9-4EA3-A8EC-64ECF1F8D0A3=2=en-US=Low.png "Deleting Firmware Upgrade Schedule(s)")
%20Switch%20Management%20Guide,%206.1.2_v3_GUID-7CDC3479-EDB7-4841-AB6E-B85587E7C24A/Replacing%20the%20error%20message=GUID-ACE98674-456D-4DF4-9345-DDCD7779C8A8=2=en-US=Low.png)

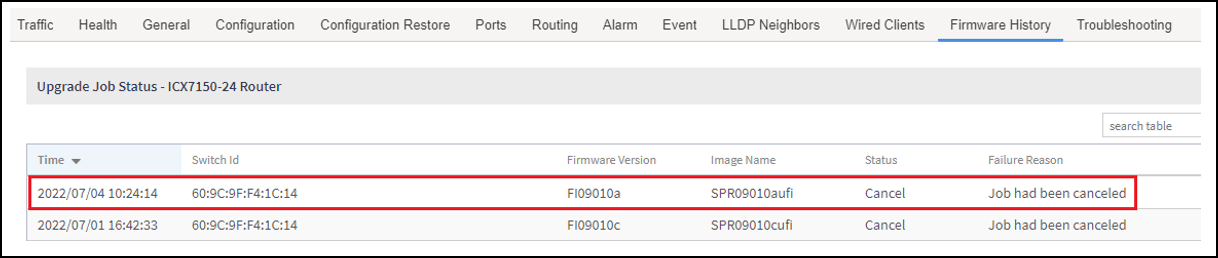

%20Switch%20Management%20Guide,%206.1.2_v3_GUID-7CDC3479-EDB7-4841-AB6E-B85587E7C24A/Viewing%20the%20Firmware%20History=GUID-FFA57D8A-7B8E-437F-BC42-F319BD2799B9=2=en-US=Low.png "Confirming the deletion")
