Managing Link Aggregation Groups (LAGs)

Controller provides an option to define LAGs at an individual switch level.
  1. On the menu, click Network > Wired > Switches to display the Switches window.
  2. In the Organization tab, select a Domain > Switch Group or Switch Group and select the Switch.
  3. In the Details tab, click Ports tab.

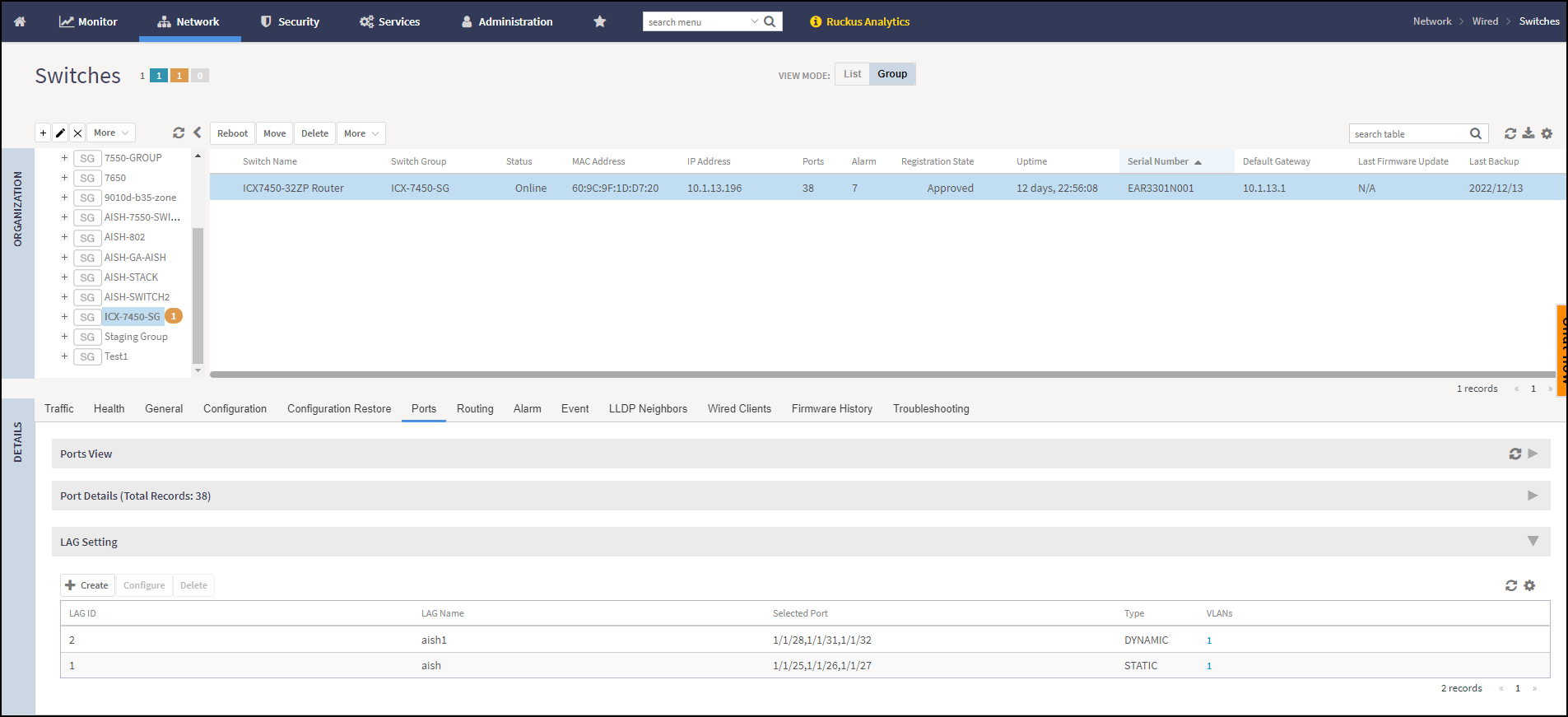

    Ports

  4. In the LAG Setting tab, click icon to display the Create LAG dialog box.

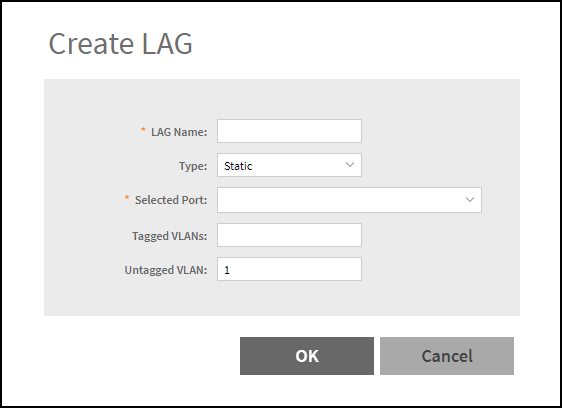

    Create LAG

  5. Complete the following fields:
    • LAG Name: Enter a name.
    • Type: Select either Static or Dynamic from the list.
    • Selected Port: You can select multiple port numbers from the list.
    • Tagged VLANs: Enter the tagged VLAN ID or VLAN ID range.
    • Untagged VLANs: Enter an untagged VLAN ID.
  6. Click OK.
