Creating Configuration Backup for Switch Group

The Master configuration backup allows you to initate a backup of a switch group or domain.
  1. On the menu, click Network > Wired > Switches to display the Switches window.
  2. In the Organization tab, select the Domain > Switch Group or Switch Group.
  3. Click More > Config Backup.

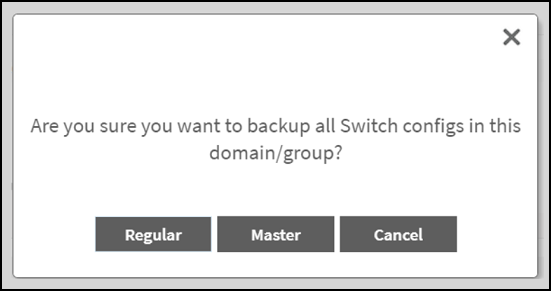

    A confirmation message is displayed asking the type of backup that must be carried such as Regular or Master.

    Backing up Switch group or Domain

    Backing up Switch group or Domain
  4. Click Master to create master backup for switch groups.
  5. Switch config backup operation is triggered successfully dialog box is displayed, click OK.
