Creating a Switch Stack

You can create a stack by selecting individual switches that are connected to the controller.
As a pre-requisite, you must configure switch stacking from controller before connecting the switch cables.
Complete the following steps to create a stack of switches.
  1. On the menu, click Network > Wired > Switches to display the Switches window.
  2. In the Organization tab, select a Domain > Switch Group or Switch Group and select the Switch that are to be stacked. Click More > Stack Selected Switches to display Create Stack dialog box.

    Creating a Stack

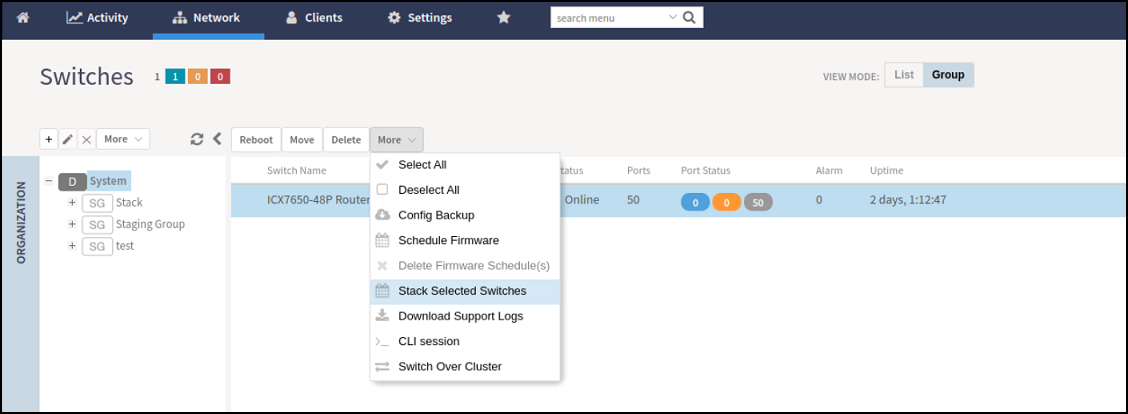

    Stack Selected Switches Page
  3. Switch ON the Active Role and click OK to create the stack. After 15 minutes switches form stack as seen in the next step.
  4. In the Organization tab, click Domain > Switch Group or Switch Group and select the stacked Switch.
