Cable Testing on ICX Ports
- On the menu, click to display the Switches window.
- In the Organization tab, select a or Switch Group and select the Switch.
- In the Details tab, click Troubleshooting tab.
- In the Cable Test tab,
click
%20Switch%20Management%20Guide,%206.1.2_v3_GUID-7CDC3479-EDB7-4841-AB6E-B85587E7C24A/arrow%20key=GUID-B1E9C36D-ECC5-444D-9820-B68FF783FB7E=1=en-US=Low.png)
icon to display the Cable Test
fields.

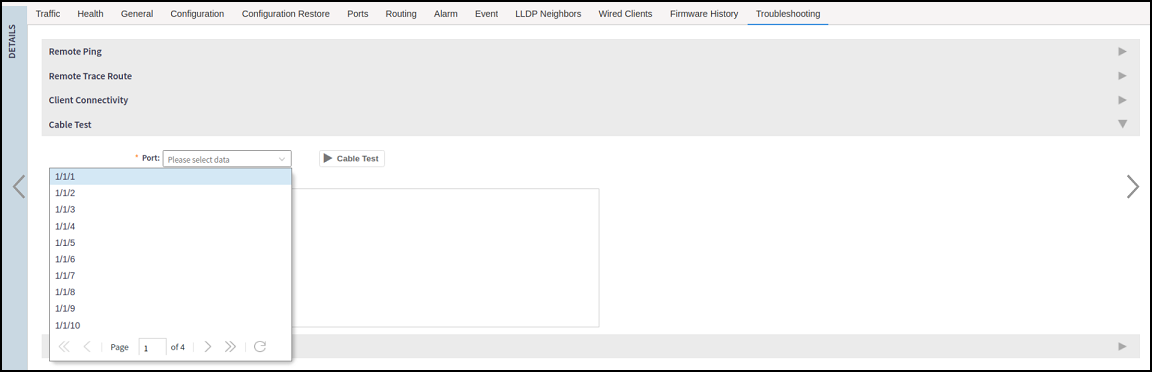

- Select a port from the Port drop down list.
- Click
%20Switch%20Management%20Guide,%206.1.2_v3_GUID-7CDC3479-EDB7-4841-AB6E-B85587E7C24A/Cable%20Test%20Icon=GUID-93112657-9983-4683-B594-BE4348916CBE=1=en-US=Low.png)

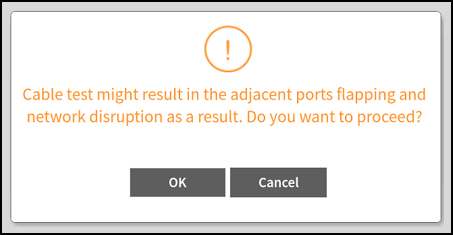

icon. - A Cable Test Message dialog box is displayed, click OK.

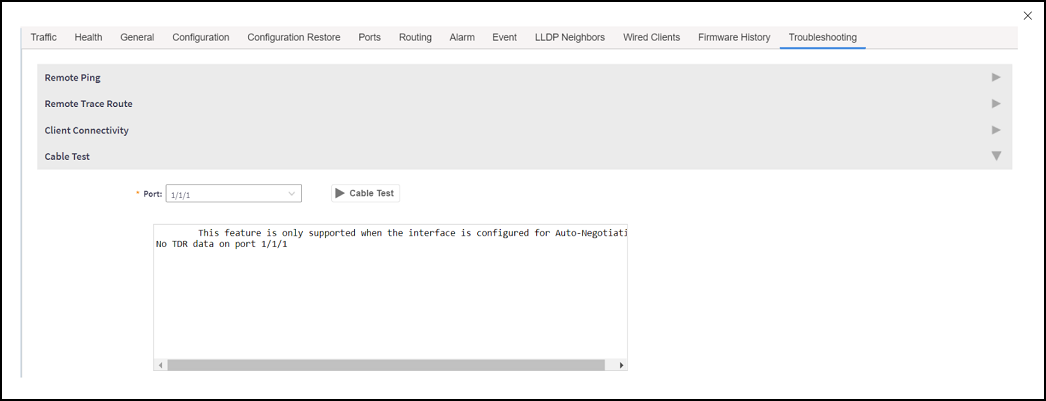

- If the selected port has the port speed set to Fixed, then an error message is displayed as below.
%20Switch%20Management%20Guide,%206.1.2_v3_GUID-7CDC3479-EDB7-4841-AB6E-B85587E7C24A/Cable%20testing%20-%20Figure1=GUID-C1E6AC9C-8CAF-4074-9792-8ACDA11032E9=2=en-US=Low.png)
%20Switch%20Management%20Guide,%206.1.2_v3_GUID-7CDC3479-EDB7-4841-AB6E-B85587E7C24A/Cable%20testing%20-%20Error%20message-%20Figure%202=GUID-3980A5CF-DF95-41D1-8770-900D45C603D7=2=en-US=Low.png)

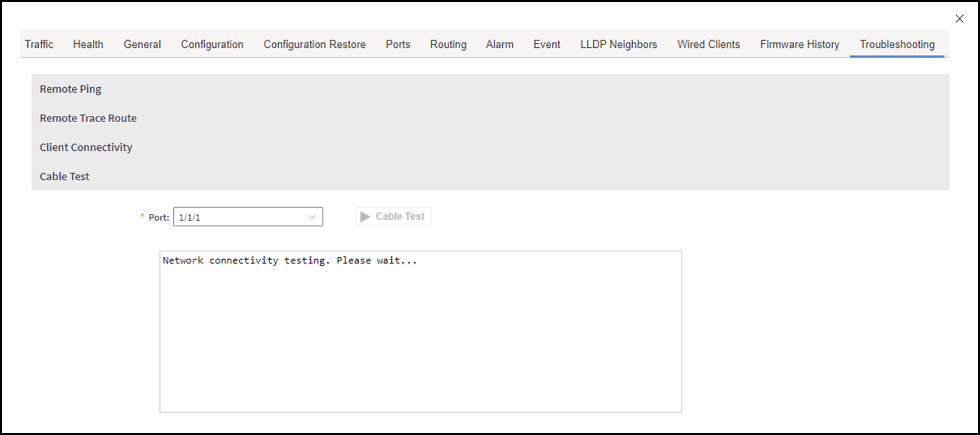

%20Switch%20Management%20Guide,%206.1.2_v3_GUID-7CDC3479-EDB7-4841-AB6E-B85587E7C24A/Figure%203_VCT%20Cable%20testing=GUID-CC4FCA39-1EB4-4ED1-AE3C-8464266F0498=2=en-US=Low.png "Testing Network Connectivity")

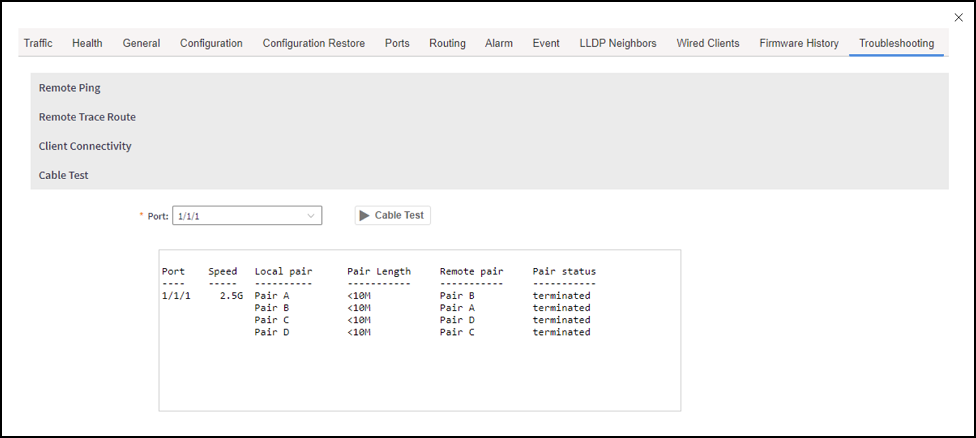

%20Switch%20Management%20Guide,%206.1.2_v3_GUID-7CDC3479-EDB7-4841-AB6E-B85587E7C24A/Figure%204_VCT%20Cable%20testing=GUID-E2622431-C95B-41B2-9F9B-83B8999B4D42=2=en-US=Low.png "Viewing the Cable Test Report")
