Editing Ports Across Multiple Switches

Before 5.2.1 release, the user could edit multiple ports for an individual switch. But after 5.2.1 release, the controller allows the user to edit the ports across multiple switches within the same Switch Group.

For example, if you want to disable port 1/1/11 and 1/1/12 across multiple switches, the controller provides an option to filter the ports list by typing the search criteria.

The search criteria is based on the following.

  • Switch Name
  • Port numbers - comma separated values (1/1/1,1/1/11,1/1/24), (or) Range of ports (1/1/1 to 1/1/20)
  • VLAN membership
  • PoE detected ports
  • Port Status
  • Admin Status

You must complete the following steps to edit ports across multiple switches.

  1. On the menu, click Network > Wired > Switches to disaply the Switches window.
  2. In the Organization tab, select a Domain > Switch Group or Switch Group.
  3. In the Details tab, click Switches and Ports tab.

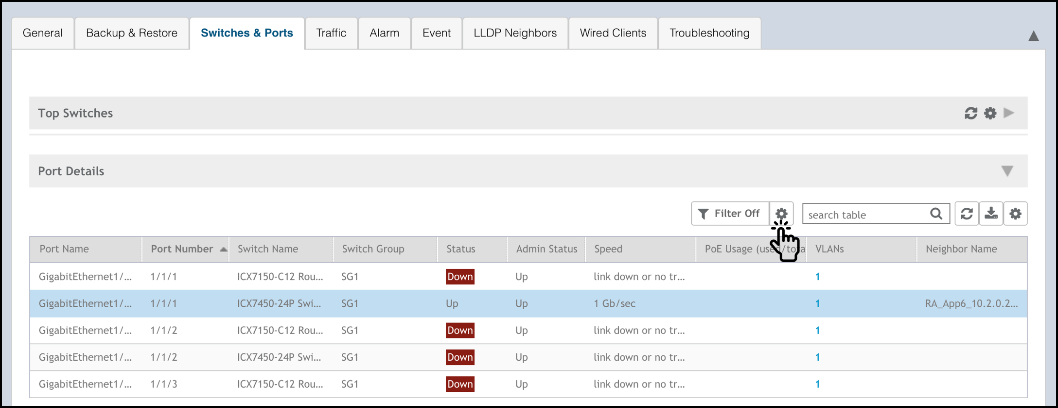

    Viewing the Switches and Ports Page

  4. In the Port Details tab, click the icon.
    A dialogue box is displayed. The controller provides the following filters to combine several query conditions to filter-out the ports which you want to edit.
    Note: Click Reset Filters to clear the search conditions.

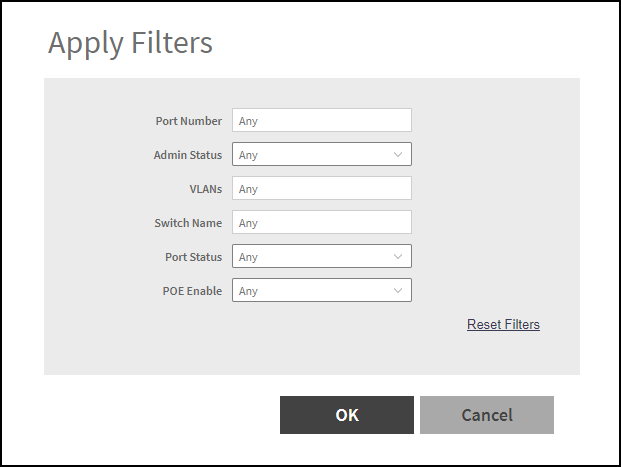

    Applying Filter to Edit the Ports

  5. Click OK.
    The controller applies the above filters to return ports that meet the search criteria.
