Creating Routing Configurations

You can create, edit, and delete routing configurations for an switch.
  1. On the menu, click Network > Wired > Switches to display the Switches window.
  2. In the Organization tab, select the Domain > Switch Group or Switch Group and in the Details tab, click Routing tab.

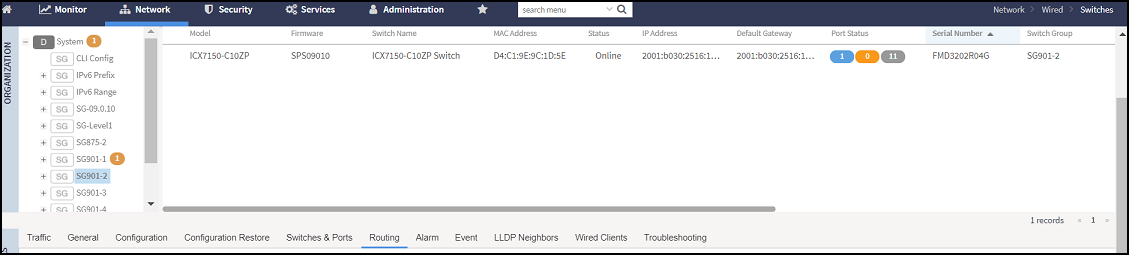

    Switch Routing Tab

    Switch Routing Tab
  3. In the IP Ports tab, click icon to display the IP Ports tab.

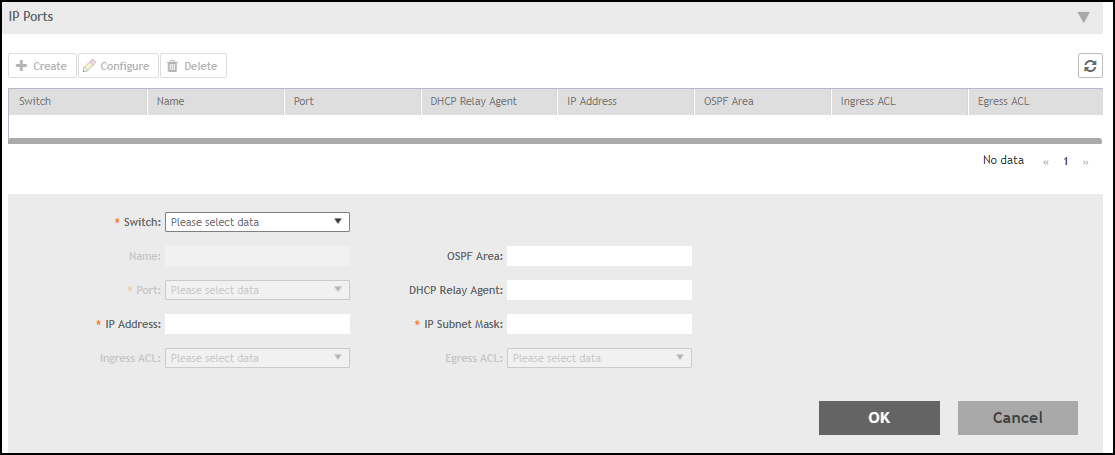

    IP Ports Page

    Complete the following fields:
    • Switch: Select the switch from the drop down list.
    • Name: Enter a name.
    • OSPF Area: Enter the OSPF area IPv4 address.
    • Port: Select the port number from the list.
    • DHCP Relay Agent: Enter the DHCP relay agent IP address.
    • IP Address: Enter a unicast IP address.
    • IP Subnet Mask: Enter an IP subnet mask.
    • Ingress ACL: Select the ACL for the ingress network interface.
    • Egress ACL: Select the ACL for the egress network interface.
  4. Click OK.
  5. In the VE Ports tab, click icon to display the VE Ports tab.

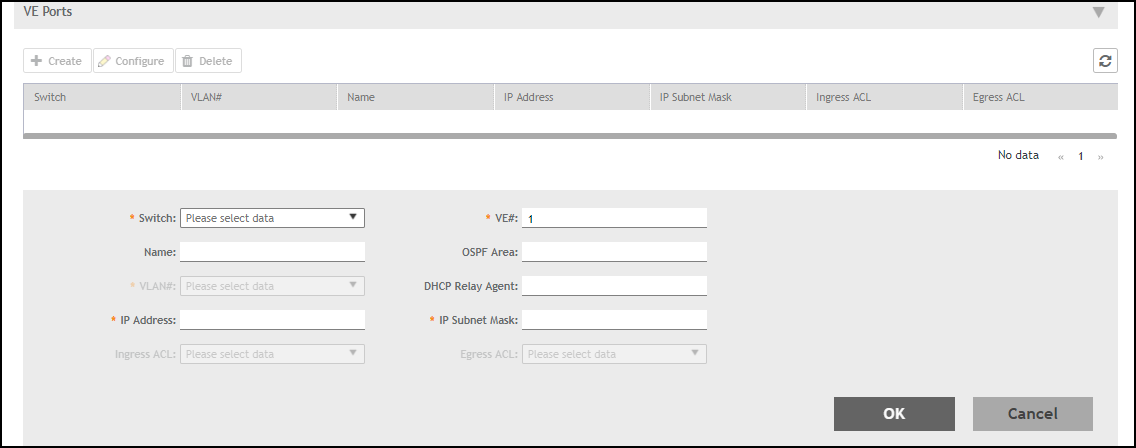

    VE Ports Page

    Complete the following fields:
    • Switch: Select the switch from the list.
    • VE#: Enter the VE number. Range: 1 through 4095.
    • Name: Enter a name.
    • OSPF Area: Enter the OSPF area IPv4 address.
    • VLAN#: Select the VLAN from the list.
    • DHCP Relay Agent: Enter the DHCP relay agent IP address.
    • IP Address: Enter a unicast IP address.
    • IP Subnet Mask: Enter an IP subnet mask.
    • Ingress ACL: Select the ACL for the ingress network interface.
    • Egress ACL: Select the ACL for the egress network interface.
  6. Click OK.
