Moving the Switches between Groups

You can move the switches within any group or sub-group within the system hierarchy to manage it.
  1. On the menu, click Network > Wired > Switches to display the Switches window.
  2. In the Organization tab, select a Domain > Switch Group or Switch Group and select the Switch that you want to move.
  3. Click Move icon to display the Select Destination Switch Group dialog box.

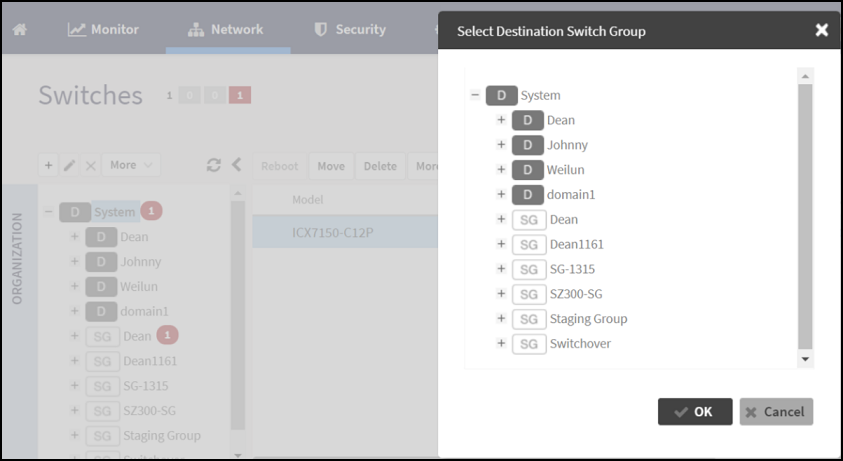

    Moving the switch

    The Select Destination Switch Group dialog box displays the system hierarchy.

  4. Select a Domain > Switch Group or Switch Group under which you want to move the selected switch.
  5. Click OK.
