ICX 7150 Stacking Topologies

The stacks in the following figures show topologies that use only one stacking port per direction. For all stackable ICX 7150 models except the ICX 7150-C10ZP and the ICX 7150-C12P, it is possible to create a stacking trunk of two ports per direction to improve redundancy and bandwidth. For more information, refer to ICX 7150 Stacking Trunks.

The following figures show examples of supported stacking topologies for the ICX 7150-C12P. The linear and ring topologies shown also apply to ICX 7150-C10ZP devices.

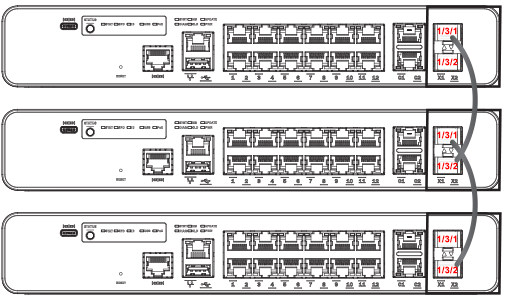

ICX 7150-C12P Linear Stack

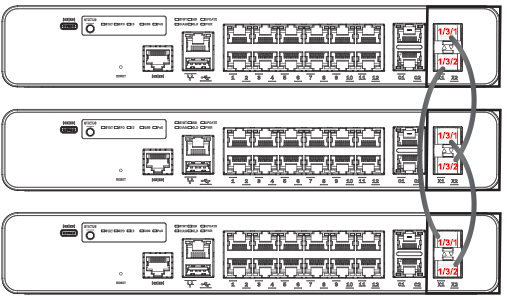

ICX 7150-C12P Stack Ring Topology

The following figures show examples of supported topologies for ICX 7150 24-port models.

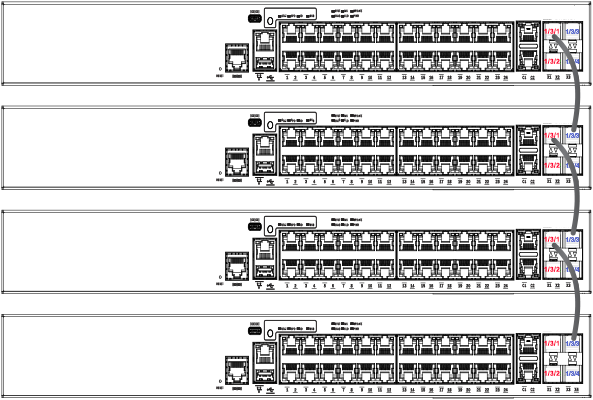

ICX 7150 24-port Model, Linear Stack

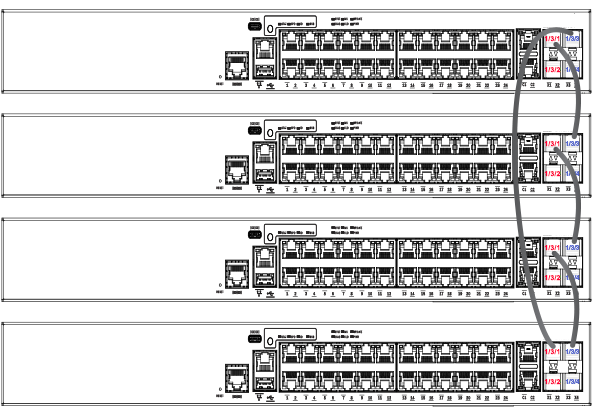

ICX 7150 24-port Stack Ring Topology

The following figures show examples of supported topologies for the ICX 7150-48ZP.

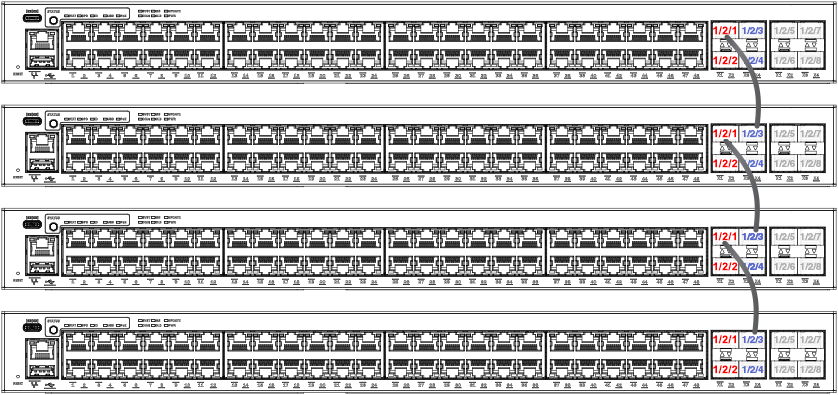

ICX 7150-48ZP Linear Stack

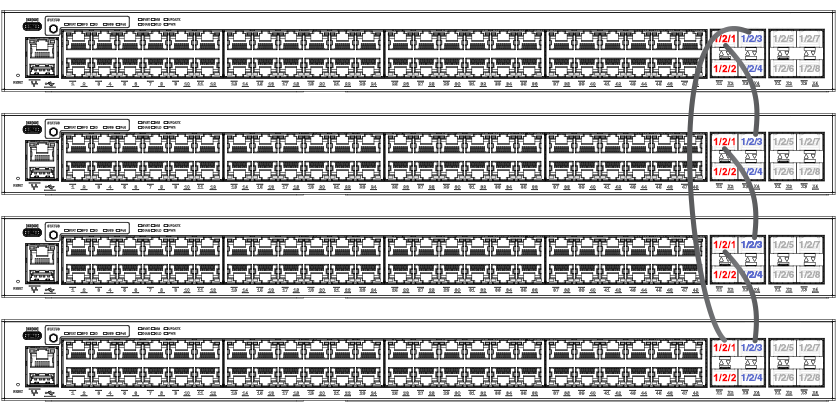

ICX 7150-48ZP Stack Ring Topology

The following figure depicts a two-unit stack linear-topology trunk. All stackable ICX 7150 models except for ICX 7150-C10ZP and ICX 7150-C12P devices support this type of trunk, which improves redundancy and bandwidth. For more information, refer to Configuring Two-unit Stack Linear-topology Trunks.

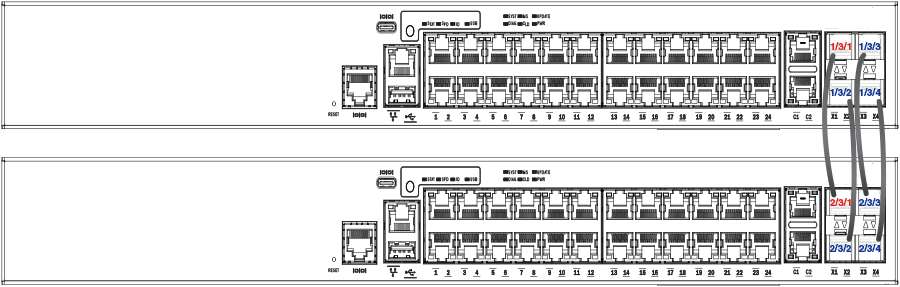

ICX 7150 24-port Two-Unit Stack with Linear-Topology Trunk
