Configuration Example: Single-Hop Static BFD Session for a LAG

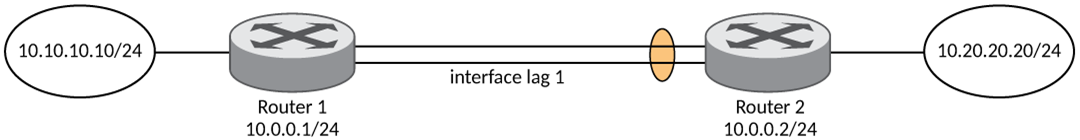

The following figure shows a single-hop
static BFD session for a LAG interface. BFD can monitor the next hop. Micro-BFD is
also
configured. All LAG member links are directly connected between two session endpoints.
The following configuration example configures a single-hop static BFD session for a LAG interface, as illustrated in the preceding figure. Router 1 has a static route to 10.20.20.20/24 with the next hop as 10.0.0.2/24. Router 2 has a static route to 10.10.10.10/24 with the next hop as 10.0.0.1/24. BFD session parameters are also configured. Micro-BFD is enabled.
Router1# configure terminal Router1(config)# interface lag 1 Router1(config-lag-if-lg1)# ip address 10.0.0.1/24 Router1(config-lag-if-lg1)# bfd per-link Router1(config-lag-if-lg1)# exit Router1(config)# ip route 10.20.20.20/24 10.0.0.2 bfd Router1(config)# ip route bfd 10.0.0.2 Router1(config)# ip route bfd 10.0.0.2 min-tx 300 min-rx 290 multiplier 3 Router2# configure terminal Router2(config)# interface lag 1 Router2(config-lag-if-lg1)# ip address 10.0.0.2/24 Router2(config-lag-if-lg1)# bfd per-link Router2(config-lag-if-lg1)# exit Router2(config)# ip route 10.10.10.10/24 10.0.0.1 bfd Router2(config)# ip route bfd 10.0.0.1 Router2(config)# ip route bfd 10.0.0.1 min-tx 300 min-rx 290 multiplier 3
For more information and configuration examples for BFD for IP static routes, refer to BFD for Static Routes.
