Copying Zone Settings from the Inventory Window
Complete the following steps to copy
existing zone settings and create a new zone.
Note: The Copy Zone functionality is supported in SmartZone 3.6.2 and later versions.
Note: The Copy Zone functionality only supports copy zone settings onto same version
SmartZone with same version Zone firmware.
Note: The Copy Zone settings to different
SmartZone will create a new zone with target SmartZones default AP firmware
version. The Copy Zone settings on the same SmartZone will copy the original
zone's AP firmware version.

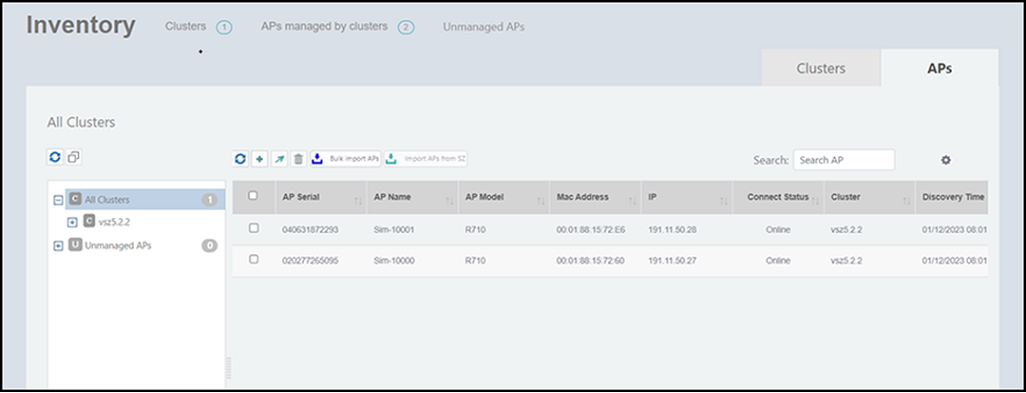

- On the menu, click Inventory.
- In the APs tab, select a zone from which you want to copy the zone settings.
- Click the
icon to copy selected zone settings and create a new zone.
- Complete the following fields to
copy zone settings.
- Cluster: Select the required cluster to which you want to add the zone from the list.
- Domain: Select the required domain to which you want to add the zone from the list.
- New Zone Name: Enter the new zone name.
- Logon ID: Enter the username of the new zone.
- Logon
Password: Enter the password of the new zone.
Note: After successfully onboarding APs to the target AP Zone, the original AP login settings (logon id and password) will be updated to the newly created AP Zone's logon id and password.
- Click Copy.
- Click Ok.
