Creating WLAN for Network Segmentation

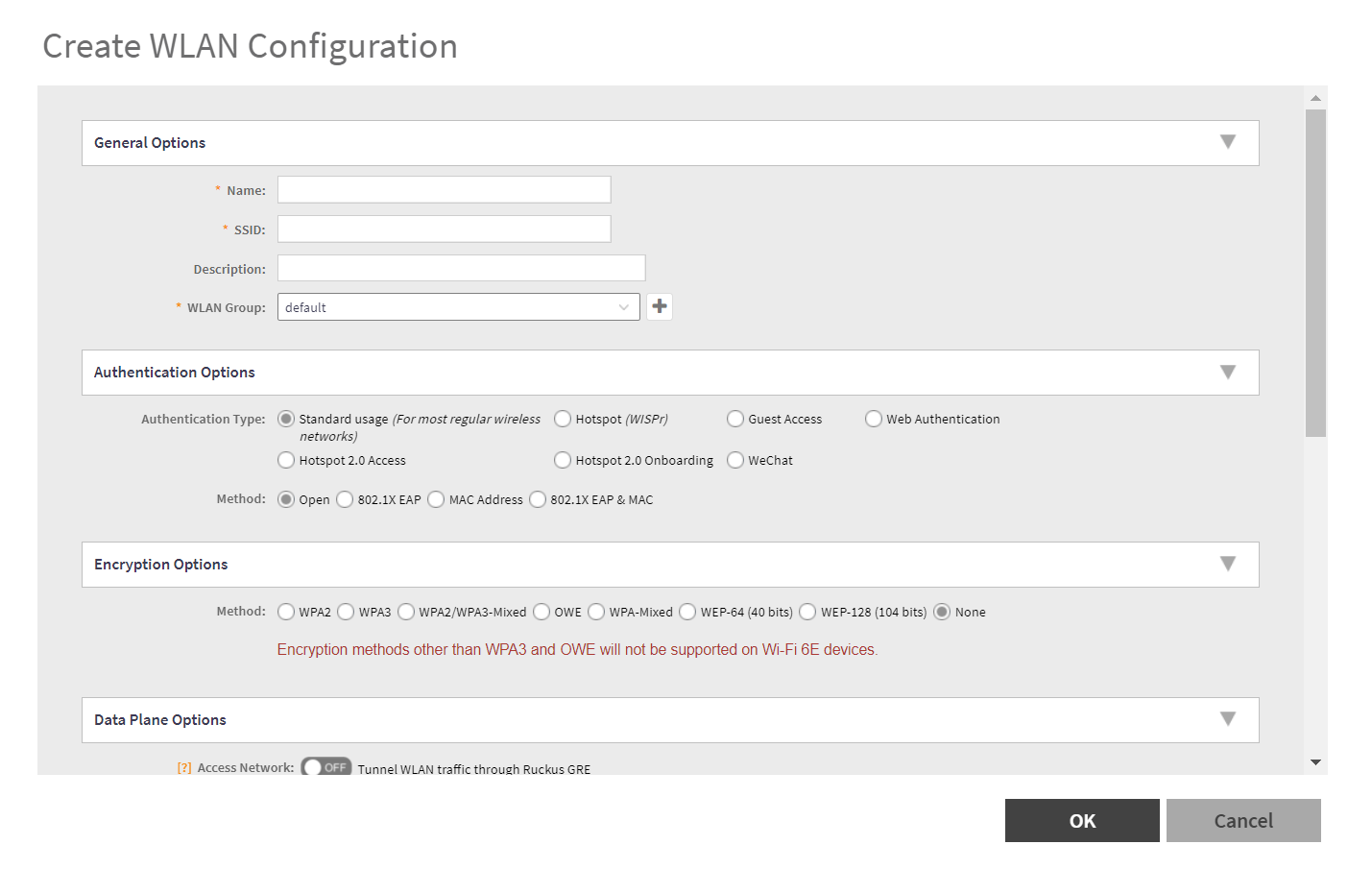

  • Go to the Network> Wireless Lans> System.
  • Click Create .
    .
  • Enter the "Name" and SSID in general options.

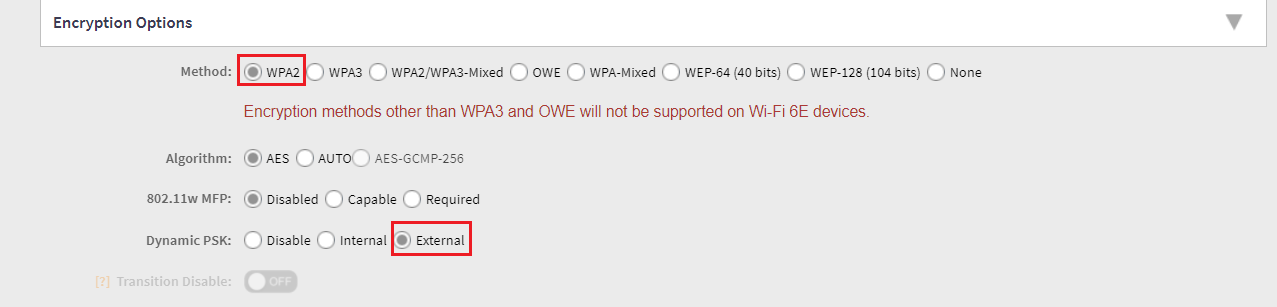

  • Select WPA2 in encryption options.
    • Select "External" in Dynamic DPSK.

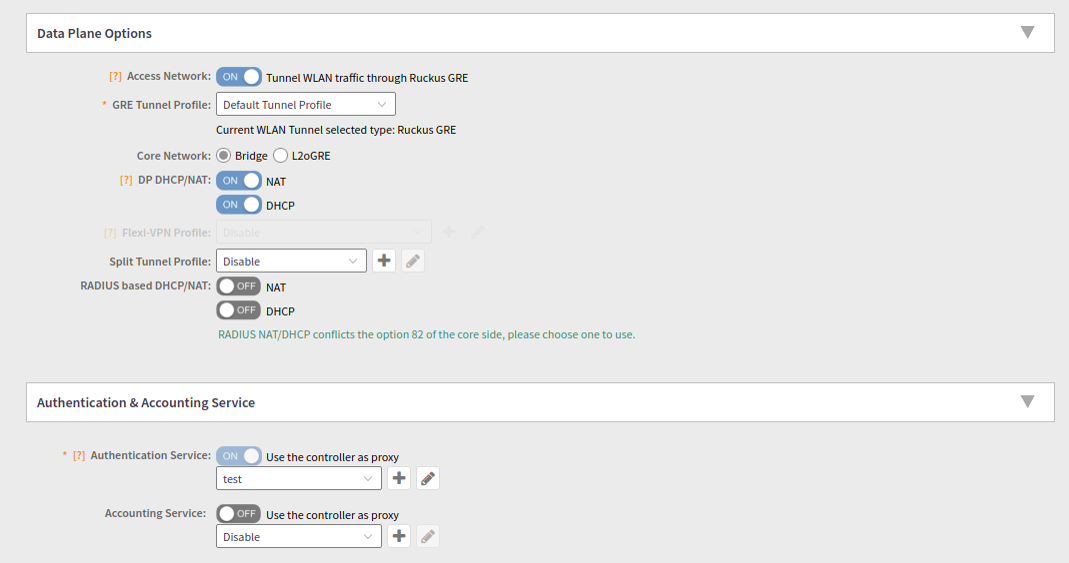

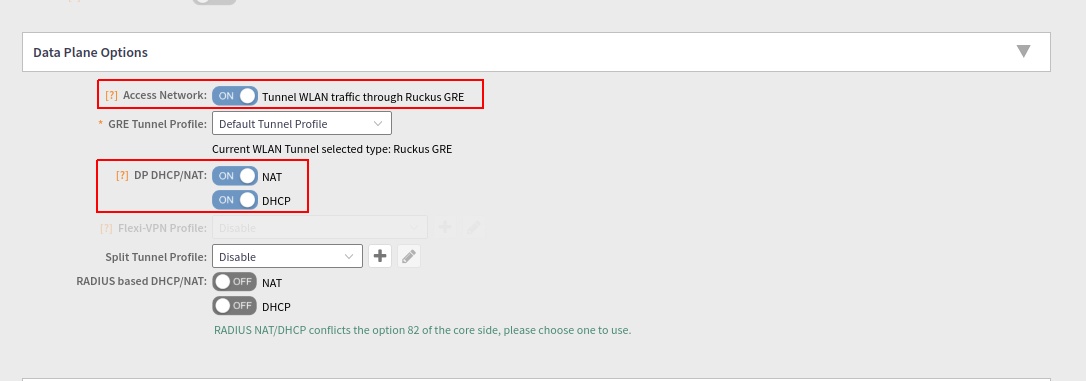

  • In Data plane options, Enable "Access network".
  • Enable NAT.
  • Enable DHCP.
  • Enter GRE tunnel profile with "Ruckus GRE" .
  • Enable Authentication Service .
    Note: WLAN will not be displayed, if any of the above conditions are not met.

    For Authentication and Accounting from SmartZone.

    Note: Refer to RUCKUS SmartZone 300 and Virtual SmartZone-High Scale Administrator Guide, 6.0.0 (Part Number: 800-72580-001 Rev A) and navigate to Services and Profiles > Working with Tunnels and Ports.

Parent topic: Configuring the vSZ Controller to Prepare for Network Segmentation
