Two-Level MCT Configuration Example

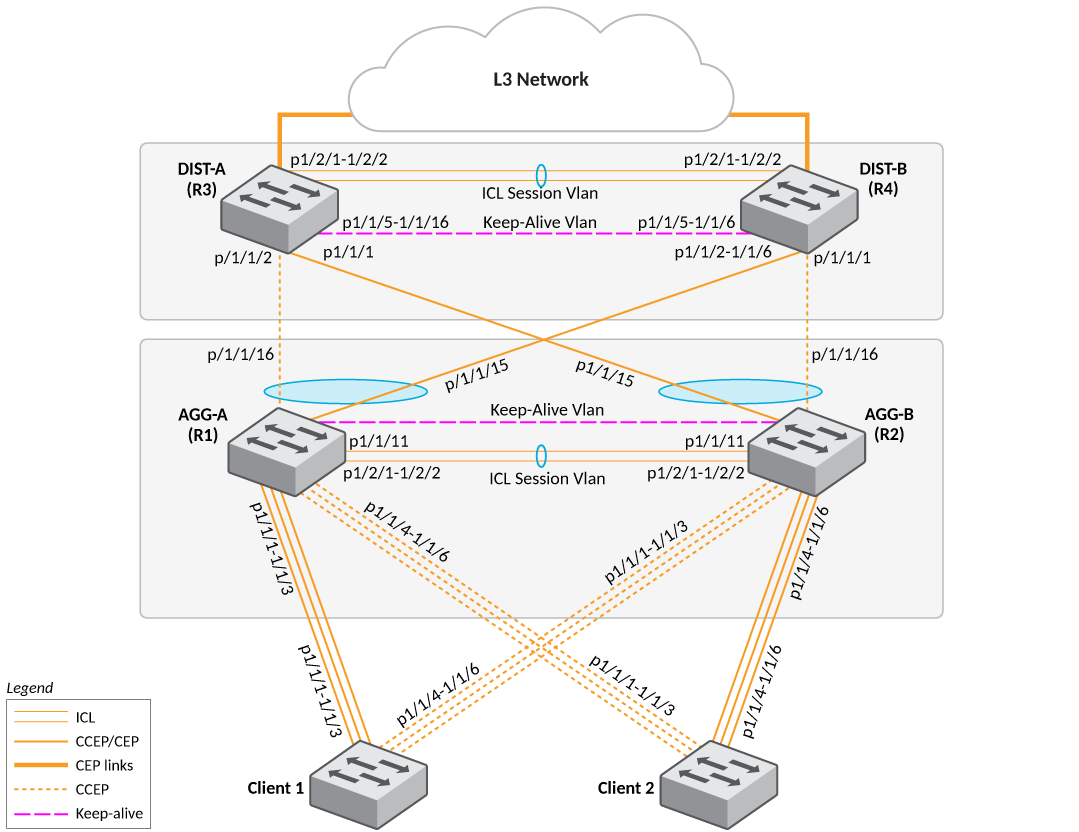

The following figure depicts a two-level MCT configuration. The clients can be server hosts or networking devices. The associated configuration follows.
Note: The LAG IDs
are locally significant only and need not match on the two ends of a LAG.
Note: In a two-level MCT configuration using dynamic LAGs, ensure that the upper and lower
clusters have different Cluster IDs because the Cluster LACP module uses the Cluster
ID as part of the LACPDU system ID.
The client configuration is the same as in the single-level example (refer to Single-Level MCT Configuration Example).
