MCT Configuration Example Using ICX 7850 Stacks as Cluster Peers
Note: This example is using an ICX 7850
stack, but is applicable to all stackable ICX devices that support MCT.

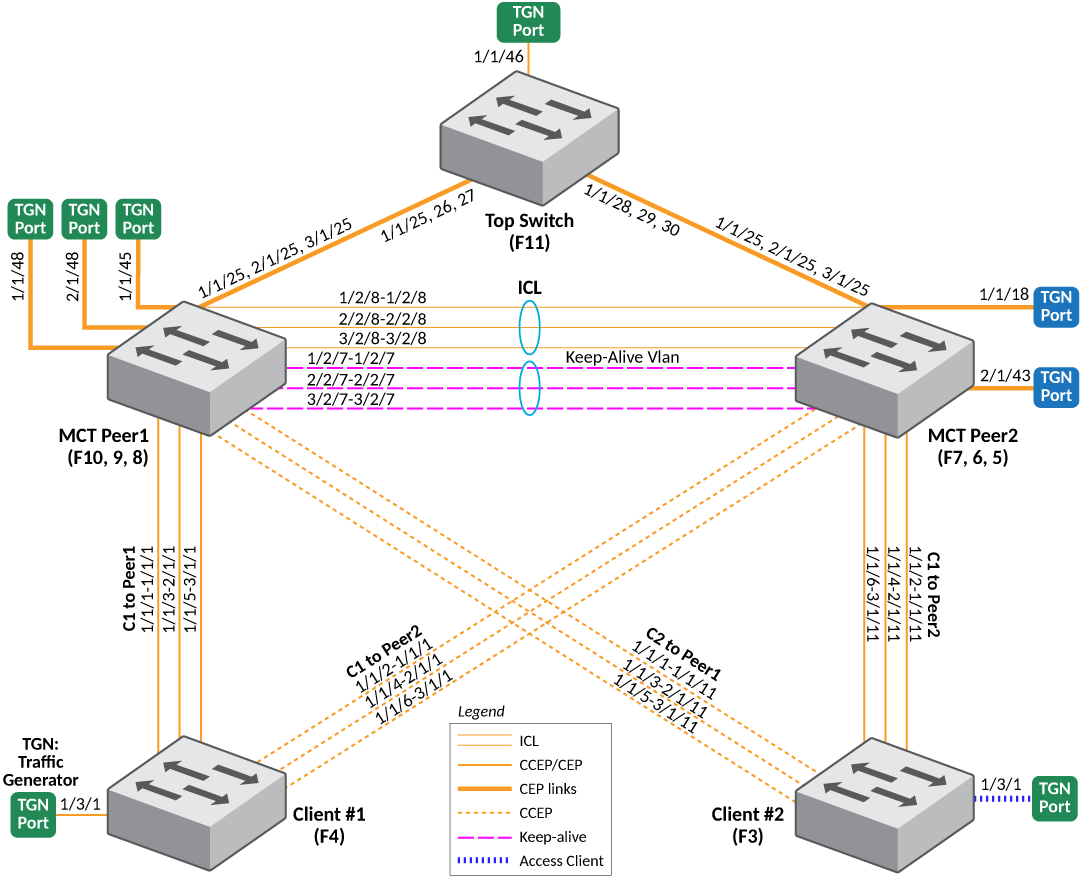

The following figure depicts an MCT configuration with ICX stacks used as cluster peers. The related configuration is included following the figure.
Peer 1 Configuration
P1(config)# show cluster 1000 config
cluster mct_mm_stk 1000
rbridge-id 1019
session-vlan 1000
keep-alive-vlan 1999
icl-fwd-delay 10
icl icl_mm lag 1
peer 11.1.1.2 rbridge-id 1029 icl icl_mm
peer 11.1.1.2 timers keep-alive 30 hold-time 90
deploy
client C1
rbridge-id 11
client-interface lag 11
deploy
client C2
rbridge-id 12
client-interface lag 12
deploy
### Lag interfaces ######
LAG Type Deploy Trunk Intf Port List Logical-block
icl_mm static Y 1 lg1 e 1/2/8 e 2/2/8 e 3/2/8 >>>>>>>>>>>>>ICL
ka dynamic Y 2 lg2 e 1/2/7 e 2/2/7 e 3/2/7 >>>>>>>>>>>>>>>>keepalive link
11 static Y 11 lg3 e 1/1/1 e 2/1/1 e 3/1/1 >>> LAG to client-1
12 dynamic Y 12 lg4 e 1/1/11 e 2/1/11 e 3/1/11 >>> LAG to client-2
### vlans ###
vlan 3001 by port >>>>> mct vlan
tagged ethe 1/1/48 lag 1 lag 11 to 12
!
vlan 1000 by port >>>>>> session vlan
tagged lag 1
!
vlan 1999 by port >>>>>> keep-alive vlan
tagged lag 2
Peer 2 Configuration
P2# show cluster 1000 config
cluster mct_mm_stk 1000
rbridge-id 1029
session-vlan 1000
keep-alive-vlan 1999
icl icl_mm lag 1
peer 11.1.1.1 rbridge-id 1019 icl icl_mm
peer 11.1.1.1 timers keep-alive 30 hold-time 90
deploy
client C1
rbridge-id 11
client-interface lag 3
deploy
client C2
rbridge-id 12
client-interface lag 4
deploy
!
#### Lag configs ####
LAG Type Deploy Trunk Intf Port List Logical-block
icl_mm static Y 1 lg1 e 1/2/8 e 2/2/8 e 3/2/8
ka dynamic Y 2 lg2 e 1/2/7 e 2/2/7 e 3/2/7
11 static Y 11 lg11 e 1/1/1 e 2/1/1 e 3/1/1
12 dynamic Y 12 lg12 e 1/1/11 e 2/1/11 e 3/1/11
### vlan configs ###
vlan 3001 by port
tagged ethe 1/1/18 lag 1 lag 11 to 12
!
vlan 1000 by port
tagged lag 1
!
vlan 1999 by port
tagged lag 2
Client 1 Configuration
### vlan config ### vlan 3001 by port tagged ethe 1/3/1 lag 11 spanning-tree 802-1w ! ### lag config ### LAG Type Deploy Trunk Intf Port List Logical-block c11 static Y 11 lg11 e 1/1/1 to 1/1/6
Client 2 Configuration
### vlan configs ### vlan 3001 by port tagged ethe 1/3/1 lag 12 spanning-tree 802-1w ! ### lag interfaces ### LAG Type Deploy Trunk Intf Port List Logical-block c12 dynamic Y 12 lg12 e 1/1/1 to 1/1/6
