Summary

The summary tab displays device hardware and software attributes as charts.
  1. To view wireless client attributes, click Security > Access Control and select Device Policy. This displays Summary and Profiles options.
  2. Select Summary tab. This displays Summary page.

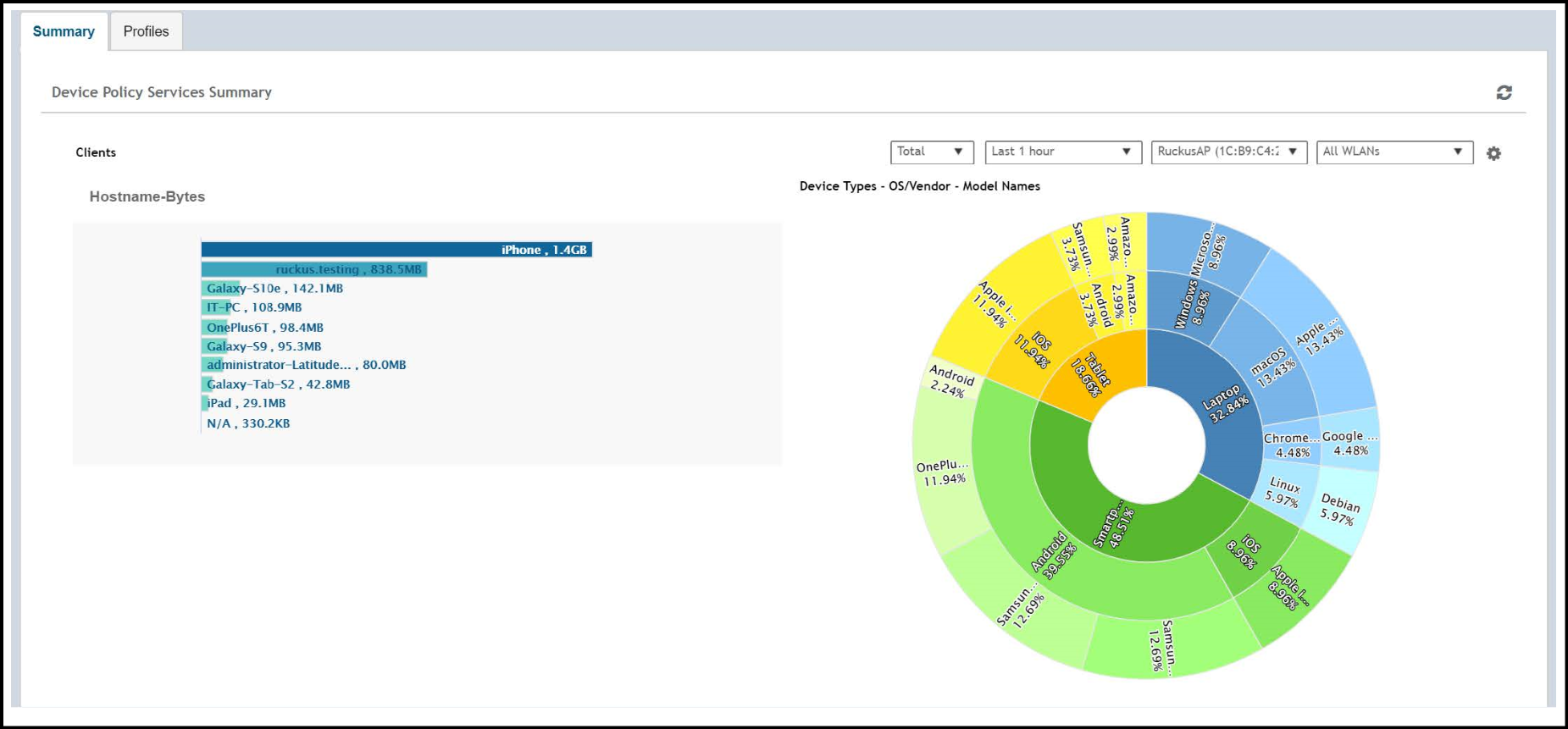

Summary

The graph has 3 zones -

  • Outer zone - Displays the model names of device types.
  • Central zone - Displays information of the operating system used by the device type or the vendor name.
  • Inner Zone - Displays the device type.
  • Core - Displays the number of clients connected. (Hover the mouse to view the information).
The below table lists the filters available in the Summary screen.

Filters

Filter Name Description
Total/2.4GHz/5GHz User can selet the radio options from the drop down menu to generate the report.
Last report/Last 1 hour/Last 24 hours User can select the options from the drop down menu generate the report.

Last report - Accumlates stats of 180 seconds from the Access Point.

Last 1 hour - Accumlates stats of 60 minutes from the Access Point.

Last 24 hours - Accumlates stats of 24 hours from the Access Point.
All APs By default displays details of the Access Point selected from Access Points tab. User can select the option from drop down menu to view a particular AP or all APs.
All WLANs Displays the WLANs associated with each AP. User can select the option from drop down menu to view a particular WLAN or all WLANs.
Settings - Clients User can set the preferred display settings.
Note: The maximum clients displayed is 20.
Host name - Bytes This displays traffic consumed per client.

Parent topic: Creating a Device Policy
