Enabling ECDSA Certificates Support for RADIUS with Transport Layer Security (TLS)

Transport Layer Security (TLS) encrypts communication between a client and server.
To enable TLS encryption from Proxy (SZ Authenticator), perform the following:
  1. Click Security > Authentication > Proxy (SZ Authenticator).
    This displays the Proxy (SZ Authenticator) page.
  2. In the Proxy (SZ Authenticator), click Create.
    This displays Create Authentication Service page.
  3. Navigate to RADIUS Service Options and enable Encryption TLS.
    The ECDSA certificates are enabled for RADIUS server.

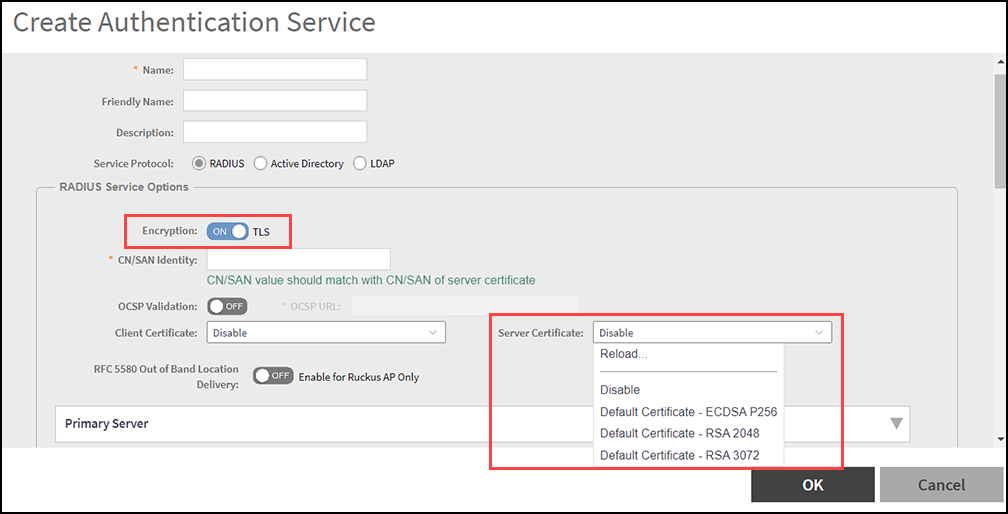

    Encryption TLS_Authentication Service

To enable TLS encryption from Proxy, perform the following:
  1. Click Security > Accounting > Proxy.

    This displays Proxy page.

  2. In the Proxy, click Create.

    This displays the Create Accounting Service page.

  3. Navigate to RADIUS Service Options and enable Encryption TLS.

    The ECDSA certificates are enabled for RADIUS server.

    Note: The ECDSA certificates is available only for RADIUS service protocol option.

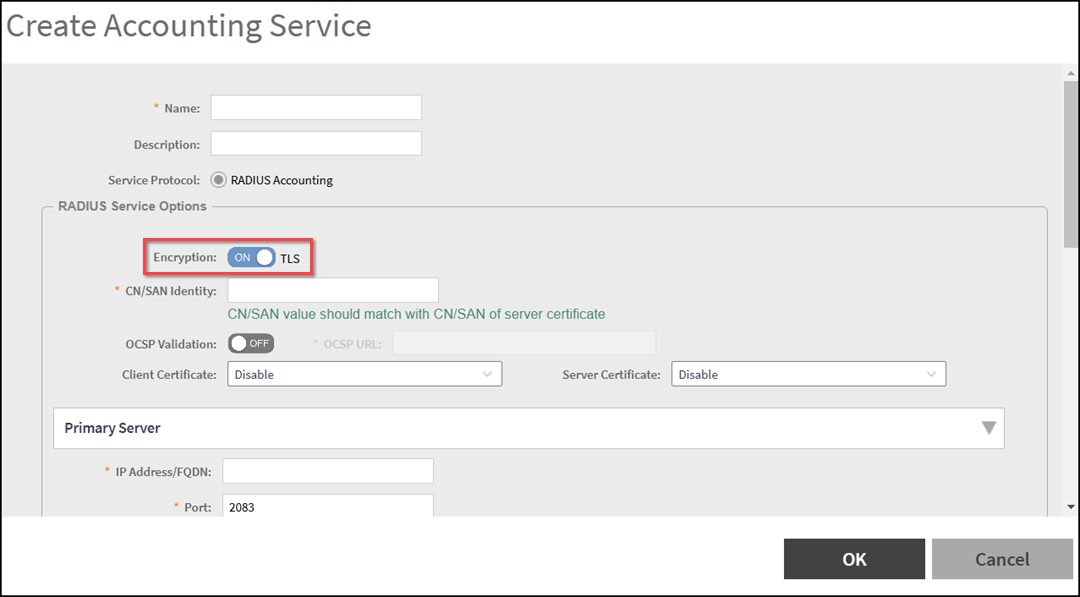

    Encryption TLS_Accounting Service
