Creating a Client Isolation Whitelist

This feature allows the administrator to manually specify a list of approved wired destinations that may be reachable by wireless clients.
  1. Note: The whitelist applies only to destinations that are on the wired network, and it will not work on wireless destinations.
  2. Click Security > Access Control > Client Isolation Whitelist.
    This displays Client Isolation Whitelist page.
  3. Select a zone from the system tree and click Create.
    This displays Create Client Isolation Whitelist page.

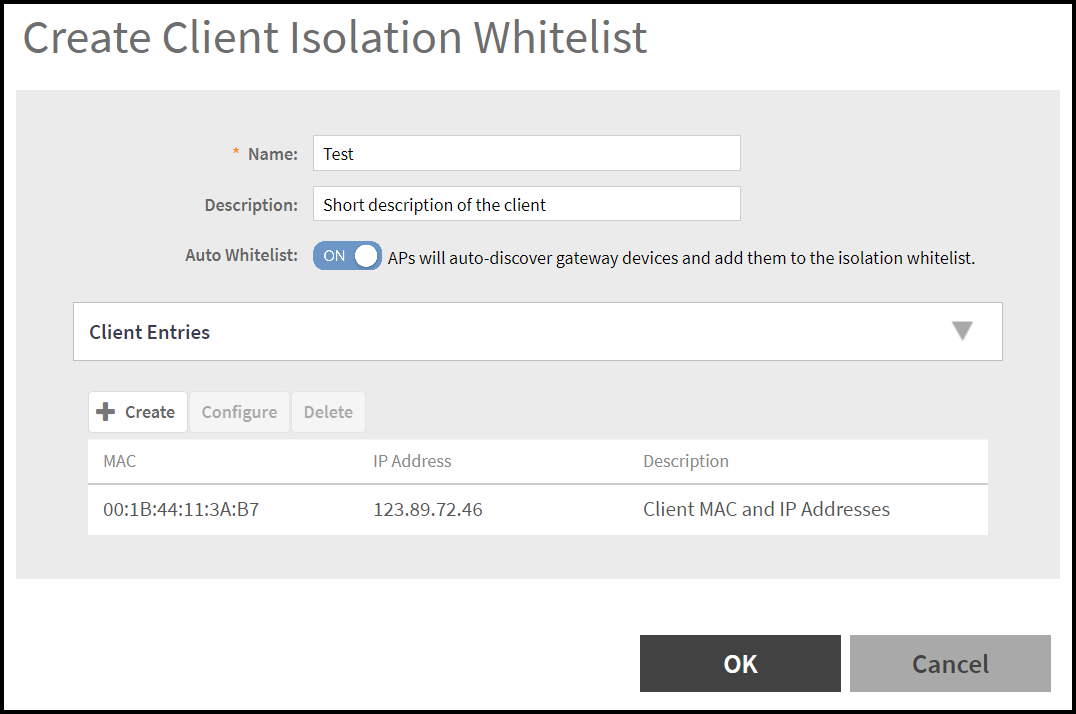

    Create Client Isolation Whitelist

  4. Enter the following:
    1. Name: Enter a name to identify the client.
    2. Description: Enter short description about the client.
    3. Auto Whitelist: Click on the toggle button to enable the AP to scan for devices automatically and include them in the isolation whitelist.
      Note: Each VLAN can have only 16 entries in the whitelist and WLAN can have a maximum of 64 client isolation manual entries.
    4. Client Entries: To manually add the clients to the list, click Create and provide client information such as MAC address (mandatory), IP address and Description.
    5. Click OK.
You have created the list of whitelisted clients that can access the network.

Note: Creating Ethernet Port Profiles. Creating an Ethernet port profile (securing secondary wired port), port types explained

Click to play video in full screen mode.

Parent topic: Blocking Clients
