Creating a Guest Access Portal

Using the controller's Guest Access features, you can provide visitors to your organization limited access to a guest WLAN with configurable guest policies. The following sections describe how to configure guest WLANs and access policies that control guest use of your network.
Each guest WLAN must be associated with a Guest Access service portal, which defines the behavior of the guest WLAN interface. Follow these steps to create a guest access service.
  1. On the menu, click Services > Hotspots & Portals > Guest Access to display the Guest Access window.
  2. In the Organization tab, select the zone for which you want to create the guest access portal.
  3. Click Create, to display the Create Guest Access Portal dialog box.

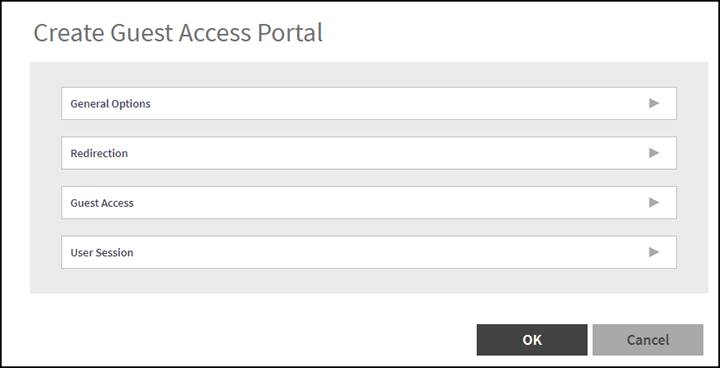

    Creating a Guest Access Portal

  4. Complete the following fields:
    1. General Options

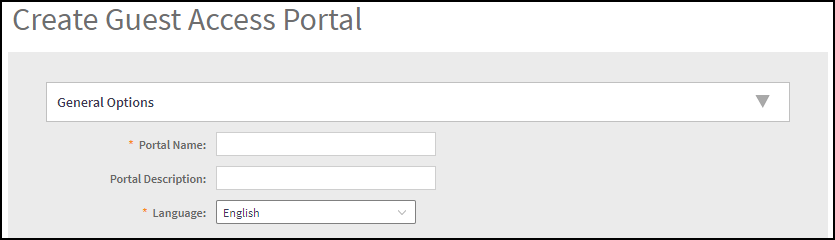

      Create Guest Access Portal - General Options

      • Portal Name: Type a name for the guest access service portal that you are creating.
      • Portal Description: Type a short description of the guest access service portal.
      • Language: Select the display language to use for the buttons on the guest access logon page.
    2. Redirection: Select where to redirect the user after successfully completing authentication.

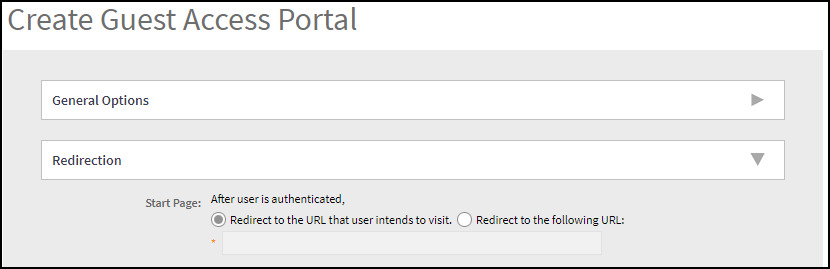

      Create Guest Access Portal - Redirection

      • Redirect to the URL that the user intends to visit: Allows the guest user to continue to their destination without redirection.
      • Redirect to the following URL: Redirects to the specified domain name or IP address. If the guest access portal's guest authentication is Always Accept and the guest access does not enable the Terms and Conditions, after 3 seconds, the client or the guest is redirected to the start URL or the original URL.

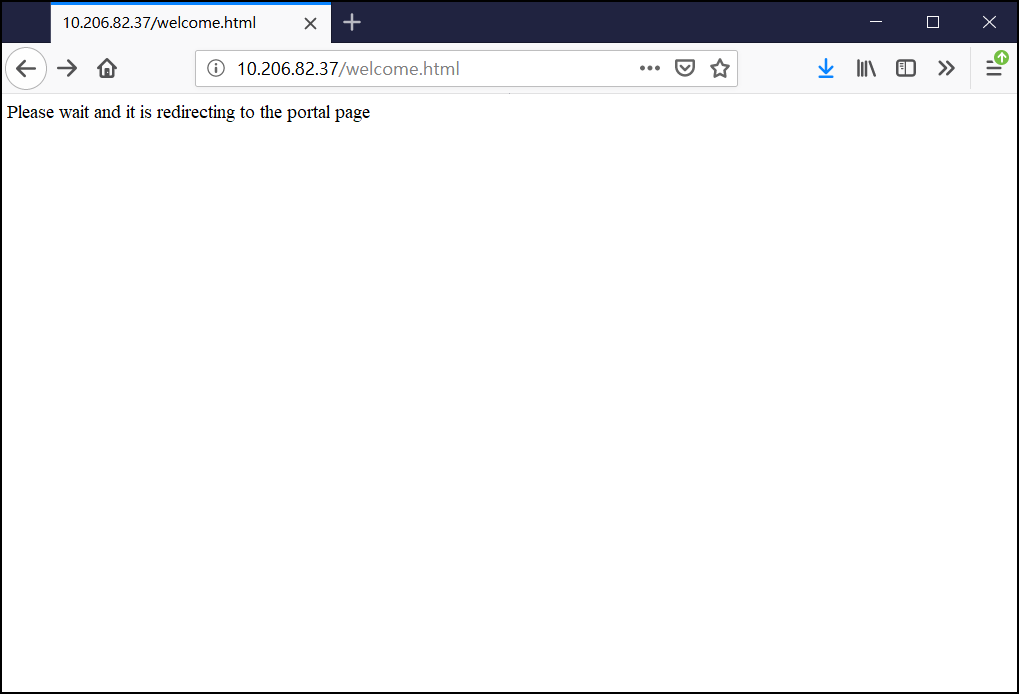

        Redirecting Page

    3. Guest Access

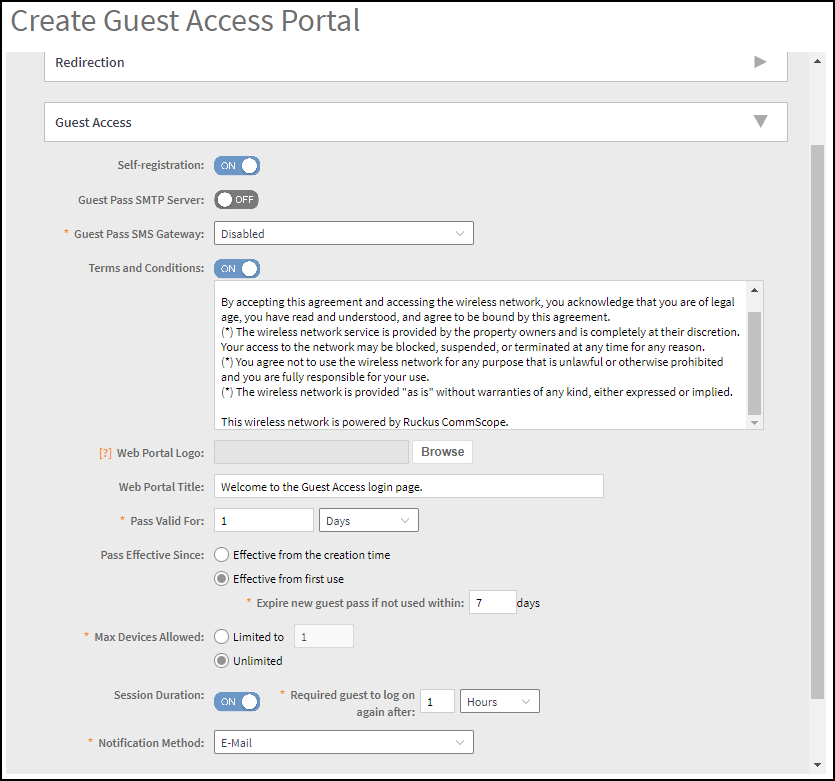

      Create Guest Access Portal - Guest Access

      • Self Registration: Enable the option to register for the guest pass.
      • Guest Pass SMTP Server: This feature is only available if the Self-registration feature is enabled. Enable the option to receive the copy of guest pass by email.
      • Guest Pass SMS Gateway: You can deliver the guest pass to the user using Short Message Service (SMS). But first you need to configure an SMS server. If you previously configured an SMS server, you can select it here or you can select Disable.
      • Terms and Conditions: Users should read and accept terms and conditions prior to use, Show Terms and Conditions check box. This displays the default terms of use text. Edit or leave the text unchanged to use the default content.
      • Web Portal Logo: By default, the guest hotspot logon page displays the RUCKUS logo. To use your own logo, click the Browse button, select your logo Web Portal Logo (recommended size is 138 x 40 pixels, maximum file size is 20KB), and then click Open.
      • Web Portal Title: Type your own guest hotspot welcome text or accept the default welcome text (Welcome to the Guest Access login page).
      • Pass Valid For: This feature is only available if the Self-registration feature is enabled. Set the guest pass validity. The validity time can be set in hours, days, and weeks.
      • Pass Effective Since: This feature is only available if the Self-registration feature is enabled. Set the guest pass validity period by selecting one of the following options:
        • Effective from the creation time: This type of guest pass is valid from the time it is first created to the specified expiration time, even if it is not being used by any end user.
        • Effective from first use: This type of guest pass is valid from the time the user uses it to authenticate with the controller until the specified expiration time. An additional parameter (Guest Pass will expire in X days) can be configured to specify when an unused guest pass will expire regardless of use. The default is 7 days.
        • Expire guest pass if not used within [ ] days: If you want this guest pass to expire if it is unused after you generated it, type the number of days in the box (maximum value is 365 days).
      • Max Devices Allowed: This feature is only available if the Self-registration feature is enabled. Set the number of users that can share this guest pass.
        • Limited to [ ]: If you want a limited number of users to share this guest pass, click this option, and then type the number in the box.
        • Unlimited: If you want an unlimited number of users to share this guest pass, click this option.
        • Session Duration: This option is available only if the Unlimited option is enabled. Enter the session time in the Required guest to log on again after field. The session time can be set in minutes, hours, days, and weeks. This option controls the session time for devices. When the session time expires, the user must log in again. This option is enabled by default. To disable it, turn it OFF. When this feature is disabled, connected users will not be required to log in again until the guest pass expires.
      • Notification Method: This feature is only available if the Self-registration feature is enabled. Select how the guest pass must be notified to the user. For example: E-Mail, Mobile, and Mobile and E-mail.
    4. User Session

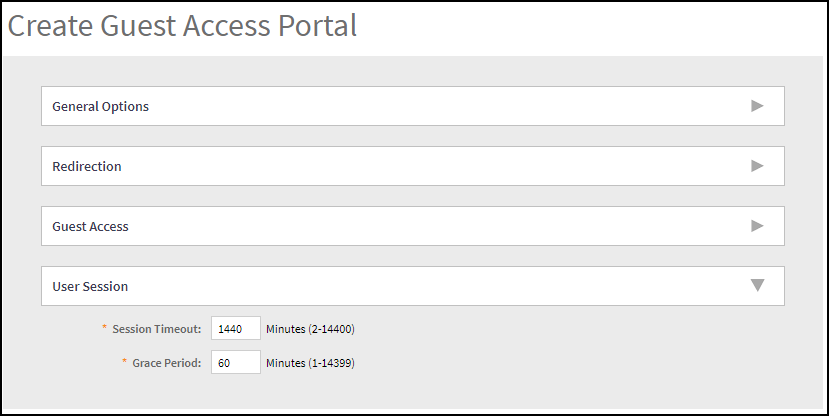

      Create Guest Access Portal - User Session

      • Session Timeout: Specify a time limit after which users will be disconnected and required to log on again.
      • Grace Period: Set the time period during which clients will not need to re-authenticate after getting disconnected from the hotspot. Enter a number (in minutes) between 1 and 14399.
  5. Click OK.
Note: You can also edit, clone and delete a guest access portal by selecting the options Configure, Clone and Delete respectively, from the Guest Access window.
