Testing SZ Admin AAA Servers

To ensure that the controller administrators are able to authenticate successfully with the RADIUS server type that you selected, RUCKUS strongly recommends testing the AAA server after you set it up.
The test queries the RADIUS server for a known authorized user and return groups associated with the user that can be used for configuring roles within the controller.
  1. Select Administration > Admins & Roles > AAA.
  2. Select the created AAA server and click Test AAA.
    An example for testing a RADIUS server is shown in the following figure.

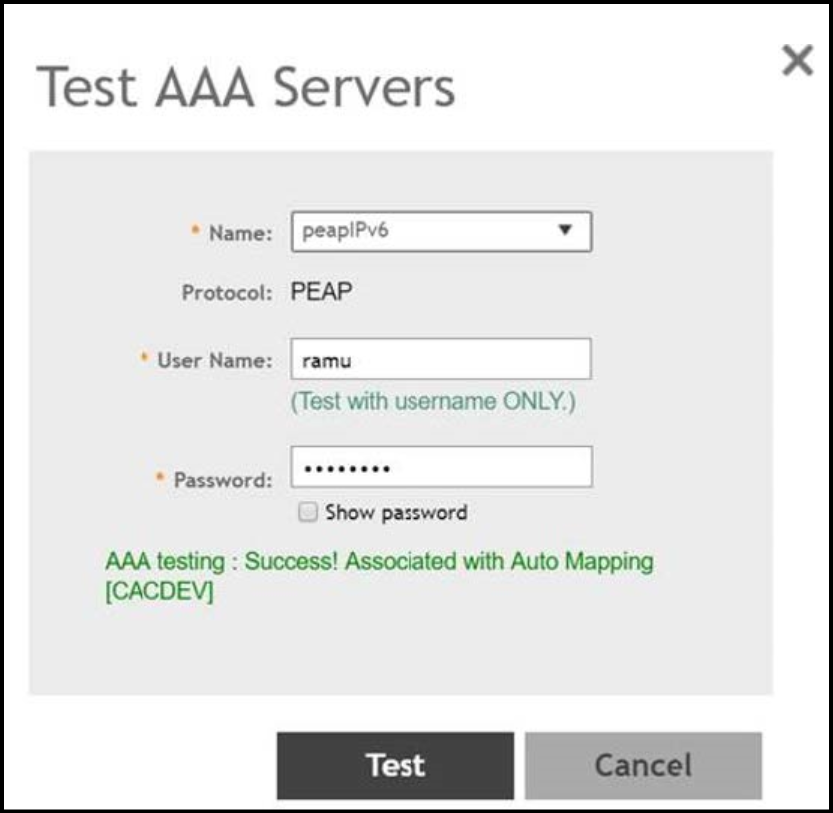

    Testing an AAA Server: RADIUS

    The Protocol field is displayed only for RADIUS server that depends on the SZ AAA server configuration.
  3. In the Name field, select the AAA server that you created.
  4. In the User Name field, enter an existing user name that is associated to a user group.
    Note: For TACACS+ server, test with username appended with configured service.
  5. In the Password field, enter password for the user name you specified.
  6. Click Test.
If the username is associated with a user group, the following message is displayed: AAA testing: Success! Associated with Auto Mapping. If the username is not associated with any user group, the following message is displayed: "AAA testing: Success! No SZ User or Default role mapping associated".
Parent topic: Configuring SZ Admin AAA Servers
