Configuring ECDSA 3K and Keys at Zone Level

To configure ECDSA 3K certificates, enable the SSH/TLS Key Enhance Mode.
By default, the SSH/TLS Key Enhance Mode is disabled.
This configuration is available only with new installation and upgraded versions of the Access Points. The ECDSA 3K certificates are available only after enabling the SSH/TLS Key Enhance Mode. To generate and share the ECDSA 3K certificates, AP should join and be a part of this zone.
To enable SSH/TLS Key Enhance Mode at the zone level, perform the following:
  1. Click Network > Wireless > Access Points
    This displays the Access Points page.
  2. In the system tree, click Create Domain/Zone/Group (+) icon.

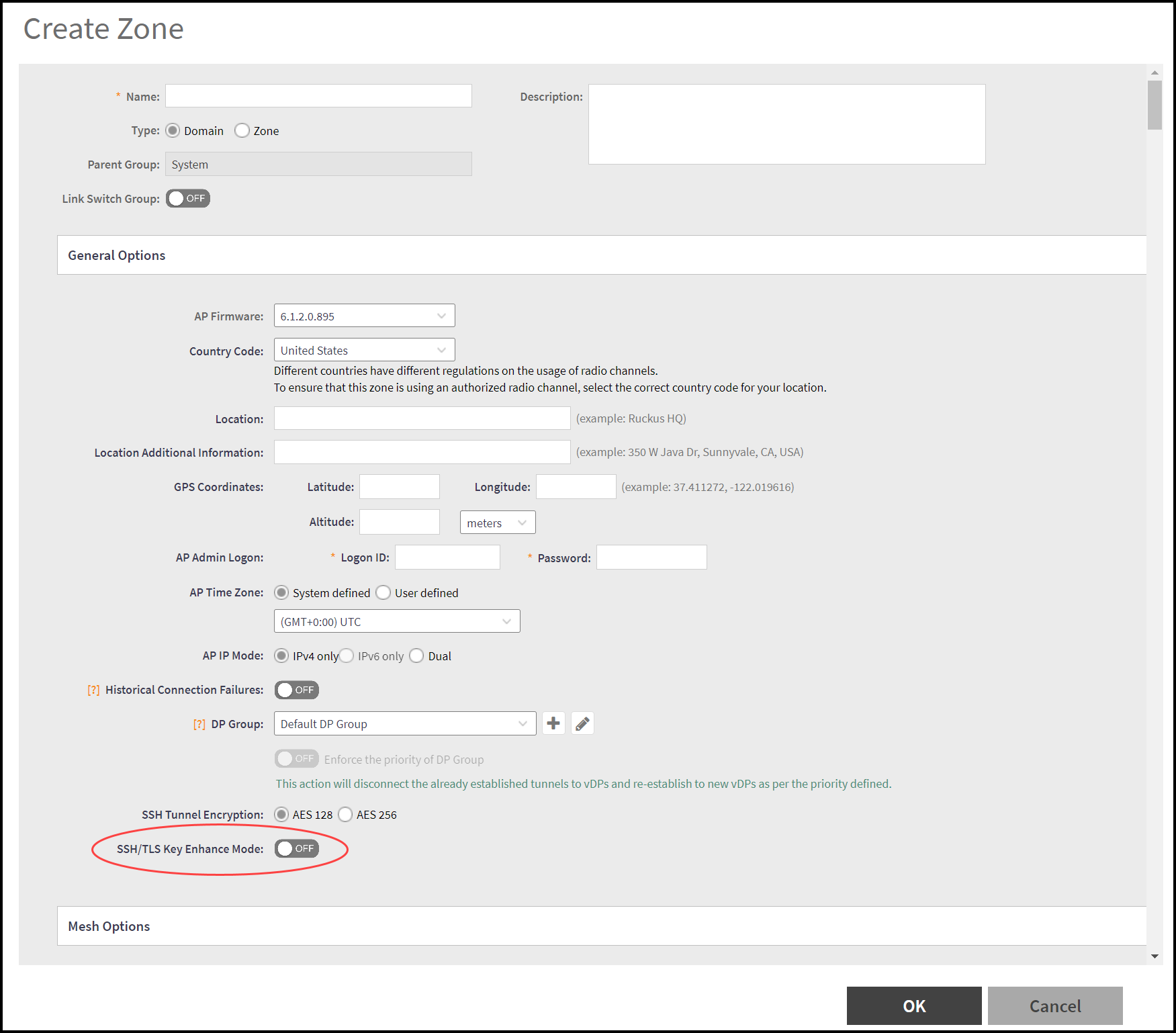

    This displays the Create Zone page.
  3. In the Create Zone page, navigate to General Options section and enable the SSH/TLS Key Enhance Mode.

    SSH/TLS Key Enhance Mode

    After enabling the SSH/TLS Key Enhance Mode, navigate to Administration > System > Certificates > Certificate Mapping to map the server's ECDSA 3K certificates.
Parent topic: ECDSA 3K
