VLAN Precedence

To create a VLAN Precedence, perform the following:
  1. Click Security > Access Control > VLAN and select VLAN Precedence.
    The VLAN Precedence page is displayed.
  2. Click Create.
    The Create Precedence Profile page is displayed.

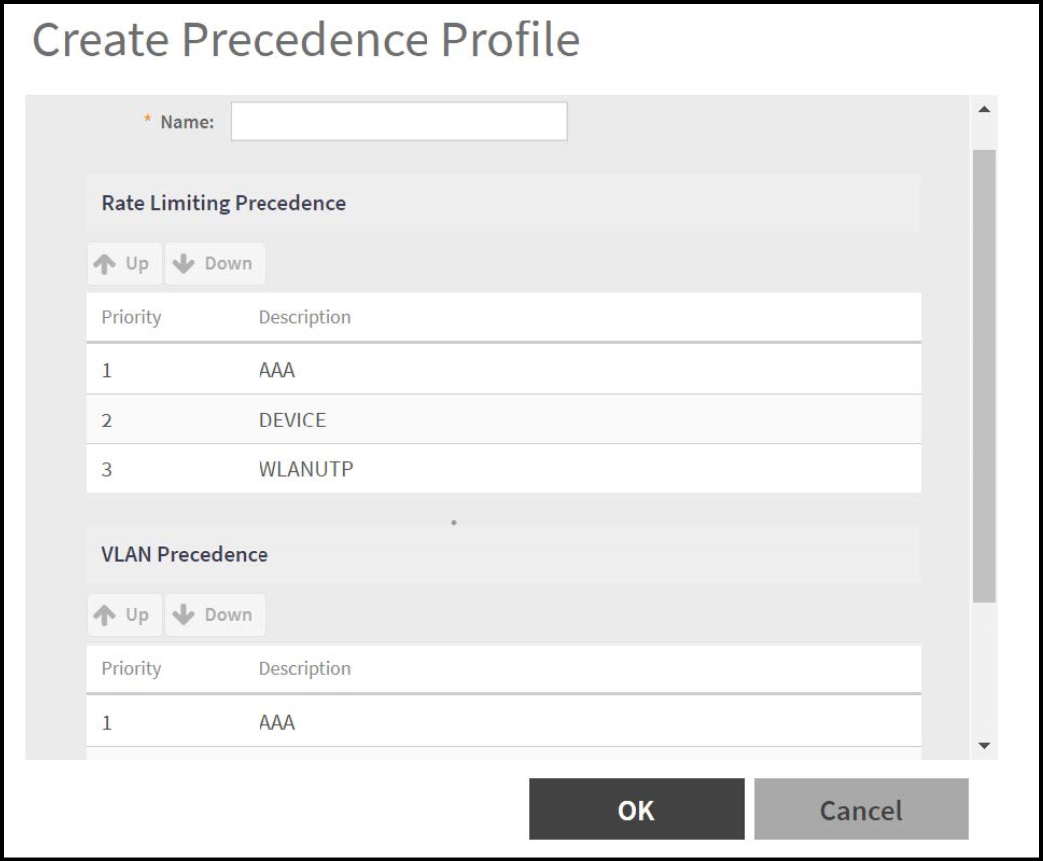

    Create Precedence Profile

  3. Configure the following:
    1. Name: Enter a name to identify the profile.
    2. Rate Limiting Precedence: Use the Up and Down options to set the rate limit priority.
      Note: When SSID Rate Limiting (restricts total usage on WLAN) is enabled, per-user rate limiting is disabled.
    3. VLAN Precedence: Use the Up and Down options to set the VLAN priority.
    4. Click OK.
    Note: Each VLAN has a default precedence.
You have created a VLAN Precedence profile.
Note: You can also edit, clone and delete a profile by selecting the options Configure, Clone and Delete from the VLAN Precedence tab.
